Planta Seed PL-LIN-RW 560x20 HV
EAN 6942736275151
Product family features
- 5-year system warranty when paired with INVENTRONICS constant current LED power supplies
- 120° viewing angle per module
- Available module length: 1 ft/280 mm or 2 ft/560mm
- CE certified

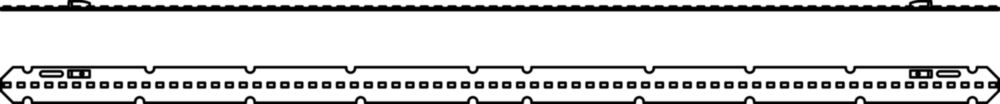

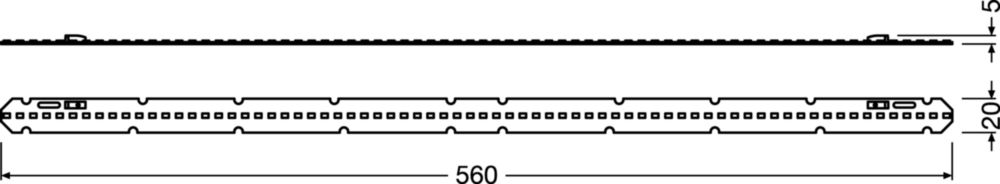

- Dimensions: 280 mm or 560 mm x 20 mm x 6 mm
- Dimmable by INVENTRONICS LED driver
- For operation with suitable OPTOTRONIC control gears
- Geometry according to Zhaga Book 7 L28W2 and L56W2
- Lifetime (L85 B10): up to 60,000 h (temperature at tc = 80 °C)
- Max. working voltage: 250 V
- Max. working voltage: 60 V (to be operated only on SELV LED control gear)
- PF up to 80 �mol/s (@rated conditions)
- Adjustable luminous flux, efficacy and lifetime
- Future-proof thanks to Zhaga conformity
- High homogeneity thanks to small LED pitch
- Optimized LED layout to deliver uniform light output
- SELV or non-isolated modules for easy luminaire design
- Type of protection: IP00
- Fresh food counters
- Greenhouse
- Horticulture application
- Light walls
- Linear
- Special purpose LED strip for fresh food counters lighting
- Suitable for indoor applications
- Suitable for operation on SELV and non-isolated systems
