Inventronics OTI DX 50/220-240/1A4 NFC

Product family features

• Supply voltage: 220…240 V
• Line frequency: 0 Hz | 50 Hz | 60 Hz
• Line voltage: 198…264 V
• Lifetime: up to 100,000 h
• Type of protection: IP20

Product family benefits

• Versatile DALI window driver due to flexible output characteristic
• Integrated DEXAL Bus power supply for sensors and wireless radios
• Simplified luminaire design for wireless lighting control system and sensors
• Locking and unlocking of luminaire/driver data
• Advanced luminaire/driver data (power, energy, operating hours…) for analytics
• D4i certified incl. Parts 250, 251, 252, 253
• Easy and fast output current setting via NFC
• Very high efficiency
• High-quality dimming of 1…100 % by amplitude dimming

Versatile scope of application due to DALI Technology:

• Suitable for emergency Installations (acc. to EN 60598-2-22 and IEC 61347-2-13,appendix J) thanks to DC detection (0 Hz, pulsating DC), on/off switchable
• Feedback of power consumption and operating hours (Fit for SMART GRID)
• Suitable for buildings according to EPBD/BREEAM/LEED due to automatic Constant Lumen Output setting

Areas of application

• DEXAL, easy connection to different partner BMS systems
• Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
• Suitable for use in luminaires with flexible current setting
• Suitable for indoor SELV installations
• Suitable for luminaires of protection classes I and II
• Suitable for downlights, spotlights and LED panels
• Installation via Cable Clamp Kit possible (depending on version of product)

Ecodesign regulation information:Intended for use with LED modules.The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.

Output power	15…55 W
Output current	600…1400 mA
Isolation	SELV
Protection (IP)	IP20
Programming interface	DALI, NFC
Emergency lighting	Yes

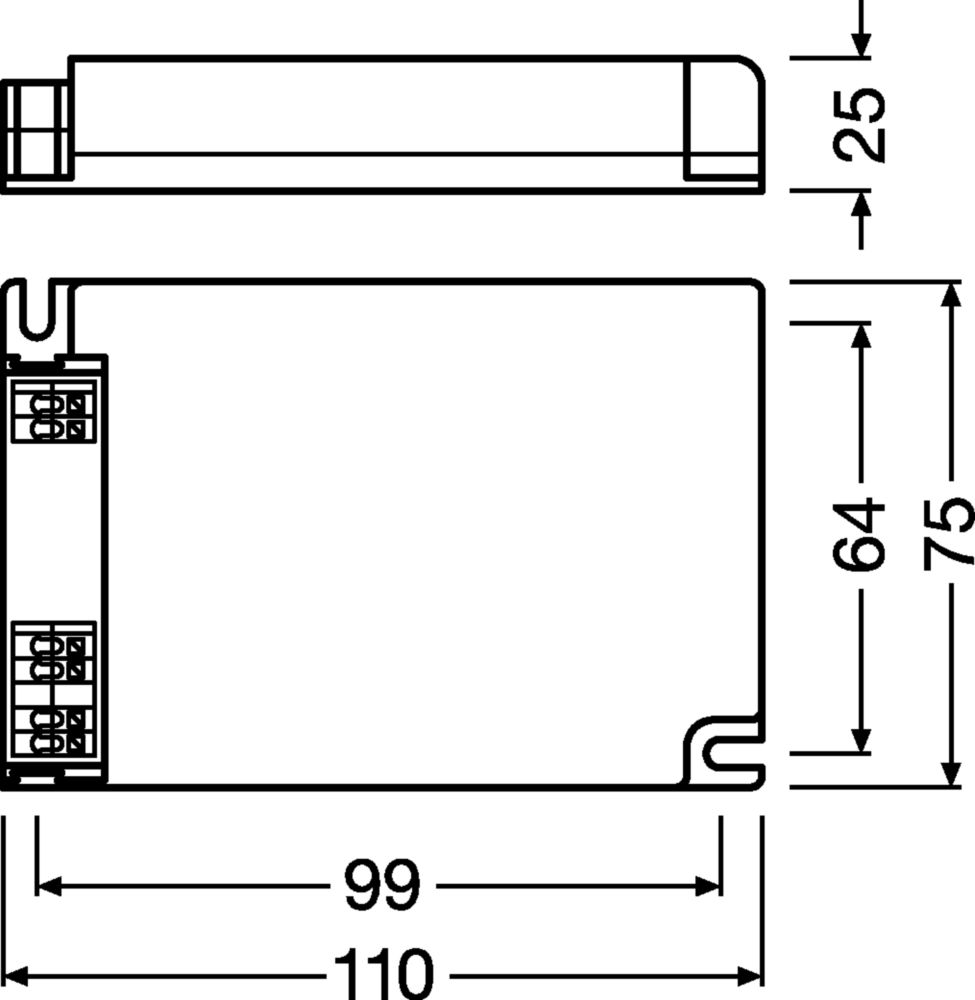

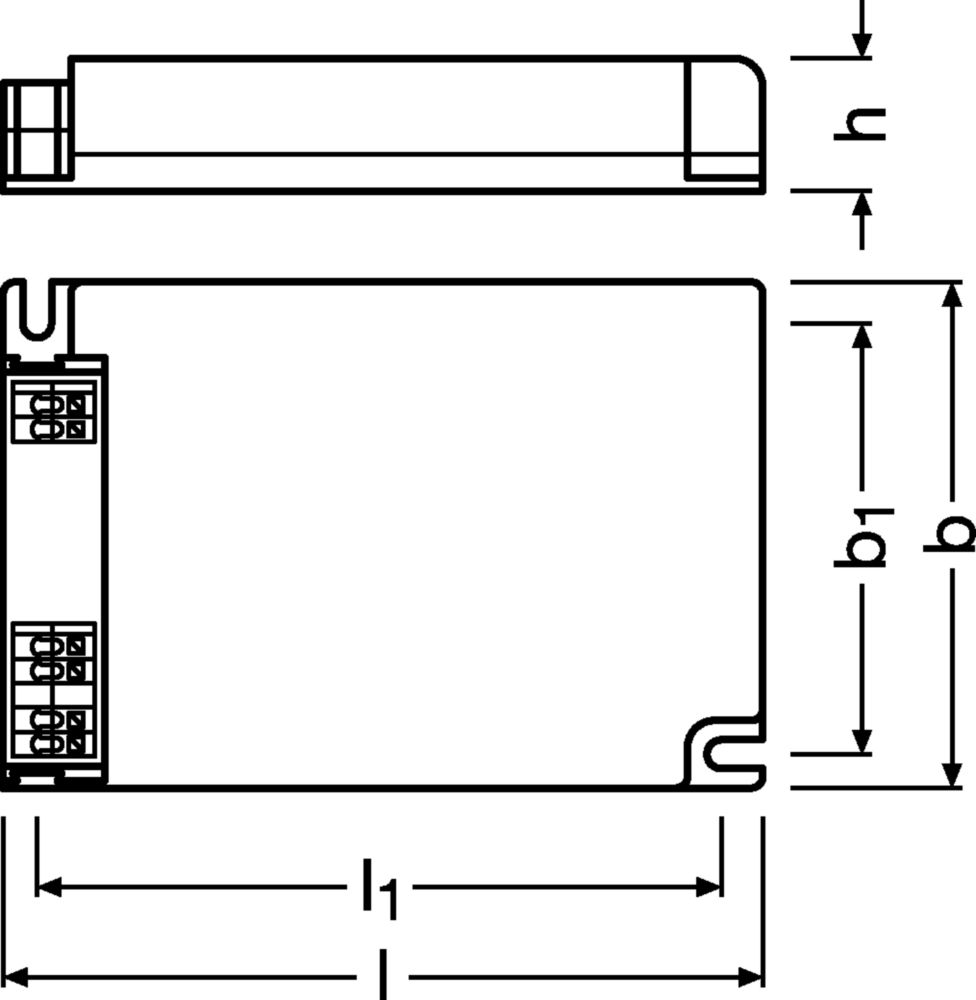

Dimensions	110 × 75 × 25 mm (l x w x h)
Certificates	ENEC 10, EL, CE, DALI-2, CCC, D4i
