Inventronics OTI DX 35/220-240/700 NFC L

Product family features

• Line frequency: 0 Hz | 50 Hz | 60 Hz
• Supply voltage: 220…240 V
• Constant Lumen Output (CLO)
• Monitoring of luminaire operating parameters
• SELV driver

Product family benefits

• D4i certified SELV DX LED driver up to 80 W due to flexible output characteristic
• Integrated DEXAL Bus power supply for sensors and wireless radios
• Simplified luminaire design for wireless lighting control system and sensors
• Locking and unlocking of luminaire/driver data
• Advanced luminaire/driver data (power, energy, operating hours…) for analytics
• Following DiiA Specification Parts -250, -251, -252 and -253
• Fully programmable via T4T software (NFC, DALI Interface)
• Very high efficiency
• Wide operating range up to 2100 mA

Areas of application

• Linear lighting for office, education, industry, storage areas and retail
• DEXAL, easy connection to different partner BMS systems
• Suitable for luminaires of protection class I

Ecodesign regulation information:Intended for use with LED modules.The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.

Output power	4…37 W
Output current	200…700 mA
Isolation	SELV
Protection (IP)	NONE
Programming interface	DEXAL, NFC
Emergency lighting	Yes

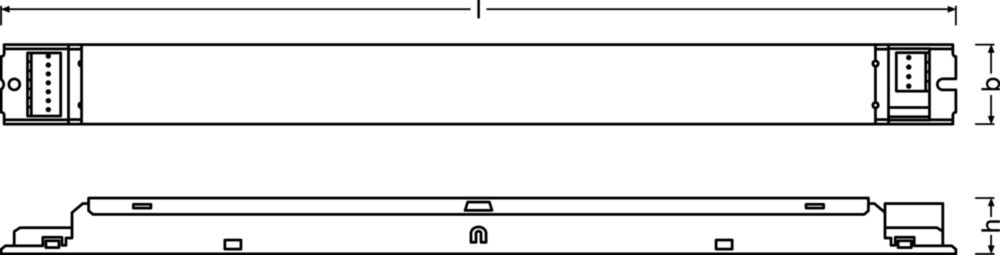

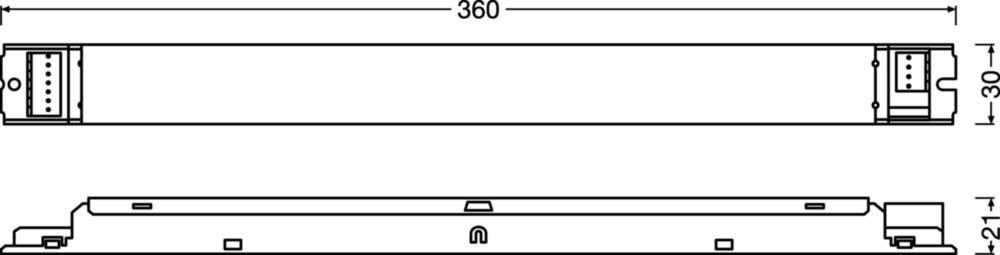

Dimensions	360 × 30 × 21 mm (l x w x h)
Certificates	CE, EL, ENEC, CCC, BIS, RCM
