OTI DX 150/220-240/850 D NFC IND L

EAN: 4062172050920
52,09 € (+ 20% VAT)

You need to register / log in to buy
Sales unit
  • 1 pcs
Product family features
  • Line frequency: 0 Hz | 50 Hz | 60 Hz
  • Output power: 150 W
  • Monitoring of luminaire operating parameters
  • Supply voltage: 220…240 V
  • Available with output current range: up to 850 mA
  • Constant Lumen Output (CLO)
  • Integrated customizable thermal management (Driver Guard)
  • Non-isolated drivers
Product family benefits
  • Versatile non-isolated DEXAL LED driver up to 150 W due to flexible output characteristic
  • Integrated DEXAL Bus power supply for sensors and wireless radios
  • Simplified luminaire design for wireless lighting control system and sensors
  • Locking and unlocking of luminaire/driver data
  • Advanced luminaire/driver data (power, energy, operating hours…) for analytics
  • Prepared for DiiA Specification Parts -250, -251, -252 and -253
  • Fully programmable via T4T software (NFC, DALI Interface)
  • Lifetime: up to 100,000 h (temperature at Tc = 75 °C, max. 10 % failure rate)
  • High light quality: 1…100% amplitude dimming and <1% output ripple current
  • Wide operating temperature range: -40…+65 °C
  • High surge protection: up to 4 kV (L-N) / 4 kV (L/N-PE)
  • Integrated inrush current limiter
  • Very high efficiency (up to 96%)
Areas of application
  • Linear and area lighting
  • Industry lighting
  • Suitable for luminaires of protection class I
Family data sheet View downloads

Products

Product Nominal output voltage Nominal output current Data sheet

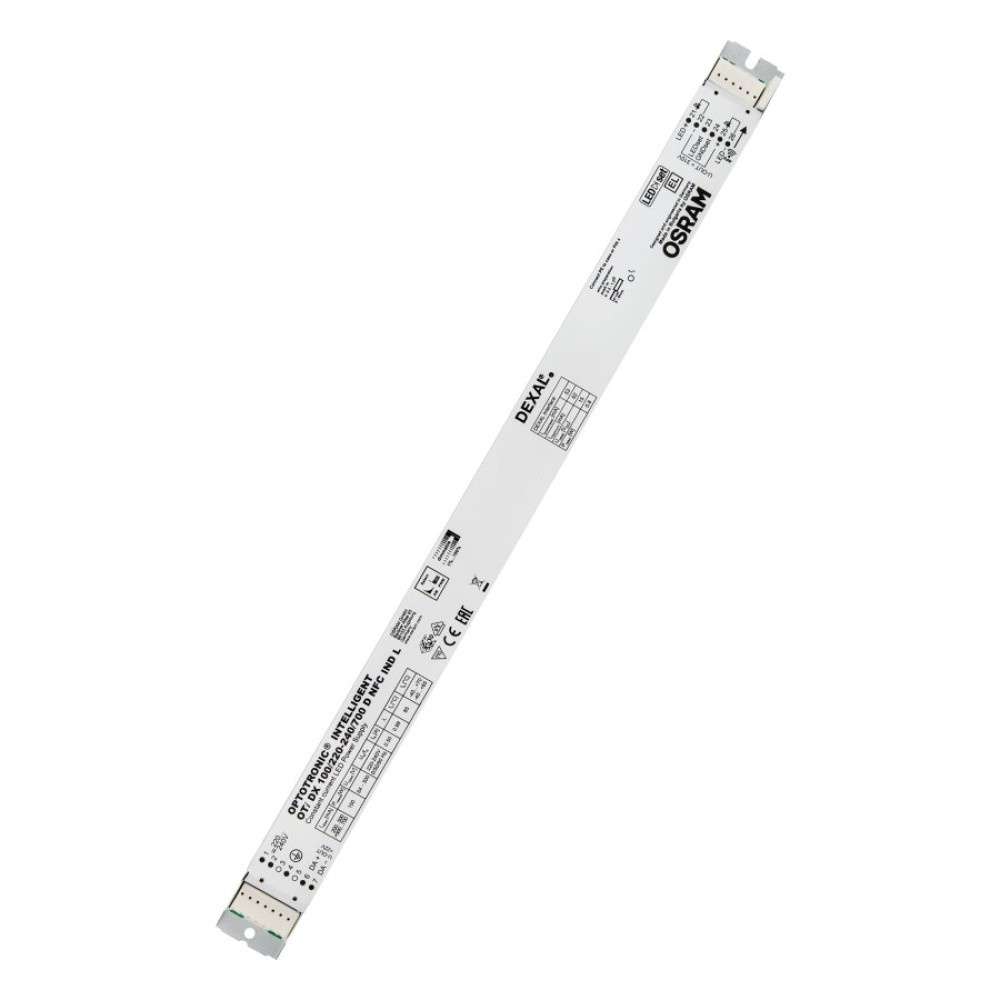

OTI DX 100/220-240/700 D NFC IND L 64…300 V 200…700 mA
