Inventronics OTI DX 100/220-240/700 D NFC IND L

Product family features

• Line frequency: 0 Hz | 50 Hz | 60 Hz
• Versatile scope of application due to output power range of up to 150 W
• Monitoring of luminaire operating parameters
• Supply voltage: 220…240 V
• Available with output current range: up to 850 mA
• Constant Lumen Output (CLO)
• Integrated customizable thermal management (Driver Guard)
• Non-isolated drivers

Product family benefits

• Versatile non-isolated DEXAL LED driver up to 150 W due to flexible output characteristic
• Integrated DEXAL Bus power supply for sensors and wireless radios
• Simplified luminaire design for wireless lighting control system and sensors
• Locking and unlocking of luminaire/driver data
• Advanced luminaire/driver data (power, energy, operating hours…) for analytics
• D4i certified
• Prepared for DiiA Specification Parts -250, -251, -252 and -253
• Fully programmable via T4T software (NFC, DALI Interface)
• Lifetime: up to 100,000 h (temperature at T_c = 75 °C, max. 10 % failure rate)
• High light quality: 1…100% amplitude dimming and <1% output ripple current
• Wide operating temperature range: -40…+65 °C
• High surge protection: up to 4 kV (L-N) / 4 kV (L/N-PE)
• Integrated inrush current limiter
• Very high efficiency (up to 96%)

Areas of application

• Linear and area lighting
• Industry lighting
• Suitable for luminaires of protection class I

Ecodesign regulation information:Intended for use with LED modules.The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.

Output power	23…100 W
Output current	200…700 mA
Isolation	Non isolated
Protection (IP)	IP20
Programming interface	DEXAL, NFC, LEDset
Emergency lighting	Yes

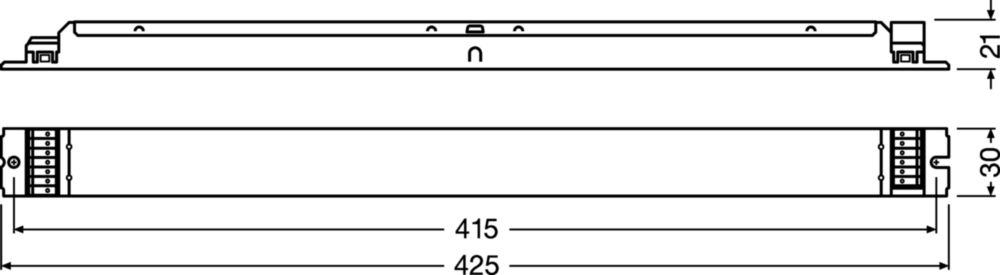

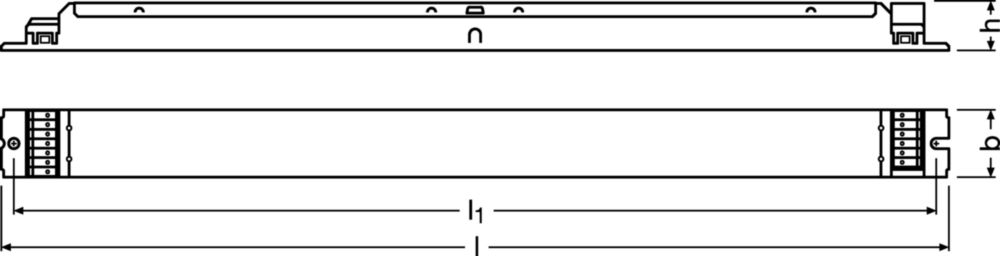

Dimensions	425 × 30 × 21 mm (l x w x h)
Certificates	CE, EL, VDE-ENEC, VDE-EMC, EAC, CCC, BIS, RCM, D4i
