Inventronics OTi DALI 75/220-240/500 D NFC F L

Product family features

• Line frequency: 0 Hz | 50 Hz | 60 Hz
• Versatile DALI window driver up to 75 W due to flexible output characteristic
• Supply voltage: 220…240 V
• Available with output current range: up to 500 mA
• DALI-2 certified (Part -101,-102 and -207)
• Monitoring of luminaire operating parameters
• Constant Lumen Output (CLO)
• Non-isolated drivers

Product family benefits

• Flat housing (16 mm height) for innovative luminaire designs and applications
• Fully programmable via software (DALI Interface, NFC)
• Advanced luminaire/driver data (power, energy, operating hours…) for analytics
• Prepared for DiiA Specification Parts -251, -252 and -253
• Lifetime: up to 100,000 h (temperature at T_c = 65 °C, max. 10 % failure rate)
• High-quality dimming of 1…100 % (amplitude and/or hybrid selectable by software)
• Higher quality of light thanks to < 1% output ripple current
• Very high efficiency
• Fulfill safety requirement due to overload, overtemperature, Hot Plug protection

Areas of application

• Linear lighting for office, education, industry, storage areas and retail
• Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
• Suitable for luminaires of protection class I

Ecodesign regulation information:Intended for use with LED modules.The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.

Output power	6.5…75 W
Output current	120…500 mA
Isolation	Non isolated
Protection (IP)	IP20
Programming interface	DALI, NFC
Emergency lighting	Yes

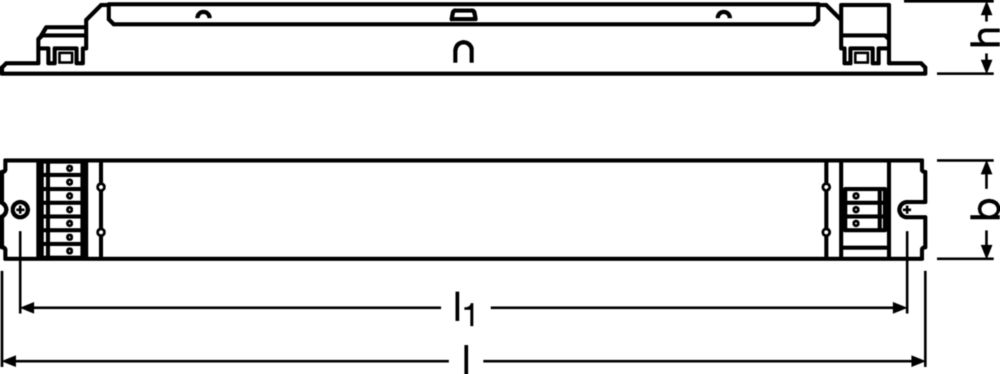

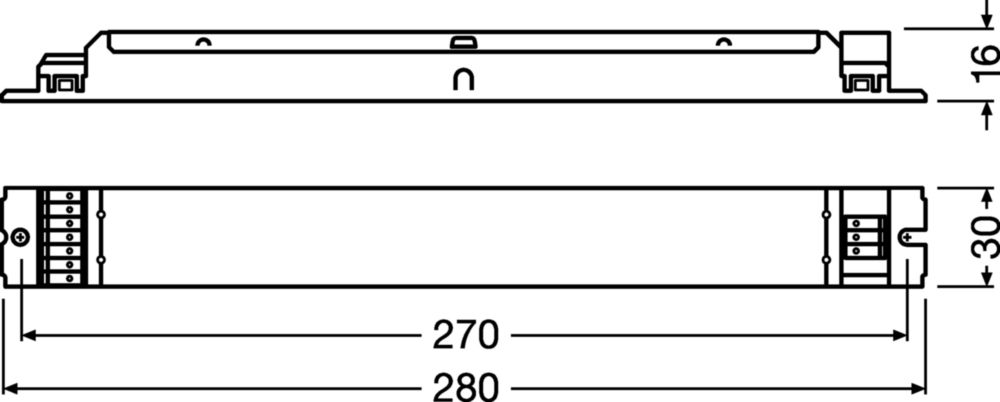

Dimensions	280 × 30 × 16 mm (l x w x h)
Certificates	CE, EL, VDE-ENEC, EAC, CCC, RCM, BIS
