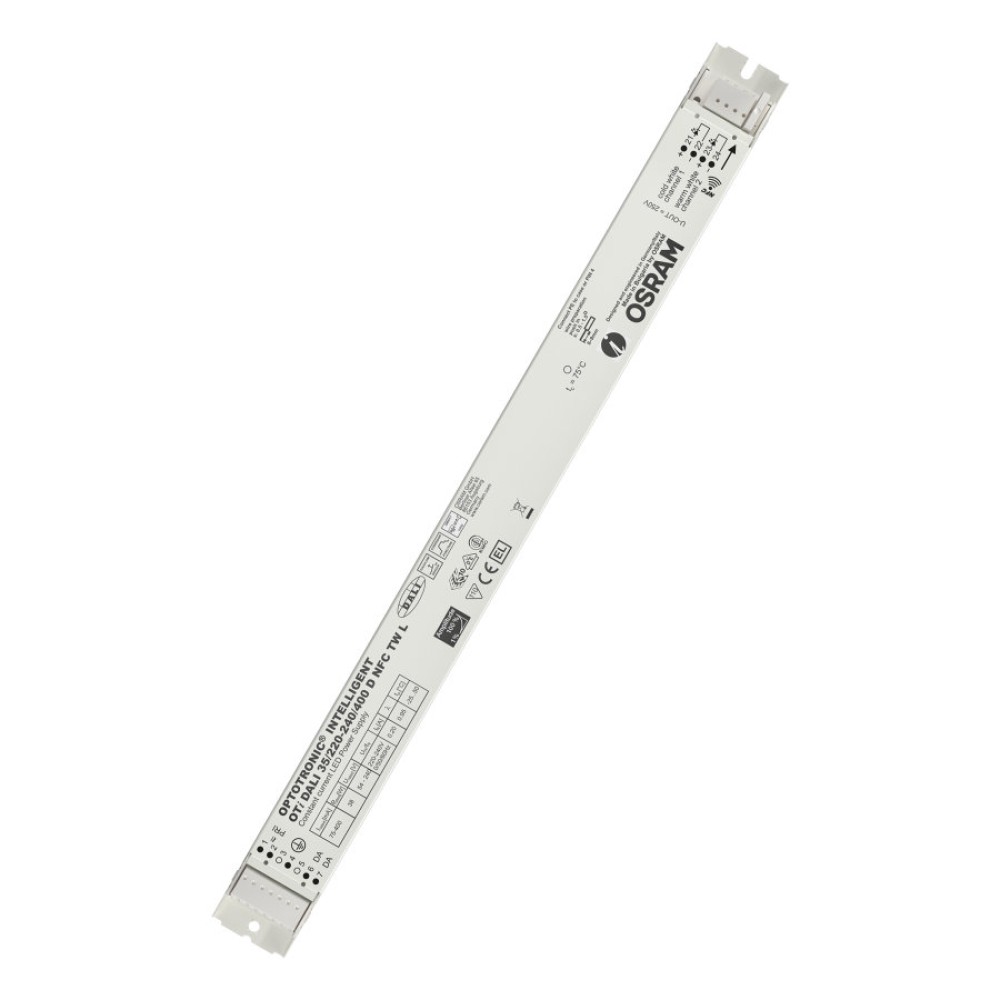

OTI DALI 35/220-240/700 NFC TW L

EAN: 4062172092968
42,02 € (+ 20% VAT)

You need to register / log in to buy
Sales unit
  • 1 pcs
Product family features
  • Line frequency: 0 Hz | 50 Hz | 60 Hz
  • Versatile DALI window driver up to 75 W due to flexible output characteristic
  • Supply voltage: 220…240 V
  • Usable as DT6 (2-channel) or DT8 (Tunable White) driver
  • Available with output current range: up to 1,400 mA
  • Constant Lumen Output (CLO)
  • Integrated customizable thermal management (Driver Guard)
  • SELV driver
Product family benefits
  • Control of standard white or Tunable White light acc. DALI device type 8 (DT8)
  • TouchDIM Tunable White integrated for use without additional LMS
  • Fully programmable via T4T software (NFC, DALI Interface)
  • Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
  • High-quality dimming of 1…100 % (amplitude and/or PWM selectable by software)
  • High quality of light thanks to <1% output ripple current
  • Very high efficiency
  • Fulfill safety requirement due to overload, overtemperature, Hot Plug protection
Areas of application
  • For Tunable White as well as for 2-channel use (e.g. direct/indirect lighting)
  • Linear lighting for office, education, industry, storage areas and retail
  • Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
  • Suitable for installation in emergency lighting systems according to EN 60598-2-22
  • Suitable for luminaires of protection class I
  • Perfect system match with PrevaLED Linear Tunable White
Family data sheet View downloads

Products

Product Nominal output voltage Nominal output current Data sheet
OTi DALI 75/220-240/1A4 NFC TW L 15…54 V 400…1400 mA

Downloads

Data sheets, brochures and technical information
