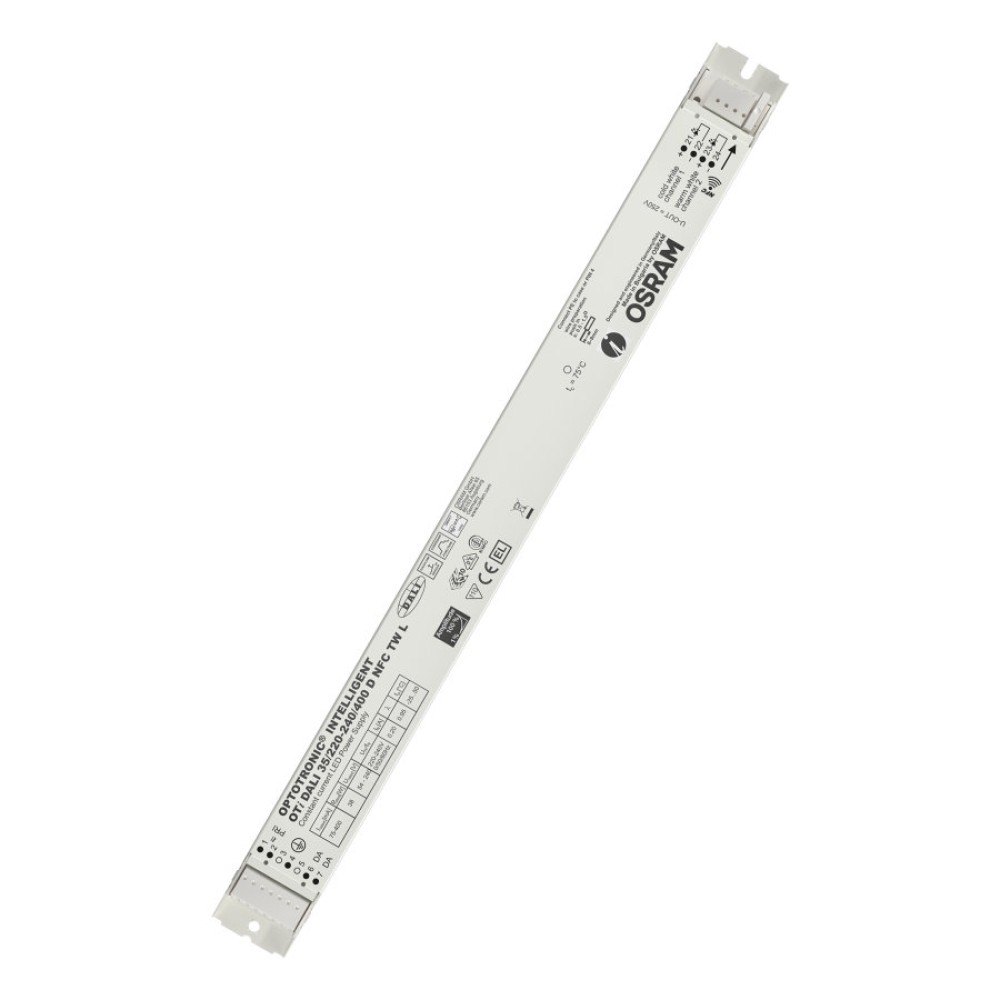

OTI DALI 35/220-240/400 D NFC TW L

EAN: 4052899990302
39,57 € (+ 20% VAT)

You need to register / log in to buy
Sales unit
  • 1 pcs
Product family features
  • Line frequency: 0 Hz | 50 Hz | 60 Hz
  • Output power: 35W
  • Supply voltage: 220…240 V
  • Available with output current range: up to 400 mA
  • Constant Lumen Output (CLO)
  • Integrated customizable thermal management (Driver Guard)
  • Non-isolated drivers
  • DALI-2 certified (Part -101,-102 and -207)
  • Usable as DT6 (2-channel) or DT8 (Tunable White) driver
Product family benefits
  • Fully programmable via software (DALI Interface, NFC)
  • Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
  • High light quality: 1…100% amplitude dimming and <1% output ripple current
  • TouchDIM Tunable White integrated for use without additional LMS (planned for end of 2018)
  • High-quality dimming of 1…100 % (amplitude and/or PWM selectable by software)
  • High quality of light thanks to <1% output ripple current
  • Very high efficiency
  • Fulfill safety requirement due to overload, overtemperature, Hot Plug protection
Versatile scope of application due to OSRAM DALI Technology:
  • Easy to use in corridors and restrooms because of three-level Corridor function
  • Touch DIM application: easy to control via pushbutton or sensor
  • Energy efficient Touch DIM operation due to automatic switch-off at sufficient residual light
  • Suitable for emergency Installations (acc. to EN 60598-2-22 and IEC 61347-2-13, appendix J) thanks to DC detection (0 Hz, pulsating DC), on/off switchable
  • Feedback of power consumption and operating hours (Fit for SMART GRID)
  • Suitable for buildings according to EPBD/BREEAM/LEED due to automatic Constant Lumen Output setting
  • Luminaire information for easy maintenance
Areas of application
  • For Tunable White as well as for 2-channel use (e.g. direct/indirect lighting)
  • Linear lighting for office, education, industry, storage areas and retail
  • Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
  • Suitable for installation in emergency lighting systems according to EN 60598-2-22
  • Suitable for luminaires of protection class I
  • Perfect system match with PrevaLED Linear Tunable White
Family data sheet View downloads

Products

Product Nominal output current Nominal output voltage Data sheet
OTi DALI 75/220-240/700 D NFC TW L 150…700 mA 45…240 V
