Inventronics OTi DALI 25/220-240/700 LT2

Product family features

• Supply voltage: 220…240 V
• Line frequency: 0 Hz | 50 Hz | 60 Hz
• Line voltage: 198…264 V
• Lifetime: up to 100,000 h
• Type of protection: IP20
• Independent connection via through-looping (except OTi DALI 15)

Product family benefits

• Versatile DALI window driver due to flexible output characteristic
• Very high efficiency
• Protection of the system thanks to thermal management and Smart Control
• High-quality dimming of 1…100 % by amplitude dimming
• DALI-2 certified incl. Parts 251, 252, 253

Versatile scope of application due to DALI Technology:

• Easy to use in corridors and restrooms because of three-level Corridor function
• Touch DIM application: easy to control via pushbutton or sensor
• Energy efficient Touch DIM operation due to automatic switch-off at sufficient residual light
• Suitable for emergency Installations (acc. to EN 60598-2-22 and IEC 61347-2-13, appendix J) thanks to DC detection (0 Hz, pulsating DC), on/off switchable
• Feedback of power consumption and operating hours (Fit for SMART GRID)
• Suitable for buildings according to EPBD/BREEAM/LEED due to automatic Constant Lumen Output setting

Areas of application

• Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
• Suitable for use in luminaires with flexible current setting (DALI, CLO, LEDset)
• Suitable for indoor SELV installations
• Suitable for luminaires of protection classes I and II
• Suitable for downlights, spotlights and LED panels
• Installation via Cable Clamp Kit possible (depending on version of product)

Ecodesign regulation information:Intended for use with LED modules.The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.

Output power	27 W
Output current	180…700 mA
Isolation	SELV
Protection (IP)	IP20
Programming interface	DALI, LEDset
Emergency lighting	Yes

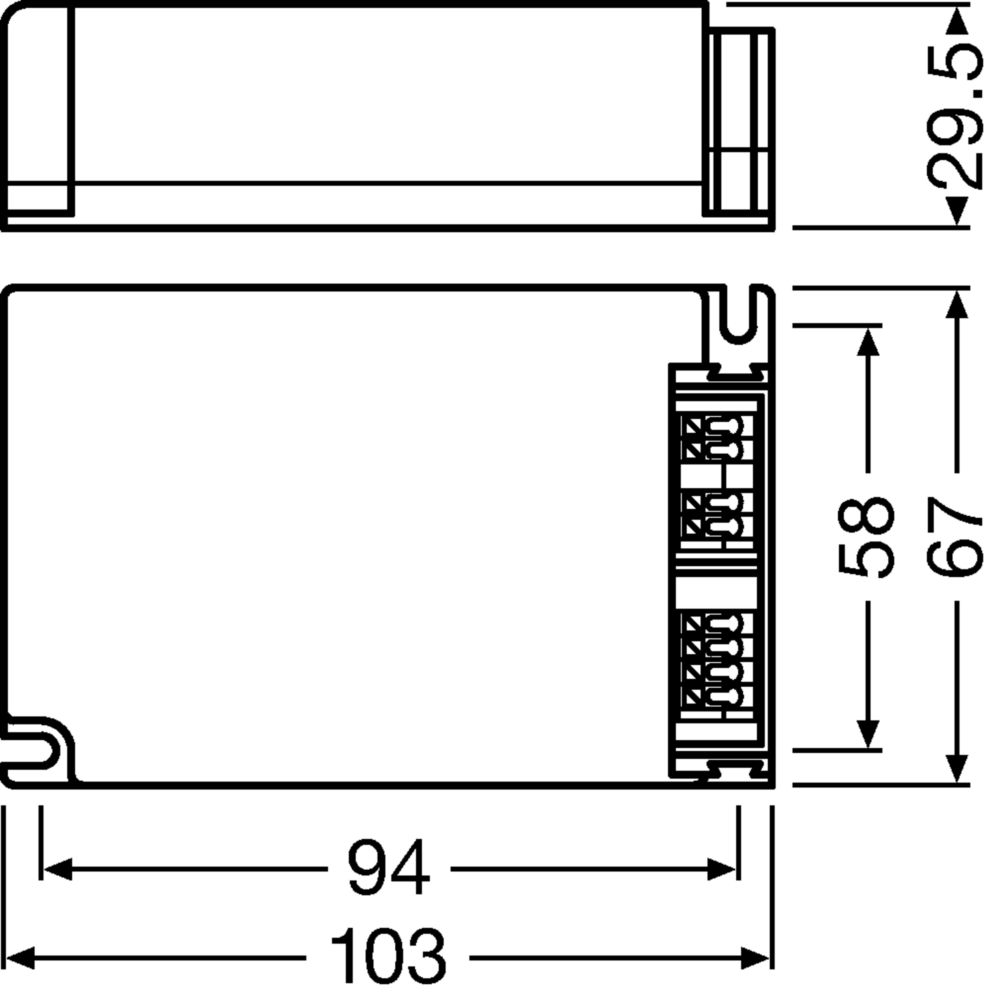

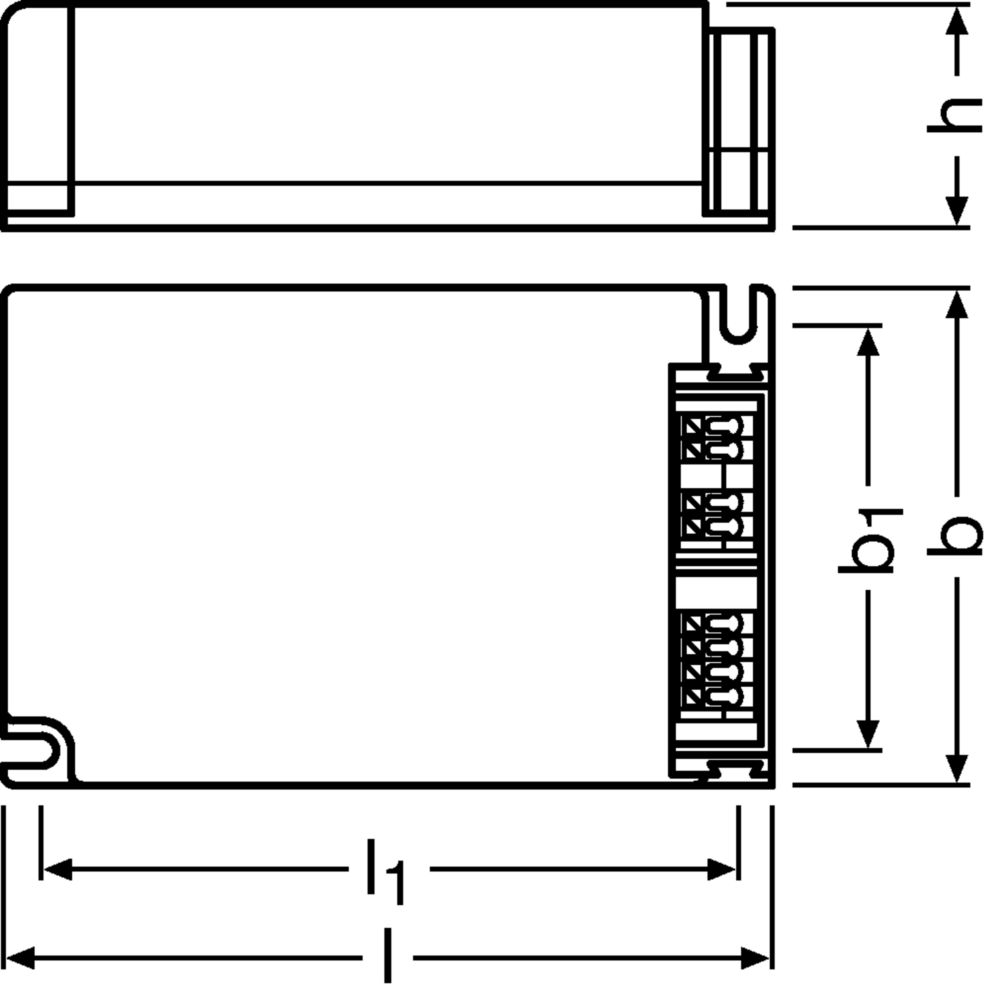

Dimensions	103 × 67 × 29.5 mm (l x w x h)
Certificates	CE, ENEC, DALI-2, EL
