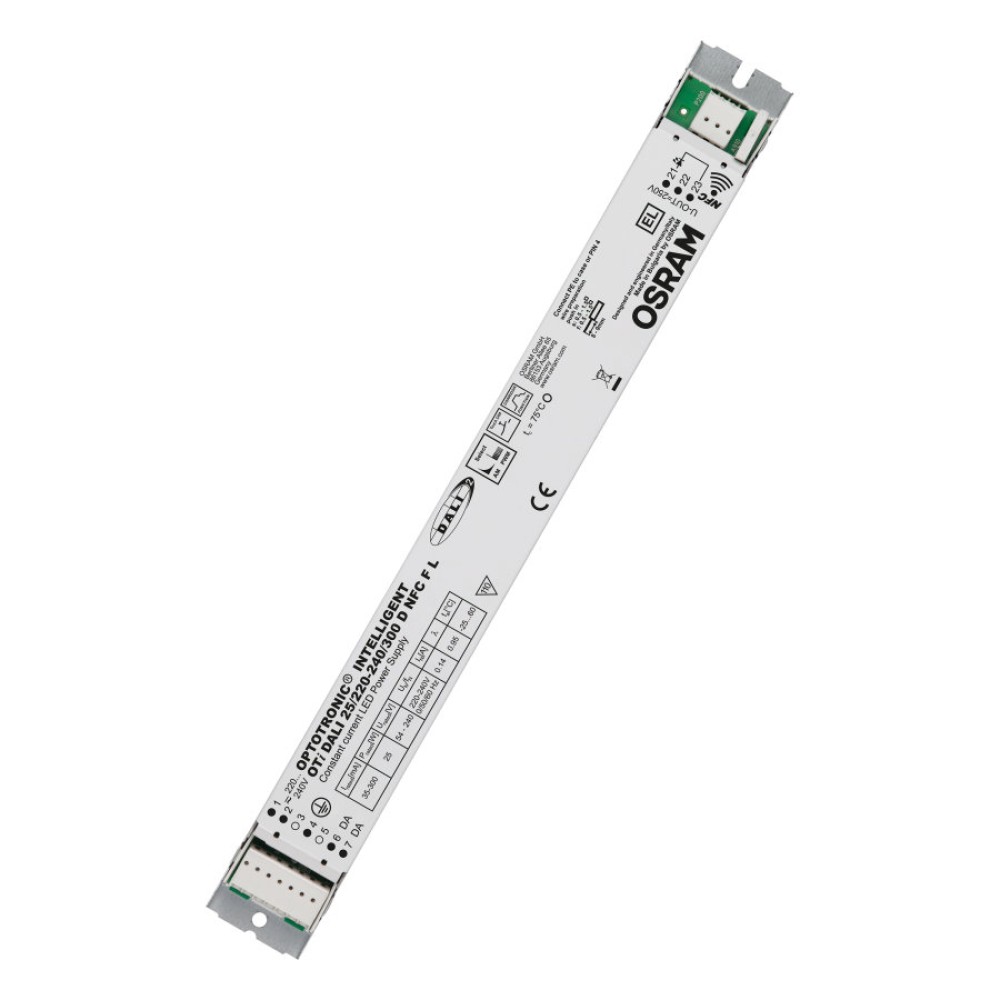

OTI DALI 25/220-240/300 D NFCFL

EAN: 4062172020749
26,17 € (+ 20% VAT)

You need to register / log in to buy
Sales unit
  • 1 pcs
Product family features
  • Line frequency: 0 Hz | 50 Hz | 60 Hz
  • Output power: 25 W
  • Supply voltage: 220…240 V
  • Available with output current range: up to 300 mA
  • DALI-2 certified (Part -101,-102 and -207)
  • Monitoring of luminaire operating parameters
  • Constant Lumen Output (CLO)
  • Non-isolated drivers
Product family benefits
  • Flat housing (16 mm height) for innovative luminaire designs and applications
  • Fully programmable via software (DALI Interface, NFC)
  • Advanced luminaire/driver data (power, energy, operating hours…) for analytics
  • Prepared for DiiA Specification Parts -251, -252 and -253
  • Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
  • High-quality dimming of 1…100 % (amplitude and/or PWM selectable by software)
  • Higher quality of light thanks to < 1% output ripple current
  • Very high efficiency
  • Fulfill safety requirement due to overload, overtemperature, Hot Plug protection
Areas of application
  • Linear lighting for office, education, industry, storage areas and retail
  • Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
  • Suitable for luminaires of protection class I
Family data sheet View downloads

Products

Product Nominal output voltage Nominal output current Data sheet
OTi DALI 75/220-240/500 D NFCFL 54…240 V 120…500 mA
OTi DALI 35/220-240/400 D NFCFL 54…240 V 75…400 mA

Downloads

Data sheets, brochures and technical information
