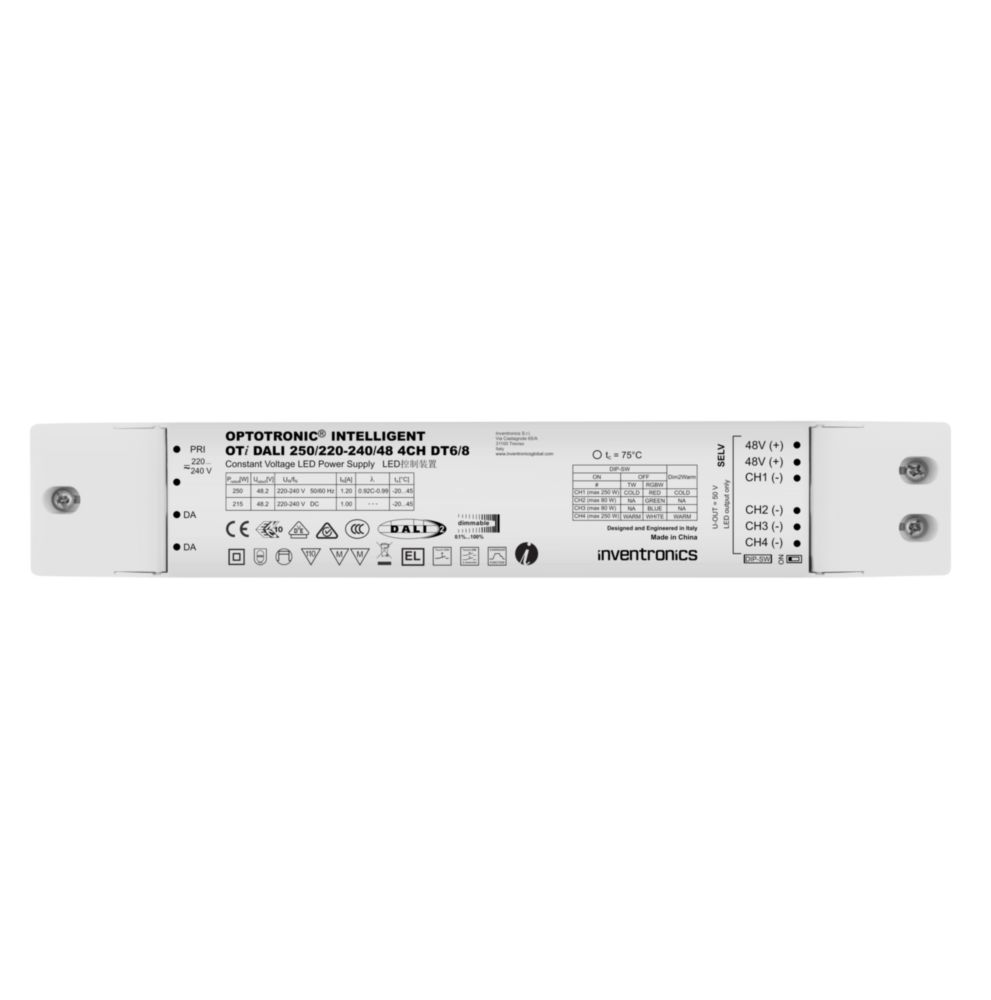

Inventronics OTi DALI 250/220-240/48 4CH DT6/8

Product family features

• Dimmable via Touch DIM
• 50 m load cable with EMI validated
• Dimming range: 0.1…100 %
• Line frequency: 0 Hz | 50 Hz | 60 Hz

Product family benefits

• Intelligent power matching thanks to Smart power supply
• Form factor for mounting on the cove or in luminaires
• No stroboscopic effect thanks to patented high PWM frequency management (> 2 kHz)
• Suitable for installation in emergency lighting systems according to EN 60598-2-22
• DALI message detection "LED Module failure"
• DALI part 251-252-253
• IP rating: IP20

Areas of application

• Cove lighting, wall washer, corridor, handrail, luminous ceilings
• Suitable for use in luminaires of protection class I and II

Equipment / Accessories

• Suitable for 48 V LED modules

Ecodesign regulation information:Intended for use with LED modules.The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.

Output power	0…250 W
Isolation	SELV
Protection (IP)	IP20
Programming interface	DALI - 2
Emergency lighting	Yes
Dimensions	0 × 0 × 0 mm (l x w x h)
Certificates	BIS, CCC, CE, EAC, EL, ENEC 10, RCM, VDE, VDE-ENEC
