Inventronics OTi DALI 100/220-240/244CHDT6/8 P

Product family features

• 1 to 4 DALI addressable channels
• LED driver whose output power can be shared arbitrarily among the 2 or 4 channels
• AstroDim functionality
• Dimming range: 0/0, 1…100 %
• Line frequency: 0 Hz | 50 Hz | 60 Hz
• High level surge protection: up to 6 kV (L-N), 8 kV (L/N-PE)
• Inrush current limiter circuit

Product family benefits

• Long lasting and high reliability
• From 1 to 4 channels to arbitrarily distribute the power
• Suitable for installation under sunlight
• IP66/IP67 Salt mist resistant and DC functionality
• AstroDim functionality for automatic dimming and turn on/off

Areas of application

• Public squares and architecture lighting
• Suitable for indoor and outdoor SELV installations
• Suitable for use in luminaires of protection class I

Ecodesign regulation information:Intended for use with LED modules.The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.

Output power	0…100 W
Output current	not relevant mA
Isolation	SELV
Protection (IP)	IP66/IP67
Programming interface	n/a
Emergency lighting	Yes

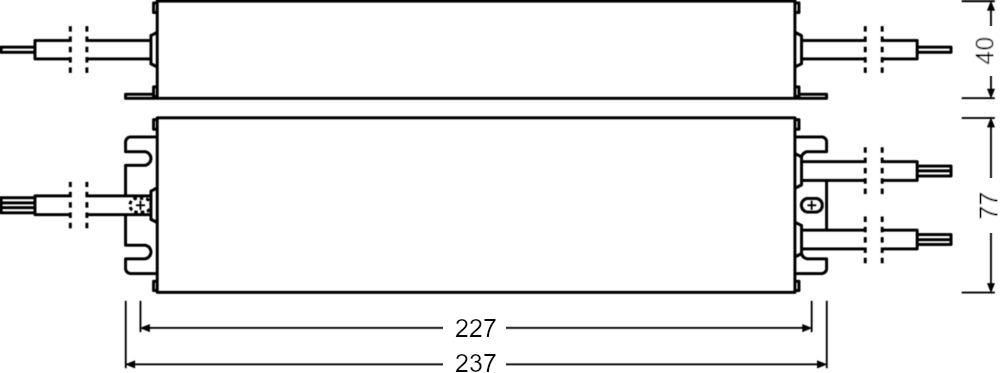

Dimensions	237 × 80 × 40 mm (l x w x h)
Certificates	ENEC 10, RCM, VDE, UKCA, EL, MM
