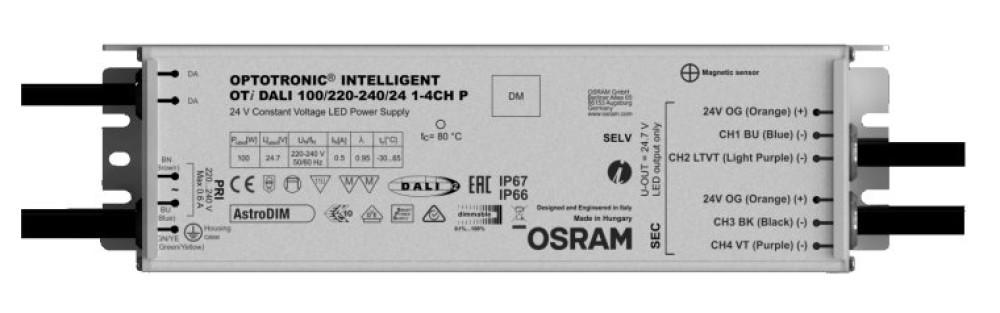

OTI DALI 100/220-240/24 1-4 CH IP67

EAN: 4062172119191
128,43 € (+ 20% VAT)

You need to register / log in to buy
Product features
  • 1 up to 4 DALI addressable channels
  • Lamp Failure detection
  • Smart Power Supply
  • SELV, Uout: 24 V
  • Wide ta range -30…+55°C
  • Driver with output power range of up to 210 W
  • Overload/Over temperature/Short circuit protection
  • tc max = 85 °C
  • AstroDIM function
  • Dimmable via DALI interface
  • Very low dimming: 0,1%
  • High surge protection: up to 4 kV (L-N), 8kV (L/N-PE)
  • Mains voltage: 220–240 Vac / 176–276 Vdc
  • 50’000 h lifetime at tc
  • High IP protection (IP67)
  • Output wire length up to 50 m
  • 5 years guarantee* (*10% cumulated failure)
Product benefits
  • Long lasting and high reliability
  • From 1 to 4 channels to arbitrary distribute the power
  • Suitable for installation under Sunlight
  • Salt mist resistant and DC functionality
  • AstroDim functionality for automatic turn on/off
Areas of application
  • In building’s facades, cruises ships, luminous Signage,
  • Public squares and architecture lighting
  • Suitable for indoor and outdoor SELV installations
  • Suitable for Class I luminaires
Family data sheet View downloads

Products

Product Nominal wattage Data sheet
OTI DALI 210/220-240/24 1-4 CH IP67 210 W
