Inventronics OTe 13/220-240/350 PC

Product family features

• Dimmable via leading edge/trailing edge
• Type of protection: IP20

Product family benefits

• Compact housing for mounting in very tight spaces
• Compatible with the most common leading-edge and trailing-edge phase dimmers

Areas of application

• Optional cable clamp E-style for independent mounting
• Suitable for indoor installations
• Suitable for indoor SELV installations

Ecodesign regulation information:Intended for use with LED modules.The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.

Output power	13 W
Output current	350 mA
Isolation	SELV
Protection (IP)	IP20
Programming interface	n/a
Emergency lighting	No

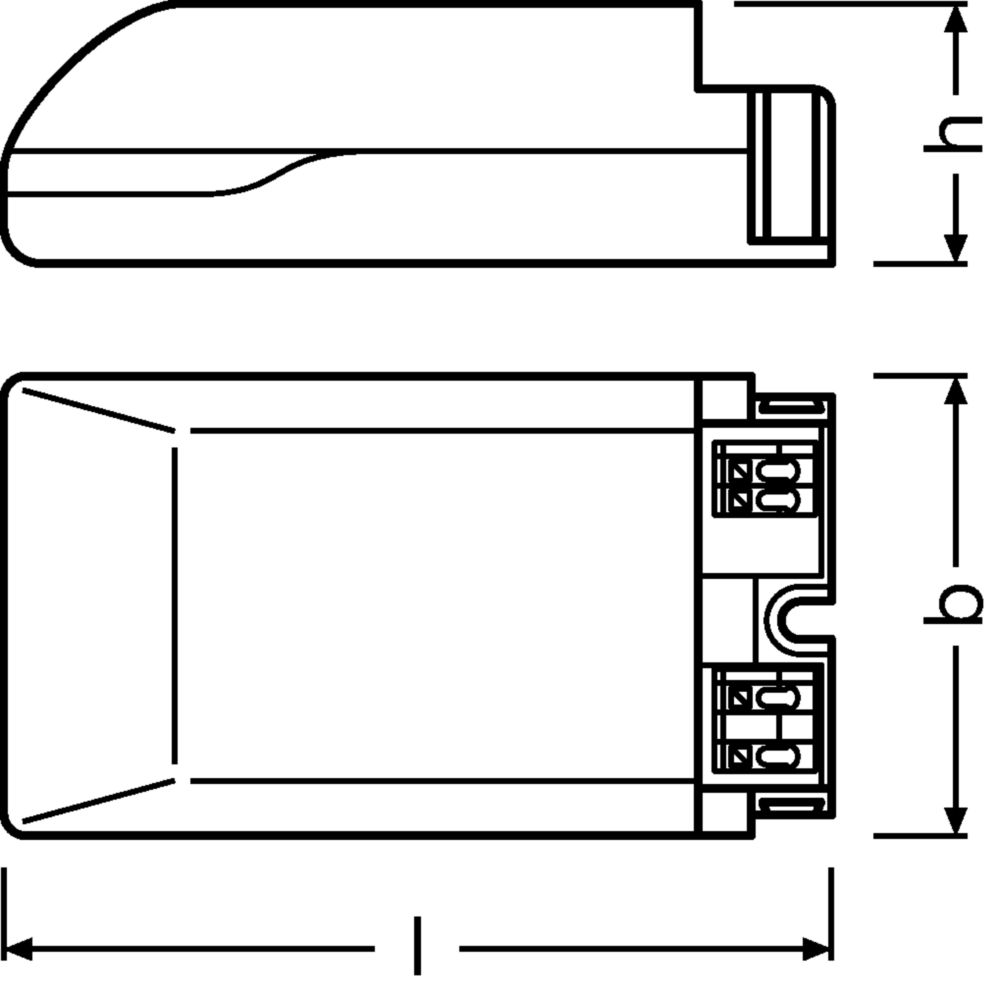

Dimensions	95 × 53 × 25 mm (l x w x h)
Certificates	CE, ENEC 10, CB
