Inventronics OT FIT 75/220-240/1A6 CS

Product family features

• Lifetime: up to 50,000 h (temperature at max. t_c )
• Cable clamp kit for independent mounting

Product family benefits

• Higher quality of light thanks to low output ripple current
• High flexibility due to four different output currents
• Small housing for flexible luminaire designs
• High efficiency

Areas of application

• Suitable for downlights, spotlights and LED panels
• Suitable for luminaires of protection classes I and II

Ecodesign regulation information:Intended for use with LED modules.The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.

Output power	32.5…77 W
Output current	1200 mA, 1350 mA, 1500 mA, 1650 mA
Isolation	SELV
Protection (IP)	IP20
Programming interface	Dipswitch
Emergency lighting	No

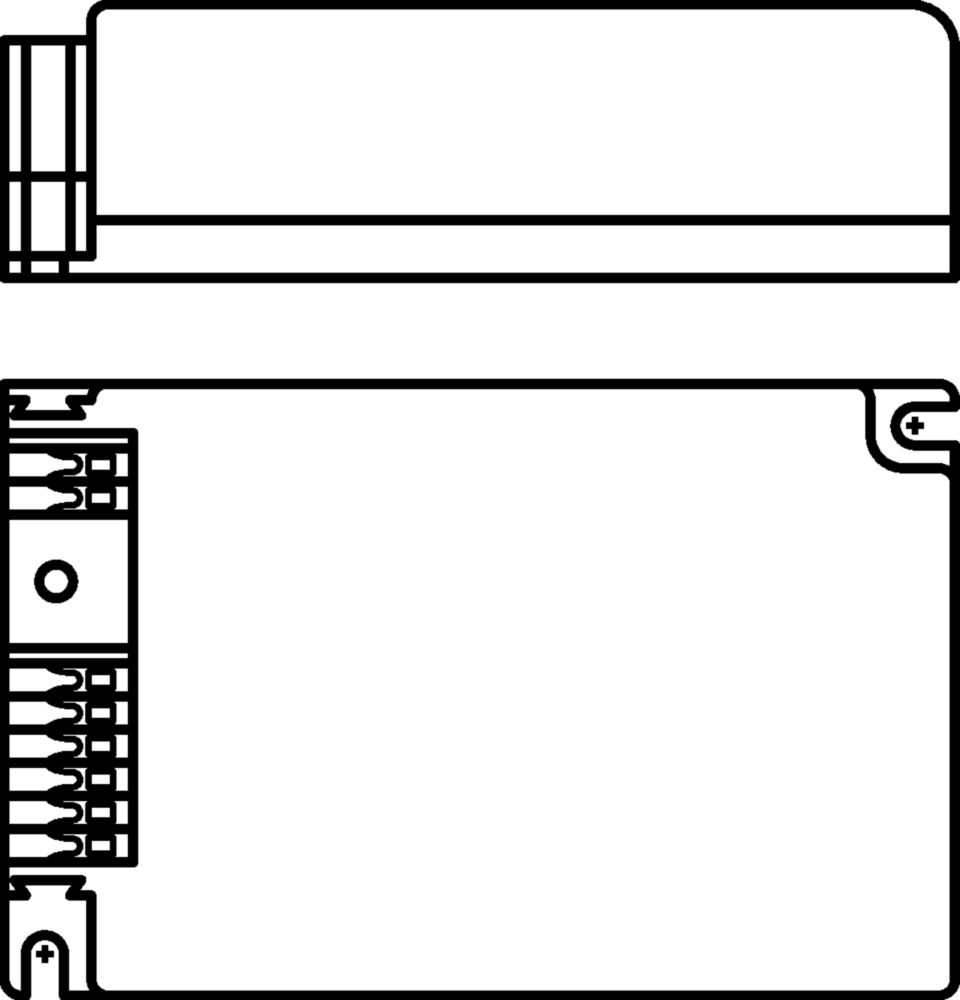

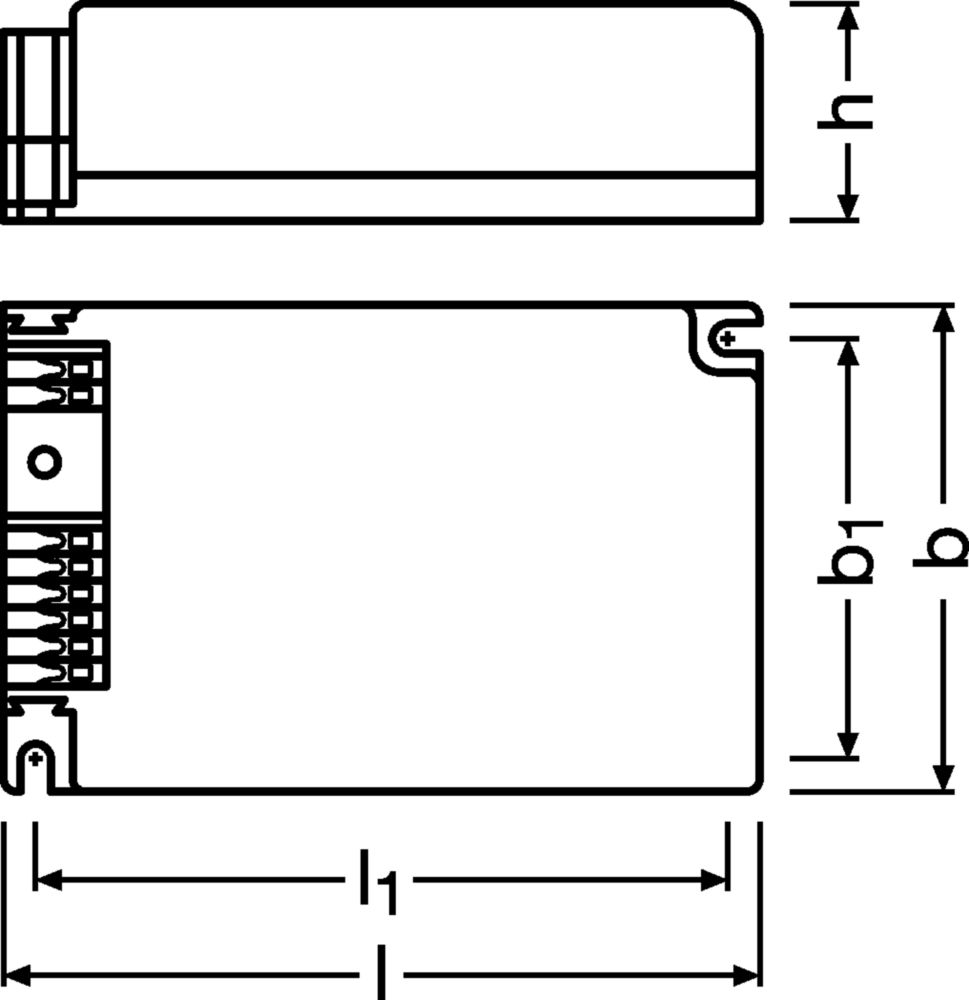

Dimensions	103 × 67 × 29.5 mm (l x w x h)
Certificates	ENEC, CCC, CE, RCM
