Inventronics OT FIT 40/220-240/1A0 CS PC

Product family features

• Cable clamp housing for independent mounting
• Dimmable on the leading edge and trailing edge
• Housing for independent installation

Product family benefits

• Compatible with the most common leading-edge and trailing-edge phase dimmers
• Flexible current setting (DIPswitch – 2 to 4 currents)
• Flicker-free dimming
• Higher quality of light thanks to < 5% output ripple current
• Housing from 80% recycled plastic

Areas of application

• Decorative illumination
• Downlights, flat luminaires
• Hospitality
• Living areas
• Museums, residential buildings
• Offices
• Shop lighting
• Suitable for indoor SELV installations
• Suitable for luminaires of protection class I and II

Ecodesign regulation information:Intended for use with LED modules.The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.

Output power	21.6…42 W
Output current	800 mA, 900 mA, 950 mA, 1050 mA
Isolation	SELV
Protection (IP)	IP20
Programming interface	n/a
Emergency lighting	No

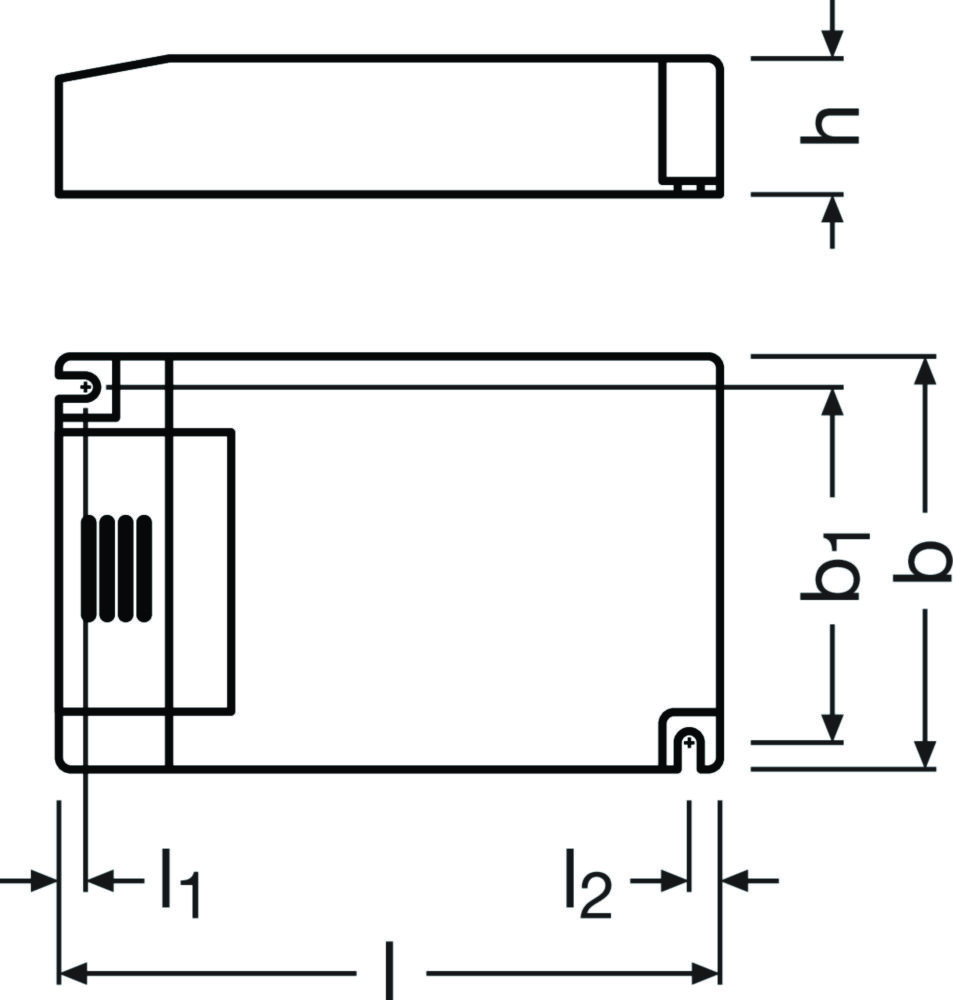

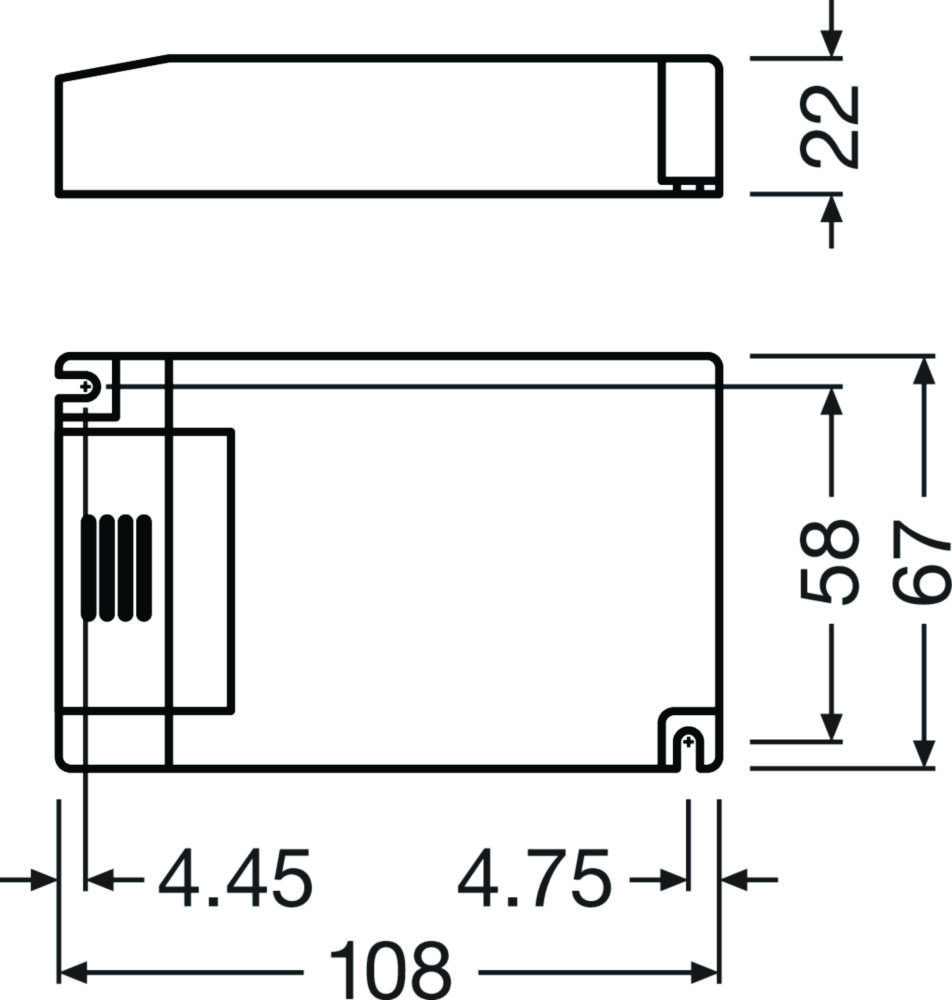

Dimensions	108 × 67 × 22 mm (l x w x h)
Certificates	CE
