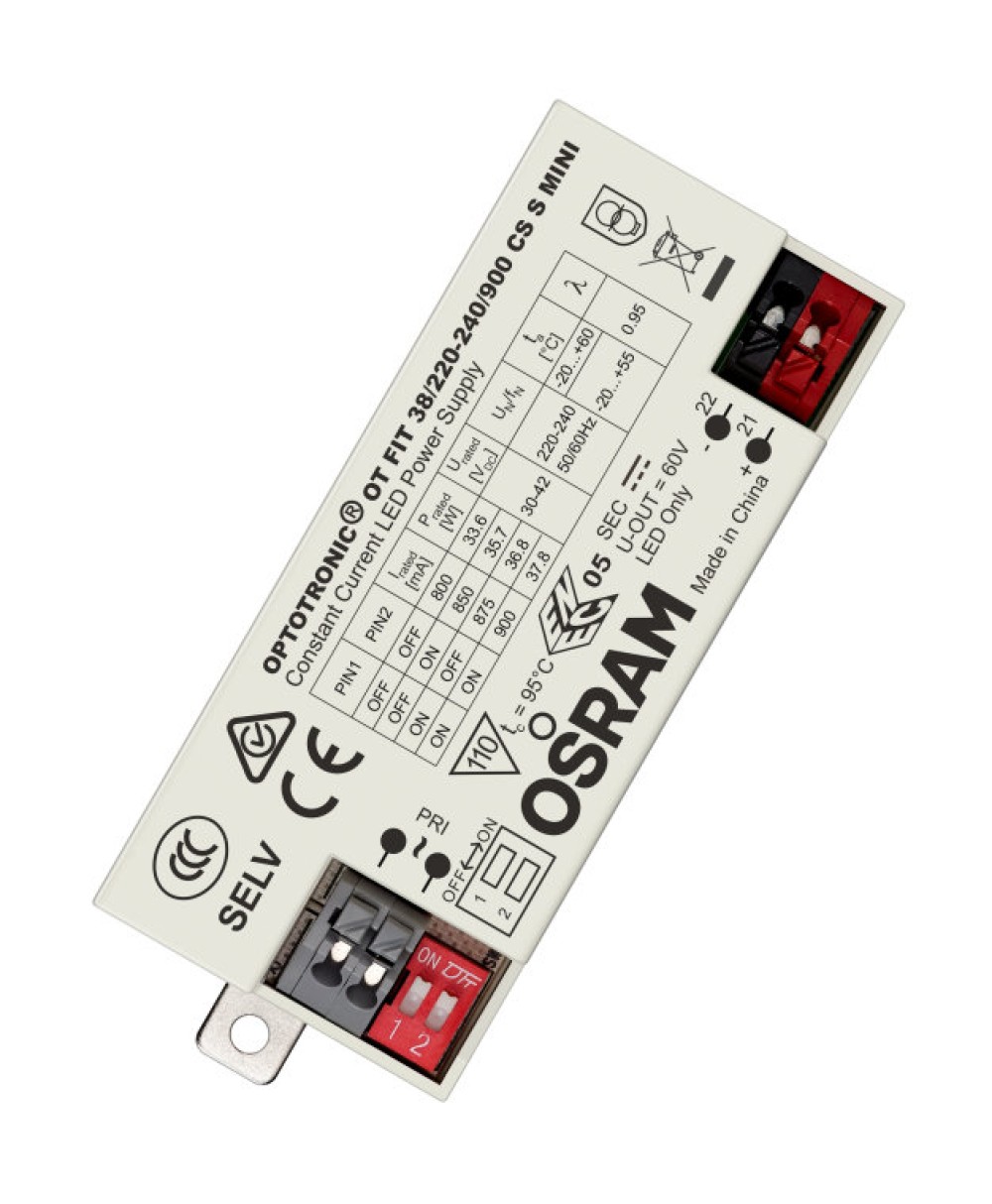

OT FIT 38/220-240/900 CS S MINI
EAN: 4052899587984
9,65 €
(+ 20% VAT)
You need to register / log in to buy
Sales unit
Family data sheet
View downloads
- 1 pcs
- Supply voltage: 220…240 V
- Line frequency: 50 Hz | 60 Hz
- Line voltage: 198…264 V
- Safety according to EN 61347-1, 61347-2-13, 62384
- RI suppression according to CISPR 15
- Line harmonics according to EN 61000-3-2
- Immunity according to EN 61547
- Small housing for flexible luminaire designs
- Higher quality of light thanks to <3% output ripple current
- Operating temperature: up to 60 °C
- User flexibility with four different output currents from one driver
- Flexible current selection via DIP switch
- Reversible overtemperature, overload, short-circuit and open-circuit protection
- High efficiency (up to 90%)
- Extra small design for downlights, spotlights and other indoor luminaries
- Suitable for luminaires of protection classes I and II
- Suitable for indoor SELV installations
Products
| Product | Nominal output voltage | Nominal output current | Data sheet |
OT FIT 8/220-240/180 CS I MINI (cable clamp integrated)
|
30…42 V | 90/120/150/180 mA | |
OT FIT 30/220-240/700 CS S MINI
|
30…42 V | 550/600/650/700 mA | |
OT FIT 15/220-240/350 CS S MINI
|
30…42 V | 225/250/325/350 mA | |
OT FIT 20/220-240/500 CS S MINI
|
30…42 V | 400/450/475/50 mA |
