Inventronics OT FIT 300/220-240/12 P

Product family benefits

• Versatile scope of application due to output power range of up to 300 W
• Very high efficiency
• IP rating: up to IP66/IP67
• High surge protection: up to 6 kV (L-N) / 6 kV (L/N-PE)

Areas of application

• Suitable for indoor and outdoor installations
• Ideal for mounting in very tight spaces

Ecodesign regulation information:Intended for use with LED modules.The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.

Output power	300 W
Output current	not relevant mA
Isolation	SELV
Protection (IP)	IP66/IP67
Programming interface	n/a
Emergency lighting	No

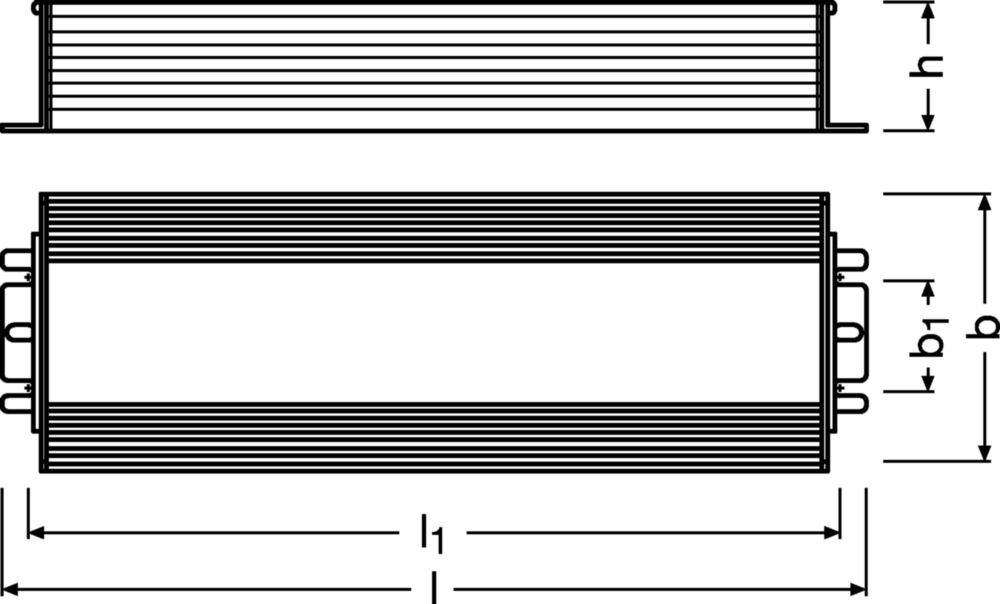

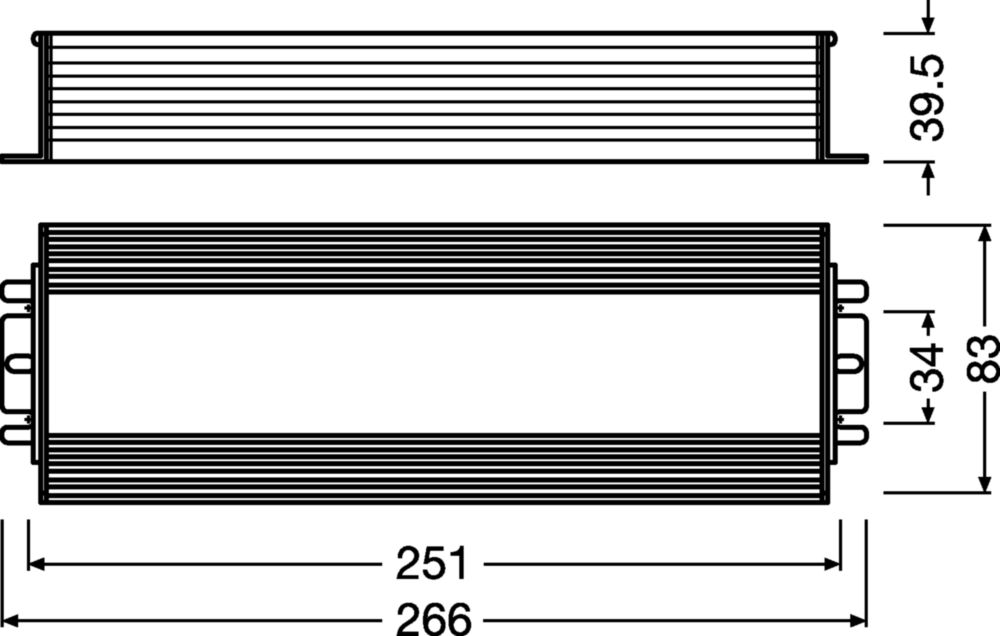

Dimensions	266 × 83 × 39.5 mm (l x w x h)
Certificates	CE, CCC, ENEC, TISI, RCM
