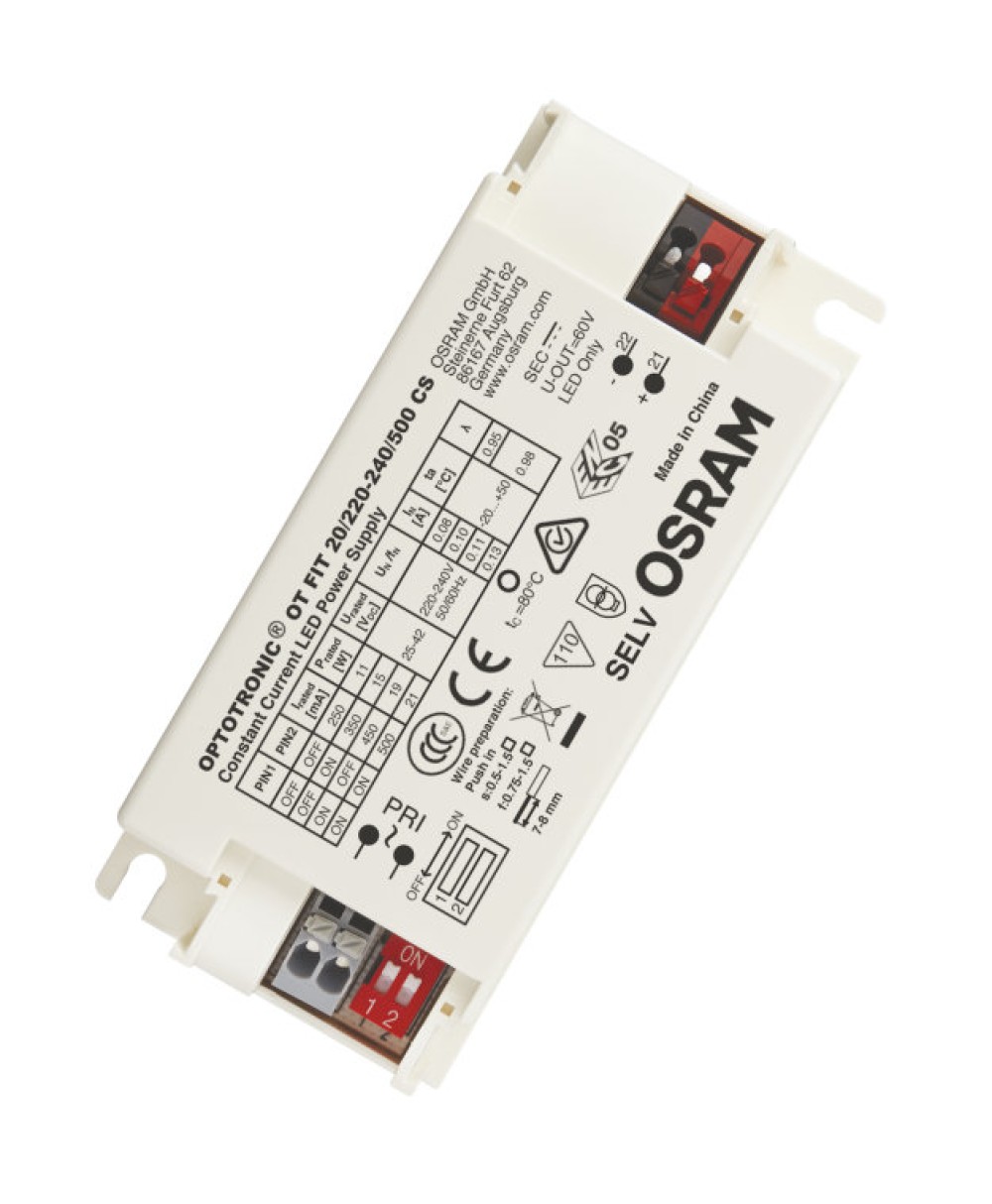

OT FIT 20/220-240/500 CS G2 (CABLE CLAMP D-STYLE TO BE ORDERED SEPARATELY)

EAN: 4052899435612
8,40 € (+ 20% VAT)

You need to register / log in to buy
Sales unit
  • 1 pcs
Product family features
  • Supply voltage: 220…240 V
  • Line frequency: 50 Hz | 60 Hz
  • Line voltage: 198…264 V
  • Safety according to EN 61347-1, 61347-2-13, 62384
  • RI suppression: to EN 55015
  • Line harmonics according to EN 61000-3-2
  • Immunity according to EN 61547
  • Lifetime: up to 50,000 h (temperature at Tc = 70 °C, max. 10 % failure rate)
  • Cable clamp kit for independent mounting
Product family benefits
  • High quality of light thanks to low output ripple current
  • High flexibility due to four different output currents
  • Small housing for flexible luminaire designs
  • High efficiency
Areas of application
  • Suitable for downlights, spotlights and LED panels
  • Suitable for luminaires of protection classes I and II
Family data sheet View downloads

Products

Product Nominal output voltage Nominal output current Data sheet
OT FIT 40/220-240/1A0 CS G2 (cable clamp D-style to be ordered separately) 25…42 V 800/900/1050/950 mA
OT FIT 30/220-240/700 CS G2 (cable clamp D-style to be ordered separately) 25…42 V 500/600/700/650 mA

Downloads

Data sheets, brochures and technical information
