Inventronics OT FIT 18/220-240/350 D CS L

Product family features

• Line frequency: 0 Hz | 50 Hz | 60 Hz
• Supply voltage: 220…240 V
• Line voltage: 198…264 V
• DC detection (0 Hz, pulsating DC), on/off switchable
• Wide output current range
• Lifetime: up to 100,000 h (temperature at T_c = 65 °C, max. 10 % failure rate)
• Non-isolated drivers

Product family benefits

• Flexible current setting (DIPswitch – 6 currents)
• Higher quality of light thanks to low output ripple current
• High efficiency
• User flexibility with six different output currents from one driver
• Safety requirement due to overload, overtemperature, short-circuit protection
• Long reliable life at maximum permitted temperatures
• Enable slim fixture design with flat 21 mm height metal housing

Areas of application

• Linear and area lighting
• Office, industrial and shop lighting
• Suitable for luminaires of protection class I
• Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
• Suitable for installation in emergency lighting systems according to EN 60598-2-22

Ecodesign regulation information:Intended for use with LED modules.The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.

Output power	5…18.9 W
Output current	100 mA, 150 mA, 200 mA, 250 mA, 300 mA, 350 mA
Isolation	Non isolated
Protection (IP)	IP20
Programming interface	Dipswitch
Emergency lighting	Yes

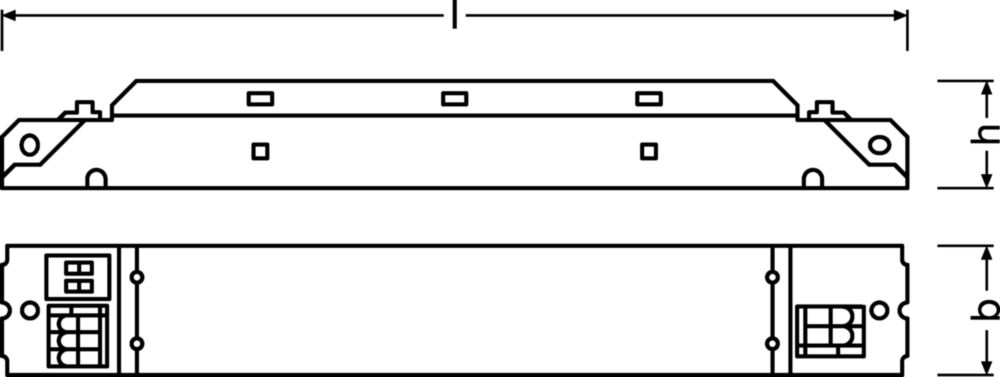

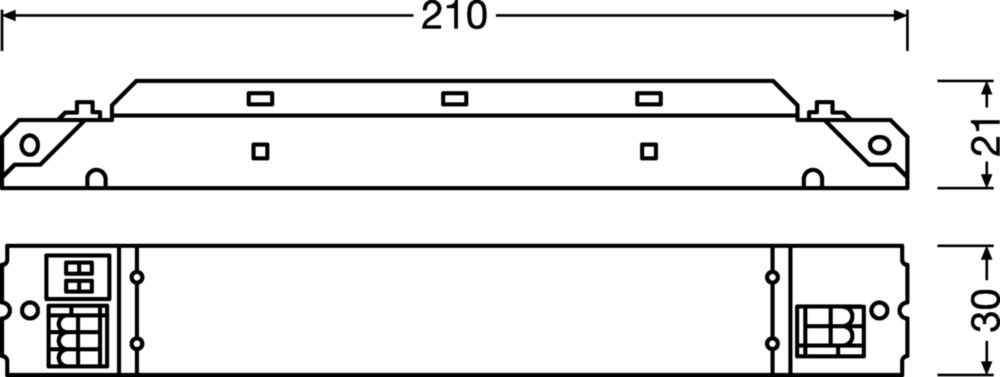

Dimensions	210 × 30 × 21 mm (l x w x h)
Certificates	CE, ENEC, CCC, RCM, UKCA, BIS, EAC
