Inventronics OT FIT 120/220-240/750 D LT2 L

Product family features

• Line frequency: 0 Hz | 50 Hz | 60 Hz
• Versatile scope of application due to output power range of up to 120 W
• Supply voltage: 220…240 V
• Available with output current range: up to 750 mA
• Non-isolated drivers

Product family benefits

• Flexible current setting (LEDset2)
• Lifetime: up to 100,000 h (temperature at T_c = 65 °C, max. 10 % failure rate)
• High quality of light thanks to low output ripple current
• Very high efficiency
• Fulfill safety requirement due to overload, overtemperature, Hot Plug protection

Areas of application

• Linear lighting for office, education, industry, storage areas and retail
• Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
• Suitable for installation in emergency lighting systems according to EN 60598-2-22
• Suitable for luminaires of protection class I

Ecodesign regulation information:Intended for use with LED modules.The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.

Output power	13.5…120 W
Output current	250…700 mA
Isolation	Non isolated
Protection (IP)	IP20
Programming interface	LEDset
Emergency lighting	Yes

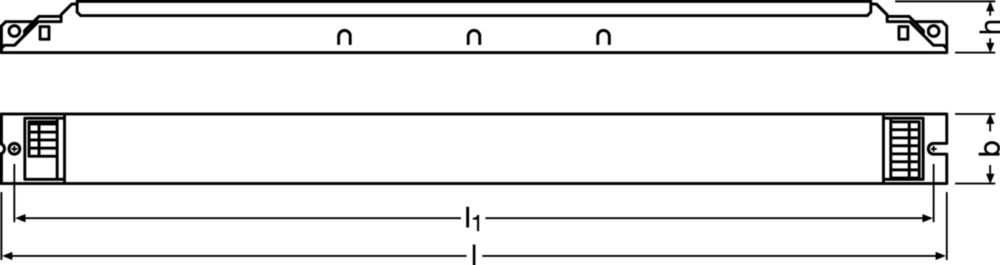

Dimensions	360 × 30 × 21 mm (l x w x h)
Certificates	CE, EL, VDE-ENEC, VDE-EMC, EAC, CCC, BIS, RCM
