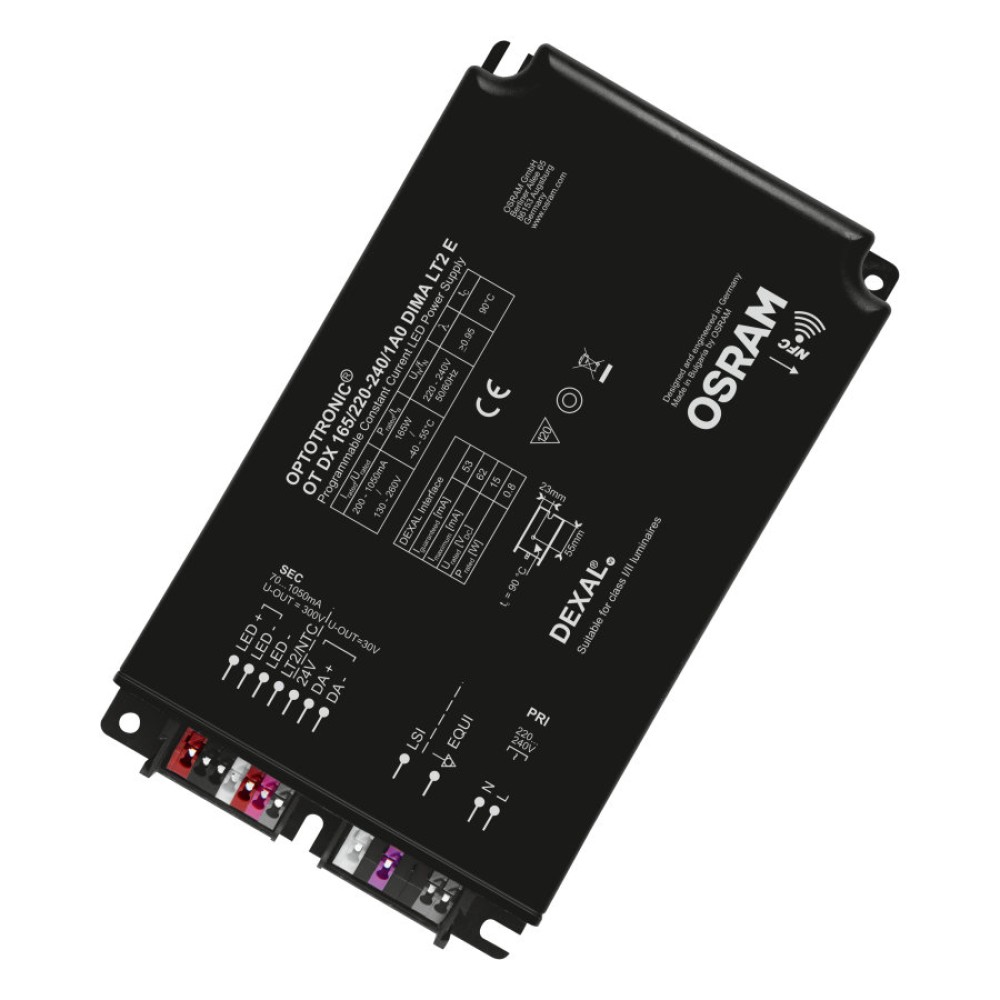

OT DX 165/220-240/1A0 DIMA LT2 E

EAN: 4052899999695
63,04 € (+ 20% VAT)

You need to register / log in to buy
Sales unit
  • 1 pcs
Product family features
  • DEXAL interface based on DALI-2 communication
  • Available with different wattage: 40 W, 75 W, 110 W, 165 W
  • Current output range: 70…1,050 mA
  • AstroDIM for autonomous dimming with five independent levels (astro, time mode)
  • Standby power consumption: < 0.5 W
  • I
  • ntegrated customizable thermal management (Driver Guard)
  • Constant Lumen Output (CLO)
Product family benefits
  • Zhaga Book18 compliant and D4i certified incl. Parts 25x + AUX
  • Electrical interface and data communication fully based on open standards
  • Fully programmable via software (DALI Interface, NFC)
  • Low luminous efficacy tolerance through low output current tolerance of ± 3 %
  • High surge protection: up to 10 kV (1 pulse) in protection class I or II
  • Lifetime: up to 100,000 h (depending on Tc temperature, max. 10 % failure rate)
  • Mains input undervoltage protection
  • Very high efficiency
  • Fulfill safety requirement due to overload, overtemperature, Hot Plug protection
Areas of application
  • Street and urban lighting
  • Industry
  • Suitable for outdoor applications in luminaires with IP > 54
  • Suitable for use in outdoor luminaires of protection class I
  • and II
Family data sheet View downloads

Products

Product Nominal output current Nominal output voltage Data sheet
OT DX 40/220-240/1A0 DIMA LT2 E 200…1050 mA 15…56 V
OT DX 75/220-240/1A0 DIMA LT2 E 200…1050 mA 35…115 V
OT DX 110/220-240/1A0 DIMA LT2 E 200…1050 mA 75…220 V
