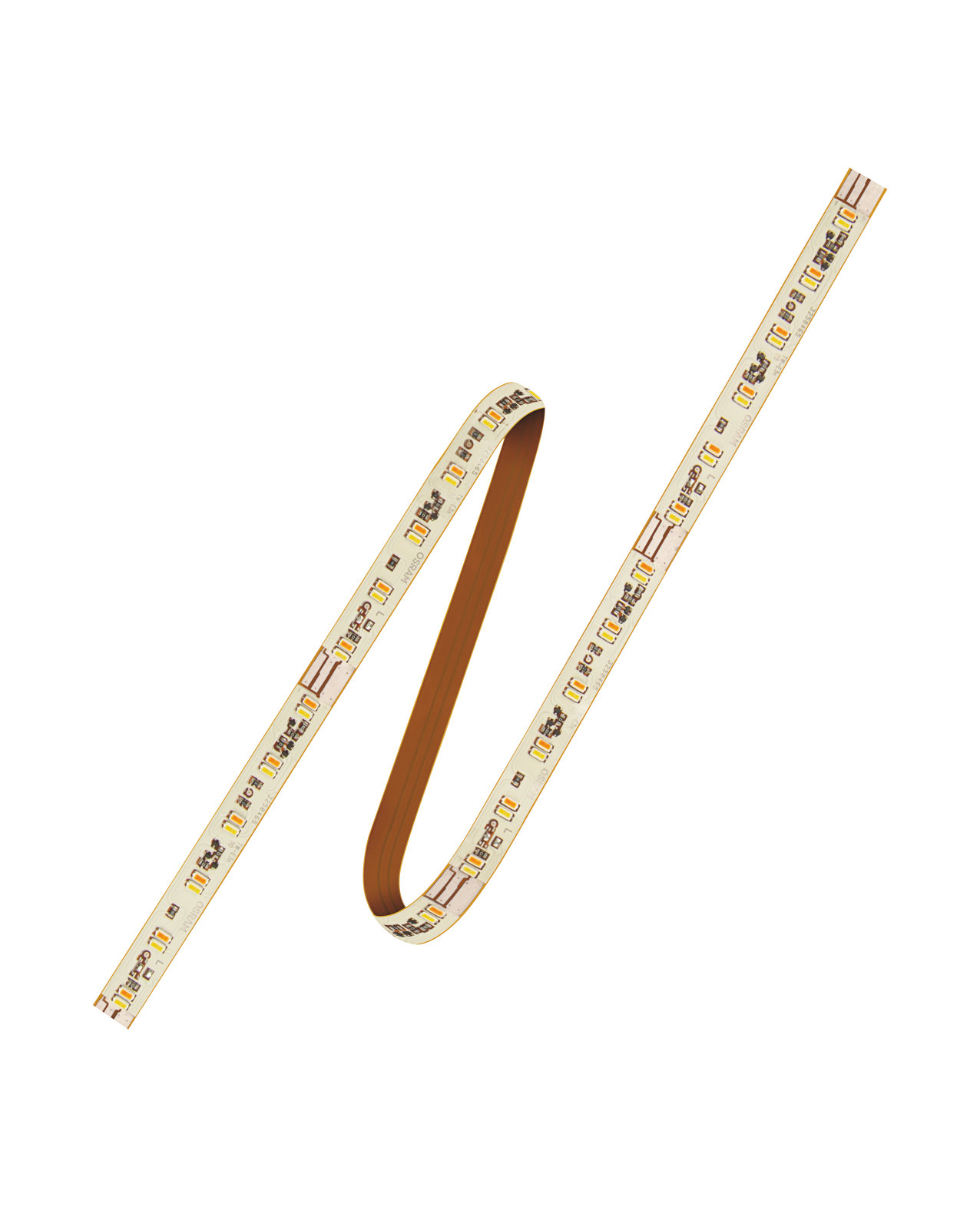

LINEARLIGHT FLEX TUNABLE WHITE PROTECT , LFP1100TW-G5-825.940-09 L2

EAN: 4062172196567
762,02 € (+ 20% VAT)

You need to register / log in to buy
Sales unit
  • Reel
Product family features
  • 24 V LED strips flexible and cuttable
  • Luminous flux: up to 3,400 lm/m
  • Up to 60,000 h L90/B10 with SDT technology, tested acc. To IEC 62717 on real LED strips
  • Adjustable color temp. via Tunable White: 2500…4000 K, 2700…5700 K, CRI90
  • Stable light flux over length: active constant current regulators (ICs), PWM safe
  • Embedded automatic quick protection against accidental miswiring up to 25 V
  • Fully PWM dimmable from zero up to 2.5 kHz, audible noise free, suitable for quite places
  • IP67 & IP66
  • Salt-mist atmosphere resistant (acc. to IEC 60068-2-52, highest severity)
  • UV radiation resistant (acc. to ISO 4892-2) / Mixed flowing gas corrosion resistant (IEC 60068-2-60
Product benefits
  • Color uniformity better than 3 SDCM on the entire LED strip and between strips
  • LED lifetime acc.to IES LM-80 and IES TM-21 standards, and also internal OSRAM LAB tests
  • Excellent robustness: single reel manufacturing technology (no solder joints on strip)
  • Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back
  • Extraordinary design and high quality materials
  • Pre-soldered wires (TWW versions)
Areas of application
  • Cove lighting
  • Shop lighting
  • Offices
Family data sheet View downloads

Products

Product Color rendering index Ra Color temperature Luminous flux per meter Data sheet
LINEARlight FLEX Tunable White Protect , LFP3400TW-G5-927.957-03 L1 90 2700…5700 K 3356 lm
LINEARlight FLEX Tunable White Protect , LFP3400TW-G5-825.940-03 L1 80 2500…4000 K 3356 lm
LINEARlight FLEX Tunable White Protect , LFP1100TW-G5-927.957-09 L2 90 2700…5700 K 1156 lm
