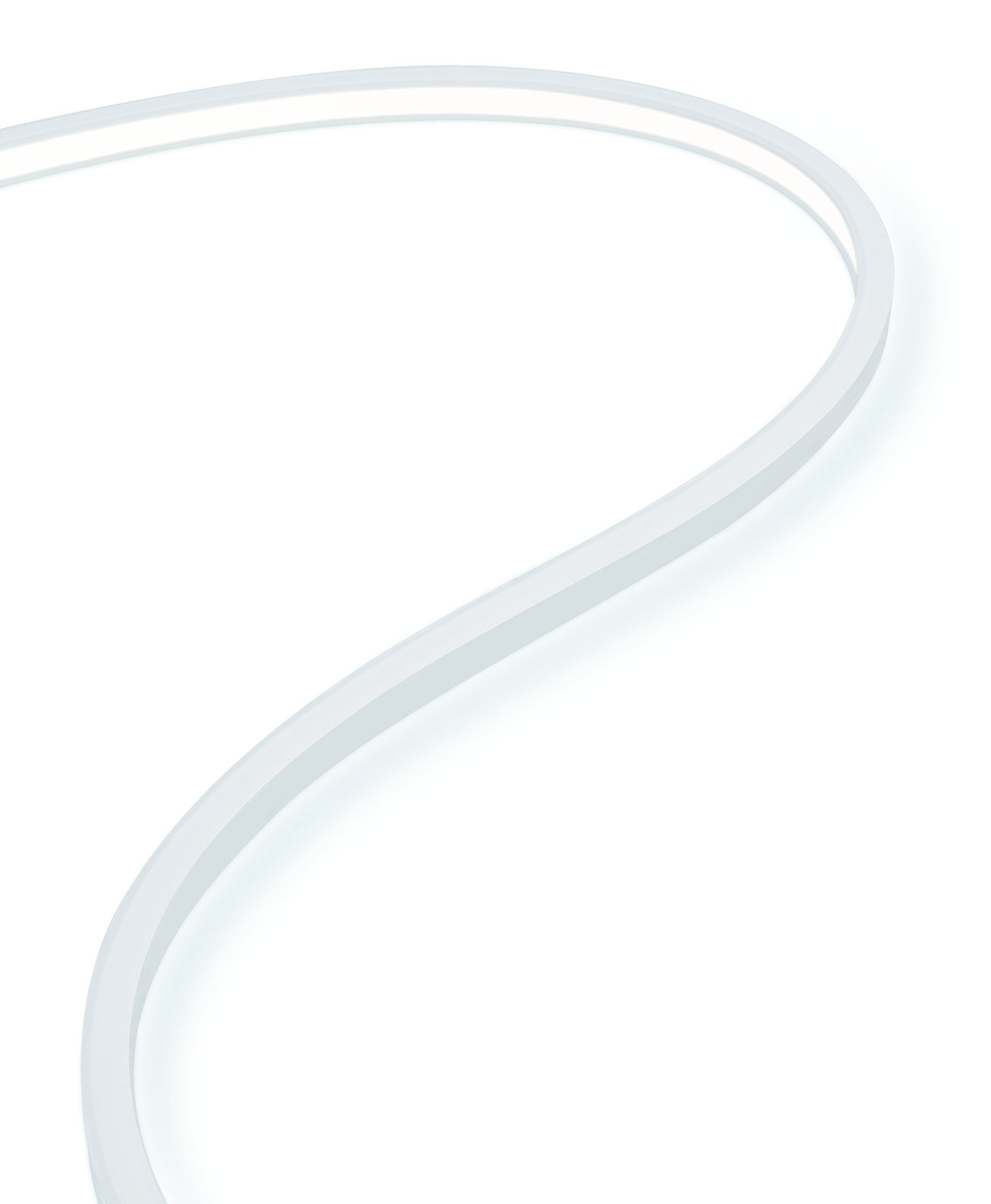

Products / LINEARLIGHT FLEX DIFFUSE SIDE WHITE, LFD600S-G1-965-06 69.12W 24V IP66/IP67

LINEARLIGHT FLEX DIFFUSE SIDE WHITE, LFD600S-G1-965-06 69.12W 24V IP66/IP67

EAN: 4062172025904

823,85 € (+ 20% VAT)

You need to register / log in to buy

Sales unit

Length 6000mm

Product features

Diffused light lines without visible spots
Flexible and cuttable module to support design freedom
Long operational length per single power feed possible (up to 6m)
Ideal for luminaire designs
Extra strong self-adhesive backside for easy mounting
24V technology for easy dimensioning
Recommended in system use with OPTOTRONIC
Increased reliability due to single piece reel-to-reel technology
Dimmable with PWM technology

Product benefits

IP67 protection with high performance silicone
Outdoor use possible: UV and salt mist resistant (UV acc. to ISO 4892-2 - Method A, salt mist acc. to IEC 60068-2-52 severity 1)

Areas of application

Individual and customized luminaires
Organic shaped luminaires
Architectural Integration – e.g. coves, walls
Object integration – e.g. handrails
Signage and illuminated advertising

Family data sheet View downloads

Products

Product	Color rendering index Ra	Luminous flux per meter	Color temp	Data sheet
LINEARlight FLEX DIFFUSE Side White, LFD600S-G1-830-06 69.12W 24V IP66/IP67	≥80	680 lm	2850 K
LINEARlight FLEX DIFFUSE Side White, LFD600S-G1-840-06 69.12W 24V IP66/IP67	≥80	680 lm	4080 K
LINEARlight FLEX DIFFUSE Side White, LFD600S-G1-865-06 69.12W 24V IP66/IP67	≥80	560 lm	6420 K
LINEARlight FLEX DIFFUSE Side White, LFD600S-G1-924-06 69.12W 24V IP66/IP67	≥90	510 lm	2300 K
LINEARlight FLEX DIFFUSE Side White, LFD600S-G1-930-06 69.12W 24V IP66/IP67	≥90	550 lm	2835 K
LINEARlight FLEX DIFFUSE Side White, LFD600S-G1-935-06 69.12W 24V IP66/IP67	≥90	570 lm	3560 K
LINEARlight FLEX DIFFUSE Side White, LFD600S-G1-940-06 69.12W 24V IP66/IP67	≥90	570 lm	4025 K
LINEARlight FLEX DIFFUSE Side White LFD600S-G2-824-06135W 24V IP66/IP67	≥80	590 lm	2400 K
LINEARlight FLEX DIFFUSE Side White LFD600S-G2-827-06135W 24V IP66/IP67	≥80	630 lm	2700 K
LINEARlight FLEX DIFFUSE Side White LFD600S-G2-830-06135W 24V IP66/IP67	≥80	680 lm	3000 K
LINEARlight FLEX DIFFUSE Side White LFD600S-G2-835-06135W 24V IP66/IP67	≥80	690 lm	3500 K
LINEARlight FLEX DIFFUSE Side White LFD600S-G2-840-06135W 24V IP66/IP67	≥80	690 lm	4000 K
LINEARlight FLEX DIFFUSE Side White LFD600S-G2-865-06135W 24V IP66/IP67	≥80	630 lm	6500 K
LINEARlight FLEX DIFFUSE Side White LFD600S-G2-924-06135W 24V IP66/IP67	≥90	540 lm	2400 K
LINEARlight FLEX DIFFUSE Side White LFD600S-G2-927-06135W 24V IP66/IP67	≥90	600 lm	2700 K
LINEARlight FLEX DIFFUSE Side White LFD600S-G2-930-06135W 24V IP66/IP67	≥90	600 lm	3000 K
LINEARlight FLEX DIFFUSE Side White LFD600S-G2-935-06135W 24V IP66/IP67	≥90	620 lm	3500 K
LINEARlight FLEX DIFFUSE Side White LFD600S-G2-940-06135W 24V IP66/IP67	≥90	620 lm	4000 K
LINEARlight FLEX DIFFUSE Side White LFD600S-G2-965-06135W 24V IP66/IP67	≥90	580 lm	6500 K
