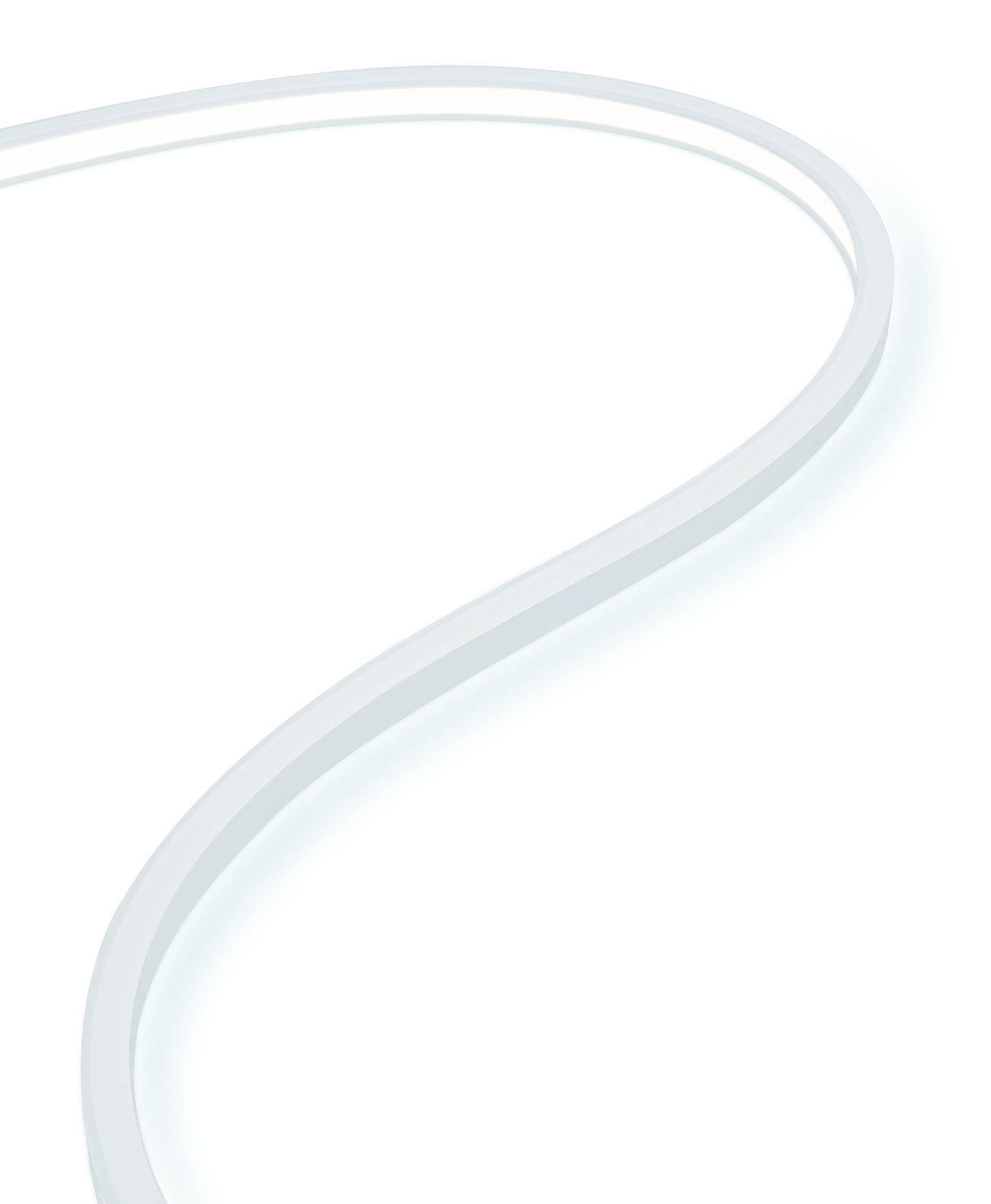

LINEARLIGHT FLEX DIFFUSE SIDE WHITE LFD400S-G2-827-10 89W 24V IP66/IP67

EAN: 4062172274012
1 207,63 € (+ 20% VAT)

You need to register / log in to buy
Sales unit
  • Length 10000mm
Product features
  • Diffused light lines without visible spots
  • Flexible and cuttable module to support design freedom
  • Long operational length per single power feed possible (up to 6m)
  • Ideal for luminaire designs
  • Extra strong self-adhesive backside for easy mounting
  • 24V technology for easy dimensioning
  • Recommended in system use with OPTOTRONIC
  • Increased reliability due to single piece reel-to-reel technology
  • Dimmable with PWM technology
Product benefits
  • IP67 protection with high performance silicone
  • Outdoor use possible: UV and salt mist resistant (UV acc. to ISO 4892-2 - Method A, salt mist acc. to IEC 60068-2-52 severity 1)
Areas of application
  • Individual and customized luminaires
  • Organic shaped luminaires
  • Architectural Integration – e.g. coves, walls
  • Object integration – e.g. handrails
  • Signage and illuminated advertising
Family data sheet View downloads

Products

Product Color rendering index Ra Color temp Luminous flux per meter Color temperature Data sheet
LINEARlight FLEX DIFFUSE Side White LFD400S-G2-830-10 89W 24V IP66/IP67 ≥80 3000 K 460 lm
LINEARlight FLEX DIFFUSE Side White, LFD400S-G1-827-06 43.20W 24V IP66/IP67 ≥80 2590 K 430 lm
LINEARlight FLEX DIFFUSE Side White, LFD400S-G1-830-06 43.20W 24V IP66/IP67 ≥80 2845 K 450 lm
LINEARlight FLEX DIFFUSE Side White, LFD400S-G1-835-06 43.20W 24V IP66/IP67 ≥80 3575 K 450 lm
LINEARlight FLEX DIFFUSE Side White, LFD400S-G1-840-06 43.20W 24V IP66/IP67 ≥80 4065 K 450 lm
LINEARlight FLEX DIFFUSE Side White, LFD400S-G1-865-06 43.20W 24V IP66/IP67 ≥80 6900 K 380 lm
LINEARlight FLEX DIFFUSE Side White, LFD400S-G1-924-06 43.20W 24V IP66/IP67 ≥90 340 lm 2305 K
LINEARlight FLEX DIFFUSE Side White, LFD400S-G1-930-06 43.20W 24V IP66/IP67 ≥90 370 lm 2845 K
LINEARlight FLEX DIFFUSE Side White, LFD400S-G1-935-06 43.20W 24V IP66/IP67 ≥90 3595 K 390 lm
LINEARlight FLEX DIFFUSE Side White, LFD400S-G1-940-06 43.20W 24V IP66/IP67 ≥90 4085 K 390 lm
LINEARlight FLEX DIFFUSE Side White, LFD400S-G1-965-06 43.20W 24V IP66/IP67 ≥90 6790 K 380 lm
LINEARlight FLEX DIFFUSE Side White LFD400S-G2-824-10 89W 24V IP66/IP67 ≥80 2400 K 390 lm
LINEARlight FLEX DIFFUSE Side White LFD400S-G2-835-10 89W 24V IP66/IP67 ≥80 3500 K 460 lm
LINEARlight FLEX DIFFUSE Side White LFD400S-G2-840-10 89W 24V IP66/IP67 ≥80 4000 K 460 lm
LINEARlight FLEX DIFFUSE Side White LFD400S-G2-865-10 89W 24V IP66/IP67 ≥80 6500 K 440 lm
LINEARlight FLEX DIFFUSE Side White LFD400S-G2-924-10 89W 24V IP66/IP67 ≥90 2400 K 390 lm
LINEARlight FLEX DIFFUSE Side White LFD400S-G2-927-10 89W 24V IP66/IP67 ≥90 2700 K 400 lm
LINEARlight FLEX DIFFUSE Side White LFD400S-G2-930-10 89W 24V IP66/IP67 ≥90 3000 K 430 lm
LINEARlight FLEX DIFFUSE Side White LFD400S-G2-935-10 89W 24V IP66/IP67 ≥90 3500 K 430 lm
LINEARlight FLEX DIFFUSE Side White LFD400S-G2-940-10 89W 24V IP66/IP67 ≥90 4000 K 390 lm
LINEARlight FLEX DIFFUSE Side White LFD400S-G2-965-10 89W 24V IP66/IP67 ≥90 6500 K 390 lm
