Inventronics LFP600RGB-G5-06
LINEARlight FLEX Colormix Protect · IP68 · RGB · 24 · EAN 6937186129581
Product family features
- Flexible and cuttable LED strip with inline multichip RGB LEDs
- RGB: binning on white point (RGB mix)
- Type of protection: IP67
- Dimmable with PWM technology
- Salt mist proof
- Uniform color changing
- Great design freedom thanks to flexibility and cuttability of module
- High-performance silicone for extremely long life and flexibility
- Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back
- Extraordinary design and high quality materials
- Toolless connection with the optional CONNECTsystem
- Facade accent lighting
- Effect lighting in architecture
- Edge coupling
- Path lighting
- Suitable for outdoor use
- Simplified connection with optional matching CONNECTsystem
- Quick installation with optional SLIM TRACK System
- Perfectly matched to OPTOTRONIC 24 V electronic control gears
| Nominal voltage (V) | 24.0 |
| Power per meter (W) | 15.6 |
| Luminous efficacy (lm/W) | 37 |
| Luminous flux per meter (lm) | 570 |
| Total luminous flux (lm) | 3420 |
| Light color | Red, Green, Blue |
| LEDs per meter | 50 |
| Smallest unit (mm) | 100.0 |
| Lowest bending radius (mm) | 50 |
| Reel length (mm) | 6000 |

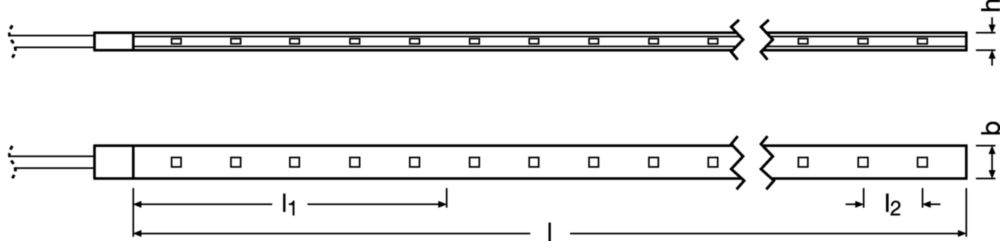

| Profile W × H (mm) | 11.1 × 4.5 mm |
| Type of protection (IP) | IP68 |
Downloads
LINEARlight_FLEX_Colormix_LFP600RGB_SpecSheet_IP67 · Product Datasheet · 612.29kB
⭳ download
CED_I E10 Flex Colormix RGB G5 brand Inventronics · Certificates · 118.99kB
⭳ download
LINEARlight FLEX Protect Colormix LFP600RGB-G5 · User instruction · 1.2MB
⭳ download
