Inventronics LFP3400TW-G5-927.957-03
LINEARlight FLEX Tunable White Protect · IP67 · 2700–5700 K · CRI90 · EAN 6937186129444
Product family features
- 24 V LED strips flexible and cuttable
- Luminous flux: up to 3,400 lm/m
- Up to 60,000 h L90/B10 with SDT technology, tested acc. to IEC 62717 on real LED strips
- Adjustable color temp. via Tunable White: 2500…4000 K, 2700…5700 K CRI90
- CRI 90 versions available
- Stable light flux over length: active constant current regulators (ICs), PWM safe
- Embedded automatic quick protection against accidental miswiring up to 25 V
- Fully PWM dimmable from zero up to 2.5 kHz, audible noise free, suitable for quite places
- IP67 & IP66
- Salt-mist atmosphere resistant (acc. to IEC 60068-2-52, highest severity)
- UV radiation resistant (acc. to ISO 4892-2) / Mixed flowing gas corrosion resistant (IEC 60068-2-60)
- Designed, engineered and manufactured and tested in Italy (ISO9001, ISO 17025, ACCREDIA, VDE)
- Color uniformity better than 3 SDCM on the entire LED strip and between strips
- LED lifetime acc.to IES LM-80 and IES TM-21 standards
- Excellent robustness: single reel manufacturing technology (no solder joints on strip)
- Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back
- Extraordinary design and high quality materials
- Flexessories: a complete set of aluminum channels with diffusers and lenses
- Drivers and dimmers: wide selection of OPTOTRONIC 24 V DALI, DMX and BLE
- Check for more detailed information the specification sheets in the download section
| Nominal voltage (V) | 24.0 |
| Power per meter (W) | 32 |
| Luminous efficacy (lm/W) | 105 |
| Luminous flux per meter (lm) | 3356 |
| Total luminous flux (lm) | 10068 |
| Light color | Dynamic White |
| CRI (Ra) | 90 |
| Color temperature (K) | 2700–5700 K |
| SDCM | <=3 |
| LEDs per meter | 187 |

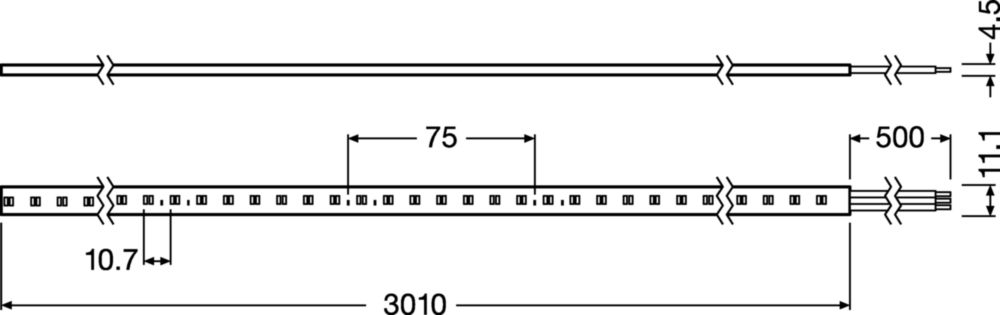

| Smallest unit (mm) | 75.0 |
| Lowest bending radius (mm) | 50 |
| Ambient temp. Ta (°C) | -30…+50 |
| Reel length (mm) | 3000 |
| Profile W × H (mm) | 11.1 × 4.5 mm |
| Type of protection (IP) | IP67 |
Downloads
CED_I E10 Flex Protect TW G2 brand Inventronics · Certificates · 118.51kB
⭳ download
LINEARlight_Flex_Tunable_White_IP66_SpecSheet · Product Datasheet · 1.53MB
⭳ download
LINEARlight FLEX Protect Tunable White · User instruction · 1.69MB
⭳ download
