Inventronics LFP300RGB-G5-06 C
LINEARlight FLEX Colormix Protect · IP67 · RGB · CRI80 · EAN 6937186129604
Product family features
- Flexible and cuttable LED strip with inline multichip RGB LEDs
- RGB: binning on white point (RGB mix)
- Type of protection: IP67
- Dimmable with PWM technology
- Salt mist proof
- Uniform color changing
- Great design freedom thanks to flexibility and cuttability of module
- High-performance silicone for extremely long life and flexibility
- Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back
- Extraordinary design and high quality materials
- Toolless connection with the optional CONNECTsystem
- Facade accent lighting
- Effect lighting in architecture
- Edge coupling
- Path lighting
- Suitable for outdoor use
- Simplified connection with optional matching CONNECTsystem
- Quick installation with optional SLIM TRACK System
- Perfectly matched to OPTOTRONIC 24 V electronic control gears
| Nominal voltage (V) | 24.0 |
| Power per meter (W) | 7.9 |
| Luminous efficacy (lm/W) | 38 |
| Luminous flux per meter (lm) | 300 |
| Total luminous flux (lm) | 1800 |
| Light color | Red, Green, Blue |
| CRI (Ra) | 80 |
| Color temperature (K) | 3000 |
| SDCM | <=3 |
| LEDs per meter | 33 |
| Smallest unit (mm) | 150.0 |
| Lowest bending radius (mm) | 20 |
| Reel length (mm) | 6000 |

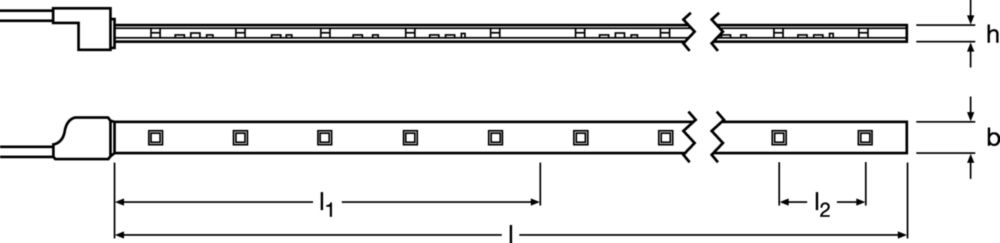

| Profile W × H (mm) | 11.1 × 4.5 mm |
| Type of protection (IP) | IP67 |
Downloads
CED_I E10 Flex Colormix RGB G5 brand Inventronics · Certificates · 118.99kB
⭳ download
LINEARlight_FLEX_Colormix_LFP300RGB_SpecSheet_IP67 · Product Datasheet · 587.06kB
⭳ download
LINEARlight FLEX Protect Colormix LFP300RGB G5 · User instruction · 1.19MB
⭳ download
