Inventronics IT FIT 40/220-240/1A0 CS

Product family features

• Supply voltage: 220…240 V
• Line frequency: 50 Hz | 60 Hz
• Line voltage: 198…254 V

Product family benefits

• Higher quality of light thanks to low output ripple current
• High flexibility due to eight different output currents
• Small housing for flexible luminaire designs
• High efficiency
• Long lasting and high reliability
• Safety ensured by Inventronics (SELV)

Areas of application

• Suitable for downlights, spotlights and LED panels
• Suitable for indoor SELV installations
• Installation and independent mounting via Cable Clamp Kit possible

Ecodesign regulation information:Intended for use with LED modules.The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.

Output power	16.1…44.1 W
Output current	700 mA, 750 mA, 800 mA, 850 mA, 900 mA, 950 mA, 1000 mA, 1050 mA
Isolation	SELV
Protection (IP)	IP20
Programming interface	Dipswitch
Emergency lighting	No

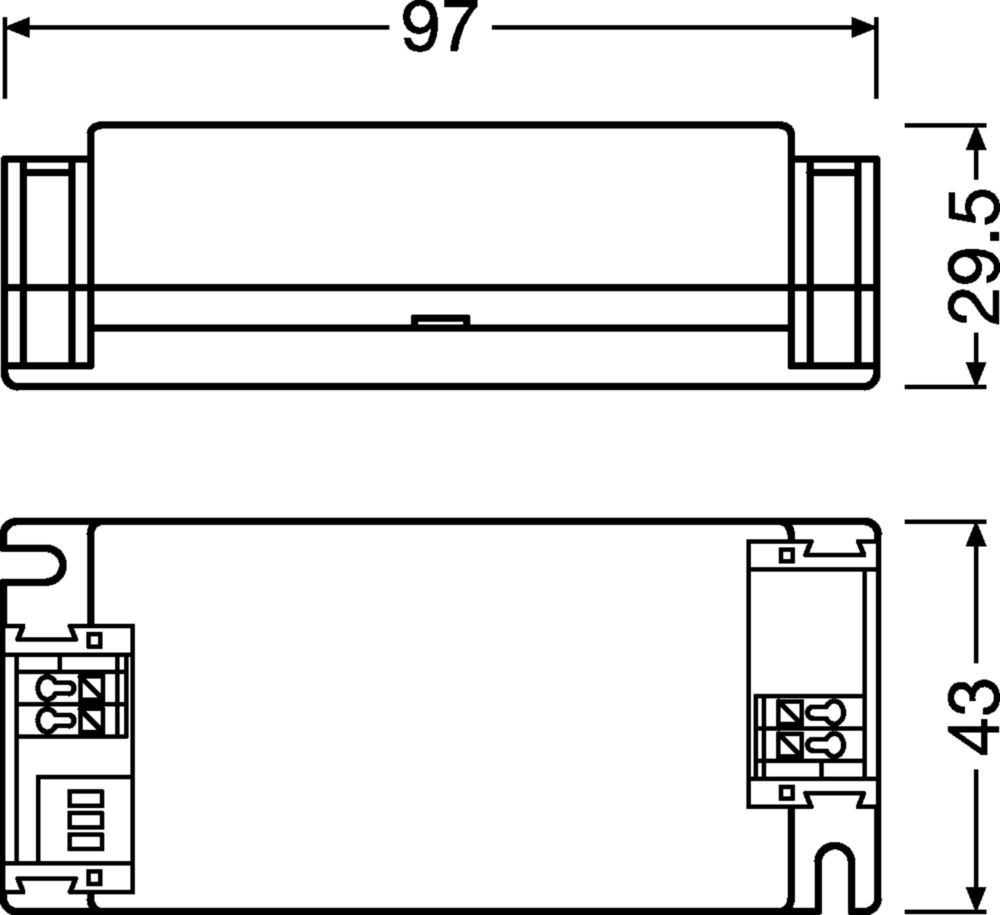

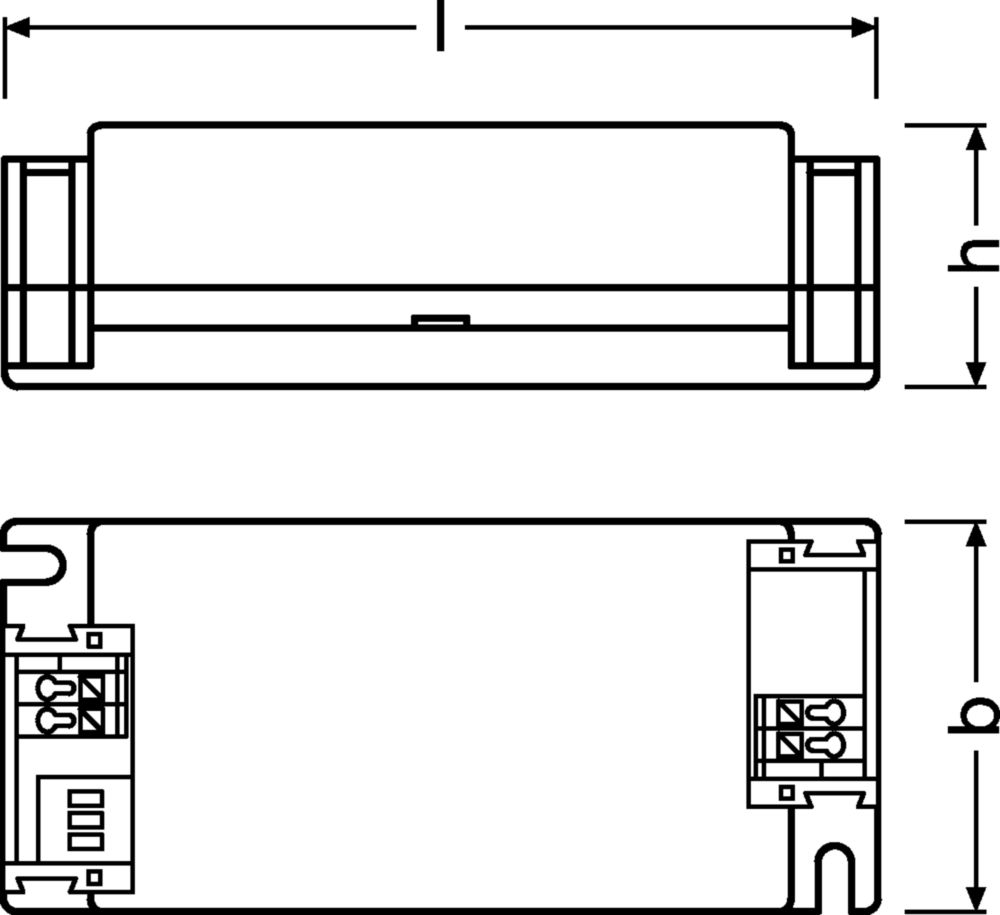

Dimensions	97 × 43 × 29.5 mm (l x w x h)
Certificates	CE, CCC, RCM, UKCA, ENEC 25
