Inventronics IT FIT 15/220-240/350 CS R

Product family features

• Supply voltage: 220…240 V
• Line frequency: 50 Hz | 60 Hz
• Line voltage: 198…264 V

Product family benefits

• Higher quality of light thanks to < 3% output ripple current
• Operating temperature: up to 60 °C
• Flexible current selection via DIP switch
• Reversible overtemperature, overload, short-circuit and open-circuit protection
• High efficiency (up to 92%)

Areas of application

• Extra small design for integration in small spotlights
• Suitable for luminaires of protection classes I and II
• Suitable for indoor SELV installations

Ecodesign regulation information:Intended for use with LED modules.The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.

Output power	7.5…14 W
Output current	250 mA, 350 mA
Isolation	SELV
Protection (IP)	IP20
Programming interface	Dipswitch
Emergency lighting	No

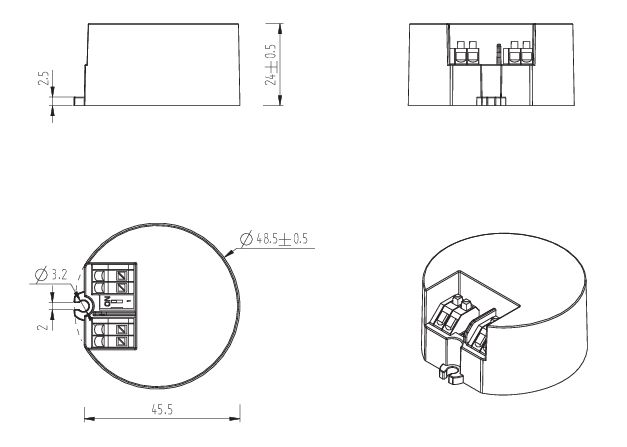

Dimensions	48.5 × 48.5 × 24 mm (l x w x h)
Certificates	CE, ENEC, CCC, RCM
