Inventronics IT DALI 20/220-240/1A0 E

Product family features

• Supply voltage: 220…240 V
• AstroDim functionality
• Constant Lumen Output (CLO)
• Available with different wattage: 20 W, 40 W, 75 W, 110 W, 150 W, 200 W
• Output current range 350…1050 mA
• DALI-2 certified (Part -251, -252, -253)
• DALI dimming (min.10%)

Product family benefits

• Versatile DALI driver due to flexible output characteristic
• High surge protection: up to 10 kV (single pulse or more)
• Long lasting and high reliability
• Fully programmable via T4T software (DALI / AstroDIM / Constant Lumen)
• 5 years guarantee
• Great flexibility due to wide operating temperature range of up to -40…60 °C (+55°C for some products)
• Lifetime: up to 100,000 h (depending on T_c temperature, max. 10 % failure rate)
• High efficiency
• High-quality amplitude dimming

Areas of application

• Street and urban lighting
• Industry
• Suitable for outdoor applications in luminaires with IP > 54
• Suitable for use in outdoor luminaires of protection class I and II

References / Links* For more information on the multi-level guarantee and the terms and conditions of the guarantee visit https://www.inventronics-light.com/multilevel-guarantees

Ecodesign regulation information:Intended for use with LED modules.The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.

Output power	20 W
Output current	350…1050 mA
Isolation	SELV
Protection (IP)	IP20
Programming interface	n/a
Emergency lighting	No

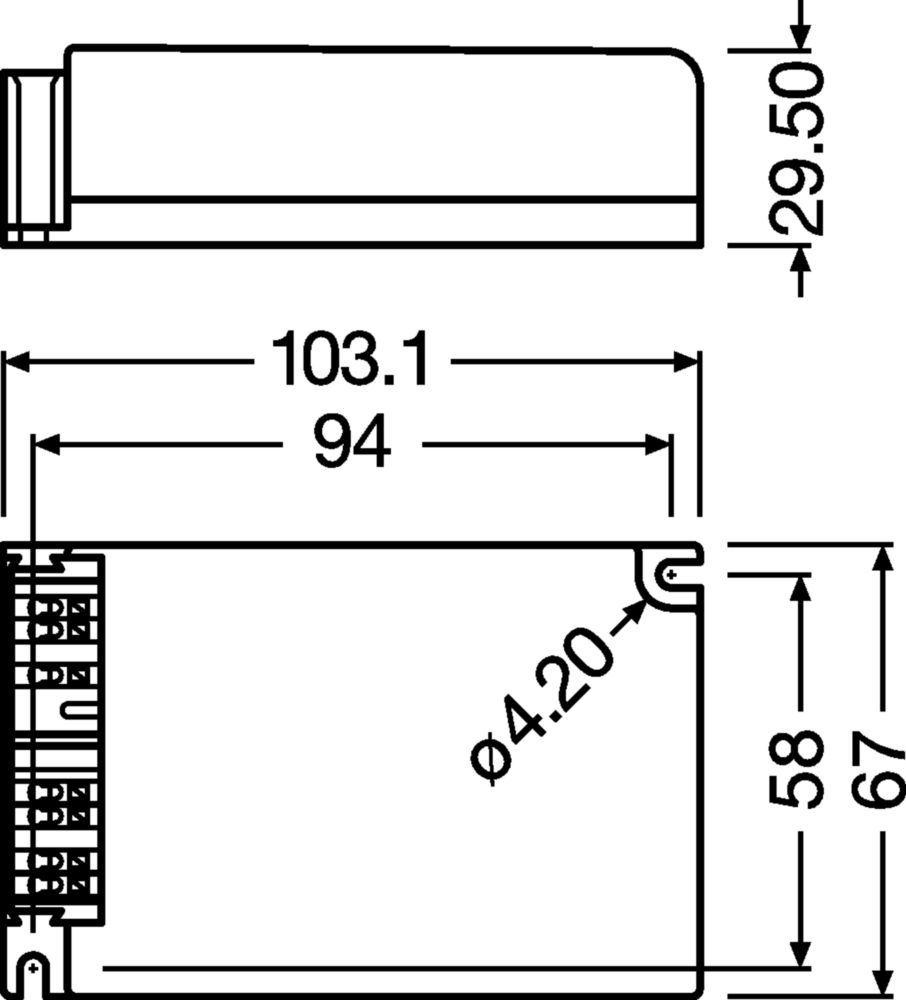

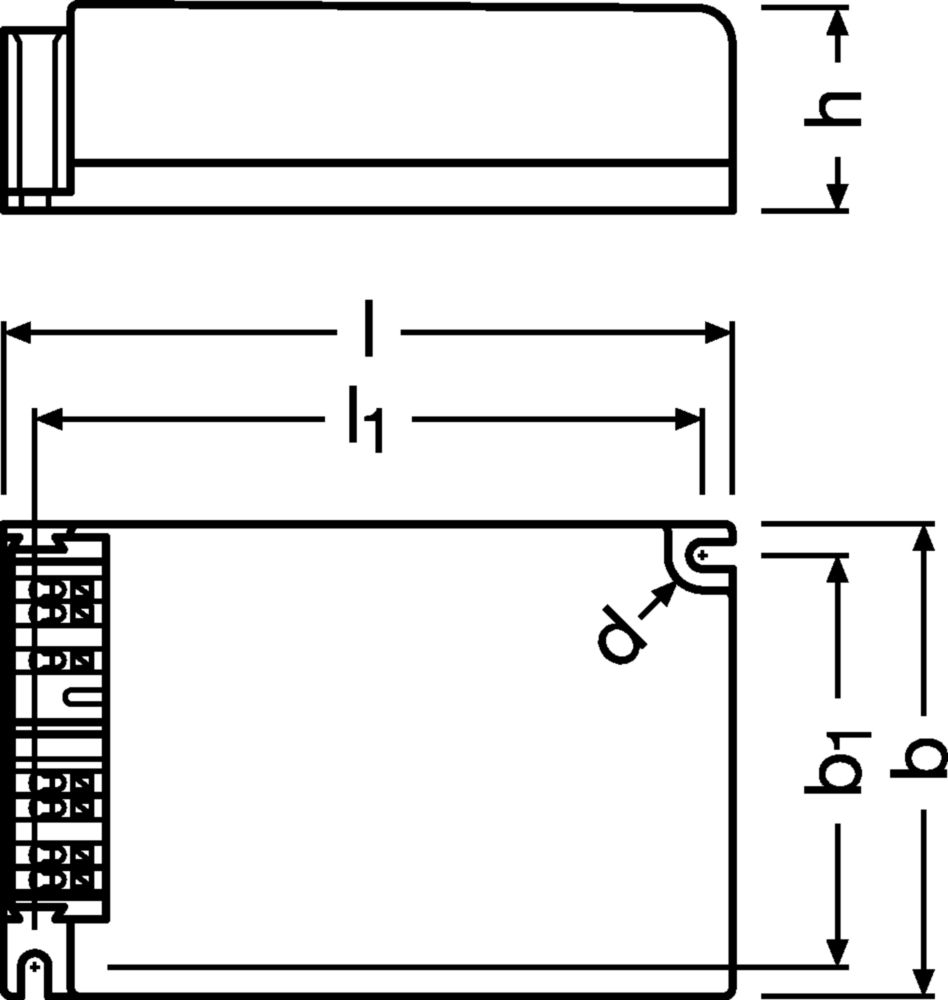

Dimensions	103.1 × 67 × 29.5 mm (l x w x h)
Certificates	CE, CCC, EAC, RCM, VDE, VDE-EMC, UKCA, DALI-2, ENEC
