Inventronics EM FIT 60/220-240/1A2 CS L G3
CC Linear Indoor · 61 W · 900 mA, 1050 mA, 1100 mA, 1200 mA · SELV · EAN 6937186176547
Product family features
- Line frequency: 0 Hz | 50 Hz | 60 Hz
- Supply voltage: 220…240 V
- Lifetime 50 000 h at tc max
- Type of protection: IP20
- Non-isolated drivers
- SELV driver
- Low THD <10% @ full load
- Halogen free polycarbonate plastic housing
- Small, slim white metal housing (W )30 x (H)21 mm
- Flexible current setting (DIPswitch – 4 currents)
- High efficiency and reliability
- Enhanced safety due to overload, overtemperature, short-circuit protection
- High light quality due to low ripple current
- Long lasting and high reliability
- Linear and area lighting
- Linear lighting for office, school and public areas
- Suitable for luminaires of protection class I
- Industry
- Emergency lighting
- Build-in Use
| Output power | 24.2…61.2 W |
| Output current | 900 mA, 1050 mA, 1100 mA, 1200 mA |
| Isolation | SELV |
| Protection (IP) | IP20 |
| Programming interface | Dipswitch |
| Emergency lighting | Yes |

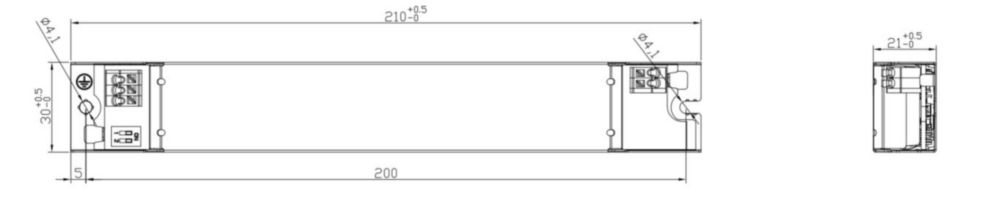

| Dimensions | 210 × 30 × 21 mm (l x w x h) |
| Certificates | CE, CCC, RCM, ENEC 10, EL, VDE |
Downloads
CCC_ELEMENT FIT G3_ZH · Certificates · 4.34MB
⭳ download
CB_336887_70508 · Certificates · 106.73kB
⭳ download
VDE_ENEC 40061455_300-ELEMENT FIT G3 · Certificates · 265.47kB
⭳ download
CCC_ELEMENT FIT G3_EN · Certificates · 4.45MB
⭳ download
UI_G15132012_EM_FIT_CS_L_G3 · User instruction · 2.57MB
⭳ download
EM FIT 60 220-240 1A2 CS L G3 · Product Datasheet · 508.4kB
⭳ download
