Inventronics EM FIT 34/220-240/0A85 DS C CCT

Product family features

• Supply voltage: 220…240 V
• Fixed output (no dimming)
• CCT selection via switch
• SELV

Product family benefits

• Higher quality of light thanks to < 5% output ripple current
• High efficiency
• CCT selection via switch

Areas of application

• Suitable for downlights, spotlights and LED panels
• Suitable for indoor SELV installations

Ecodesign regulation information:Intended for use with LED modules.The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.

Output power	16.5…34 W
Output current	550 mA, 650 mA, 750 mA, 850 mA
Isolation	SELV
Protection (IP)	IP20
Programming interface	Dipswitch
Emergency lighting	No

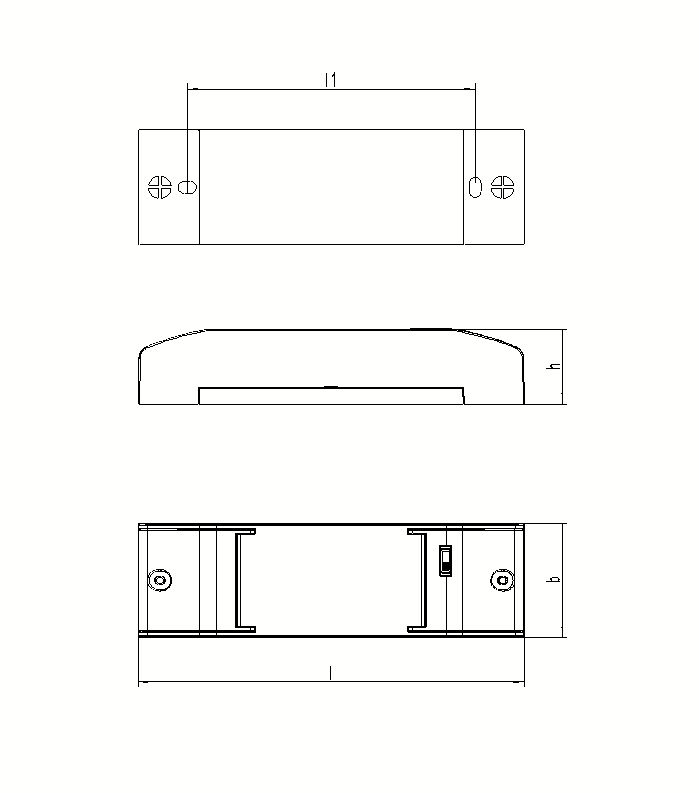

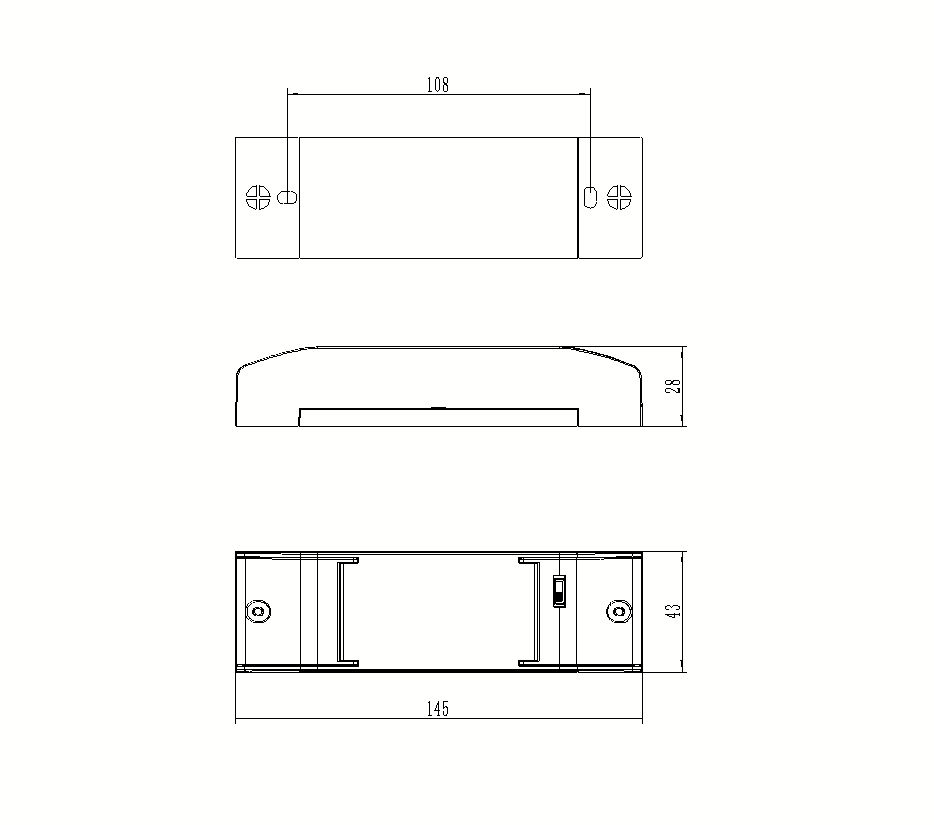

Dimensions	145 × 43 × 28 mm (l x w x h)
Certificates	CE, ENEC, VDE, RCM
