Inventronics ELEMENT 180/220-240/12 G2
CV Indoor · 180 W · SELV · IP20 · EAN 6937186161932
Product family features
- Linear form factor
- Power factor: >0.95 at full load
- Total Harmonic Distortion (THD): < 15%
- Output voltage tolerance: < 3%
- Up to 30,000 h @ Tc max / up to 50,000 h @ Tc -10 °C
- Lifetime: up to 30,000 h (temperature at max. tc )
- High efficiency (up to 91 %)
- Higher quality of light thanks to < 3% output ripple current
- Excellent price/performance ratio
- Class II design for wide application
- 3 years guarantee
- Decorative lighting in hospitality, restaurants and Shops
- Shelf lighting
- Cove lighting
- Under cabinet lighting
| Output power | 180 W |
| Output current | not relevant mA |
| Isolation | SELV |
| Protection (IP) | IP20 |
| Programming interface | n/a |
| Emergency lighting | No |

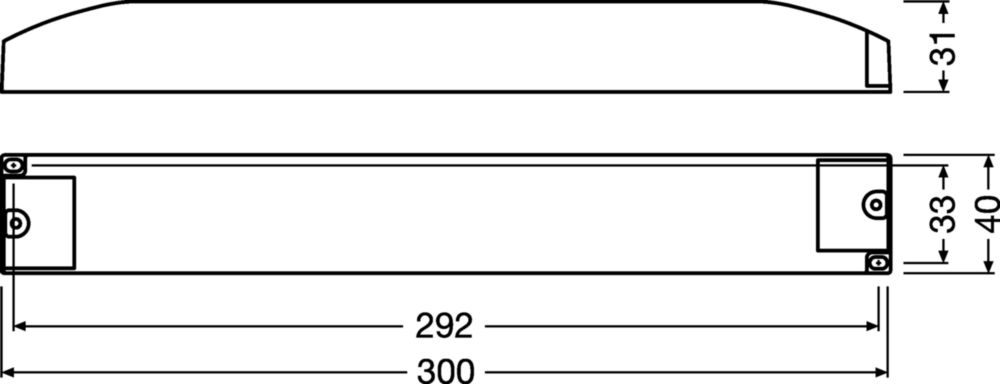

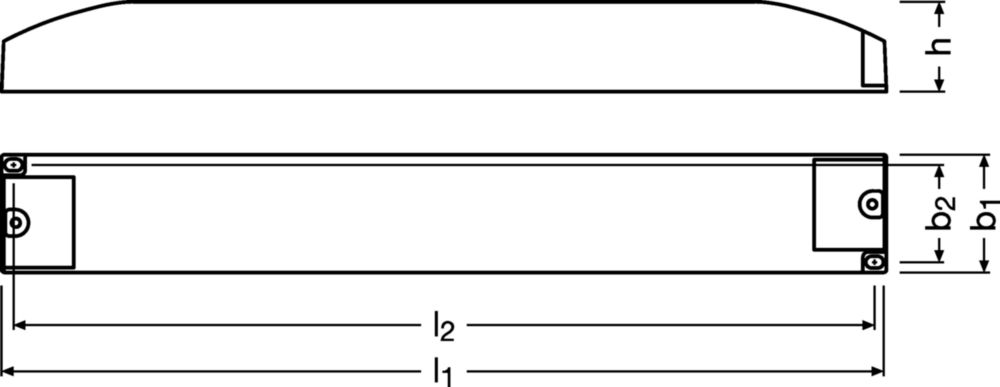

| Dimensions | 300 × 40 × 31 mm (l x w x h) |
| Certificates | BIS, CCC, CE, MM, RCM, UKCA |
Downloads
CED ELEMENT xx 12V G2 family 2025-03 · Certificates · 133.03kB
⭳ download
