Inventronics BX-M-CP-830-G5
BoxLED M CP G5 · IP66 · 3000K · CRI80 · EAN 6937186140845
Product family features

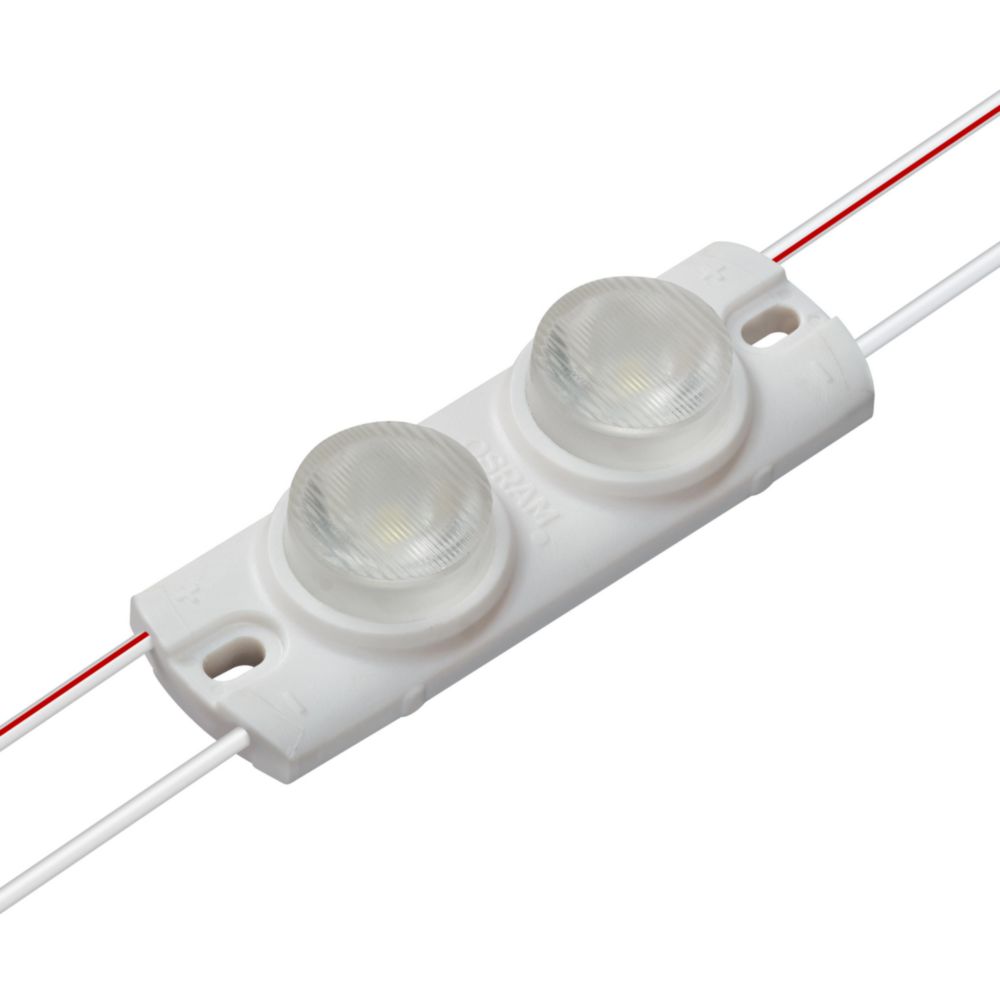

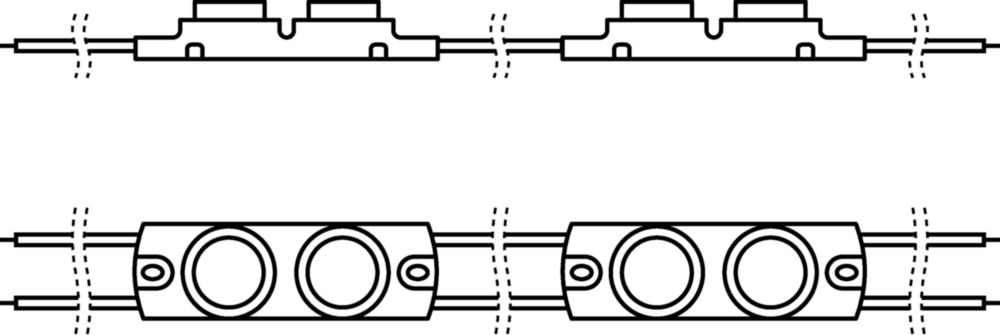

- Chain of 32 linear LED modules
- Connected with flexible cables
- Maximum length of one chain: 9.80 m
- Type of protection (modules): IP66
- CE marked, ENEC certified, UL recognized component
- Fully integrated heat sink
- Modules are compatible with BackLED mounting profile
- Uniform illumination thanks to optimized elliptical lenses
- Several options for quick and simple mounting: bolting or snap-in
- Excellent module efficacy
- Consistent white light (Standard Deviation of Color Matching SDCM: 3)
- Very long lifetime
- 5 year guarantee
- Several types of OPTOTRONIC and ELEMENT 24 V power supplies
- BoxLED mounting profile BX-MP-M-CP-G5-2M
- BoxLED cable clip BX-CLIP-M-G5
| Nominal voltage (V) | 24.0 |
| Luminous efficacy (lm/W) | 81 |
| Modules per pack | 32 |
| Luminous flux per module (lm) | 237 |
| Total luminous flux, full pack (lm) | 7571 |
| Light color | Warm white |
| CRI (Ra) | 80 |
| Color temperature (K) | 3000 |
| SDCM | <=3 |
| Dimensions | 79.0 × 25.0 × 15.7 mm (L × W × H) |
| Type of protection (IP) | IP66 |
