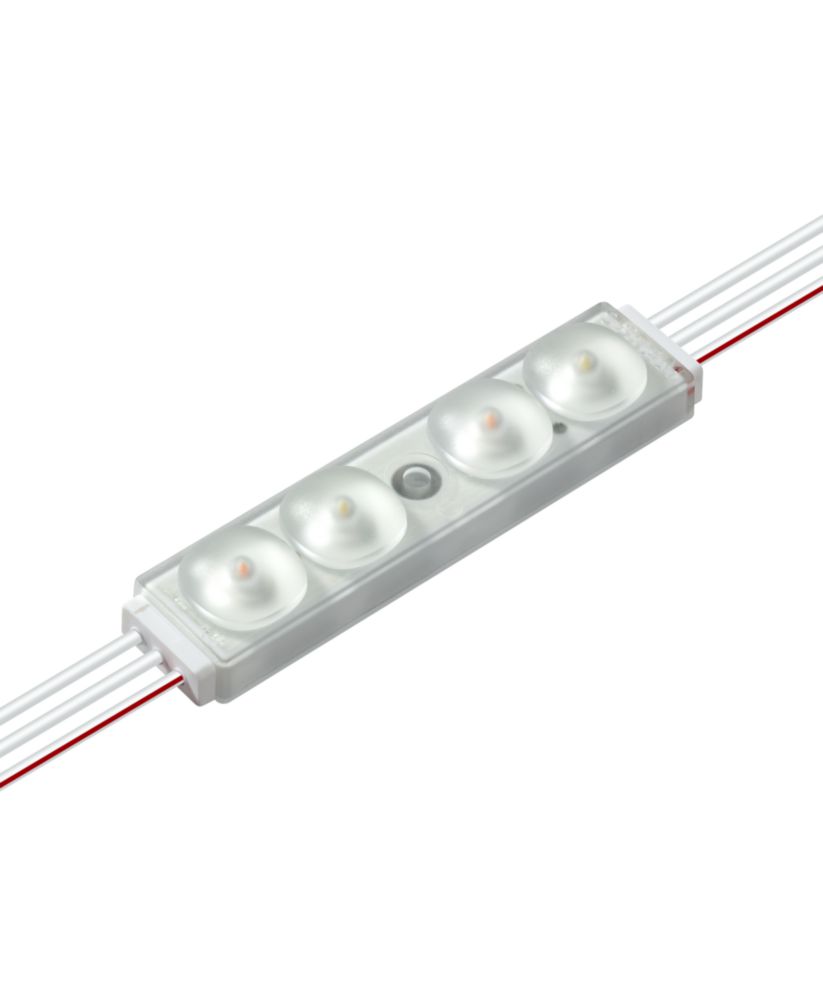

Inventronics BA-TW-CP-827.865-24-G5
BackLED TW CP G5 · IP66 · 2700K · CRI80 · EAN 6937186139511
Product family features
- Light color: dynamic 2700…6500 K
- Compatible with Inventronics OPTOTRONIC constant voltage drivers / dimmers
- Color consistency in 3 SDCM
- Patented Square Lens technology
- IP66 rating
- Lifetime (L80/B10): 50,000 h (temperature at Tc = 75 °C)
- Backside injection technology for high protection level
- 5 year guarantee
- Daylight simulation
- Channel letters
- Luminous areas and ceilings
| Nominal voltage (V) | 24.0 |
| Luminous efficacy (lm/W) | 138.5 |
| Modules per pack | 30 |
| Luminous flux per module (lm) | 277 |
| Total luminous flux, full pack (lm) | 8310 |
| Light color | White |
| CRI (Ra) | >80 |
| Color temperature (K) | 2700 |

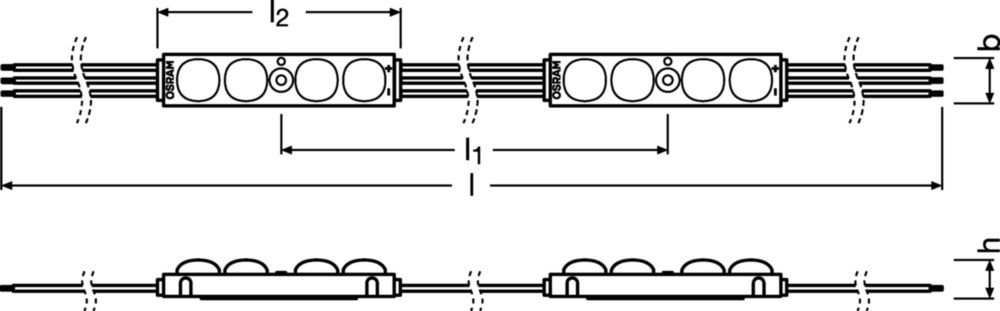

| Dimensions | 77.9 × 17.8 × 12.4 mm (L × W × H) |
| Type of protection (IP) | IP66 |
Downloads
BackLED XL CP G5 TW UI · User instruction · 4.61MB
⭳ download
CED_I E10 BackLed G5 family 2026-04 · Certificates · 199.94kB
⭳ download
BackLED Tunable White CP G5 · Product Datasheet · 568.32kB
⭳ download
