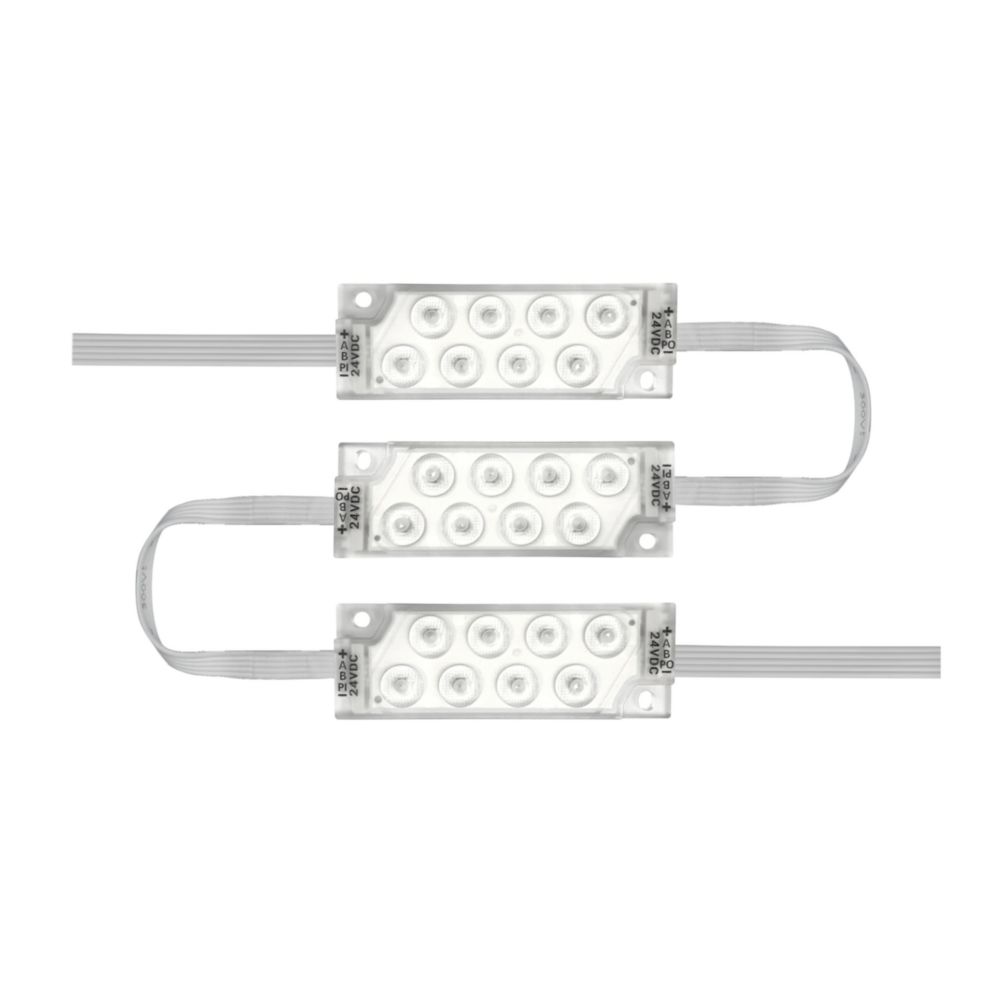

Inventronics BA-RGBW865-CP G3 DMX
BackLED RGBW · IP68 · 6500K · CRI80 · EAN 6977078997645
Product family features
- Connected with flexible cables
- Type of protection (modules): IP68
- Special robust encapsulation
- CE, ENEC, UL, BIS marks
- Dimmable by pulse width modulation (PWM) or DMX
- Single module cuttability and operation
- Broad color mixing palette (in connection with light management systems)
- Uniform backlighting of large surfaces thanks to extremely wide angle optics
- Simple connection with open cable ends
- Consistent white light (Standard Deviation of Color Matching SDCM: < 3)
- 5 year guarantee
- Special-purpose and decorative lighting applications
- Dynamic color backlighting
- Dynamic mood lighting
- Spas
- Shops
- Restaurants
- Trade fair lighting
- Permanent outdoor use in enclosed light boxes or channel letters
- Several types of OPTOTRONIC 24 V power supplies available
References / LinksFor more information on the multi-level guarantee and the terms and conditions of the guarantee visit https://www.inventronics-light.com/multilevel-guarantees
| Nominal voltage (V) | 24.0 |
| Luminous efficacy (lm/W) | 87.6 |
| CRI (Ra) | 80 (white channel) |
| Color temperature (K) | 6500 |
| SDCM | <=3 |
| Dimensions | 6070 × 32.0 × 11.4 mm (L × W × H) |
| Type of protection (IP) | IP68 |
Downloads
BackLED RGBW CP G3 · Product Datasheet · 0.97MB
⭳ download
CED_I BackLED BA-RGBzknn-CP G3 m · Certificates · 121.14kB
⭳ download
UI BackLED RGBW CP G3 15130451 250725 · User instruction · 2.94MB
⭳ download
