Inventronics BA-AR-G1 900 540X270 TW
BackLED Area Tunable White · IP00 · 2700K · CRI90 · EAN 6937186131584
Product family features
- 24 V constant voltage LED modules
- Tunable white 2700K-6500K for dynamic white applications
- Color rendering index Ra: > 90
- Constant LED pitch even at board interconnections
- Cuttable, single board for an exact fit in any installation
- Product only compatible with DALI DT8 drivers (TW) or OPTOTRONIC OT Wi devices with Inventronics TW lamp profiles
- Provides homogenous light suitable for application in area luminaires
- Quick and easy mounting thanks to plastic holder
- Easy wiring with push-in connectors
- Low energy consumption and less heat generation
- Optimal operation on OPTOTRONIC 24VDC and 24VDC dimmable power supplies
- Area lighting
- Light ceilings
- Hospitality, hotels, restaurants
- Individual and customized luminaires
- Daylight simulation
| Nominal voltage (V) | 24.0 |
| Luminous efficacy (lm/W) | 105 |
| Total luminous flux (lm) | 925 |
| Light color | Tunable White |
| CRI (Ra) | 90 |
| Color temperature (K) | 2700 |
| SDCM | <=3 |

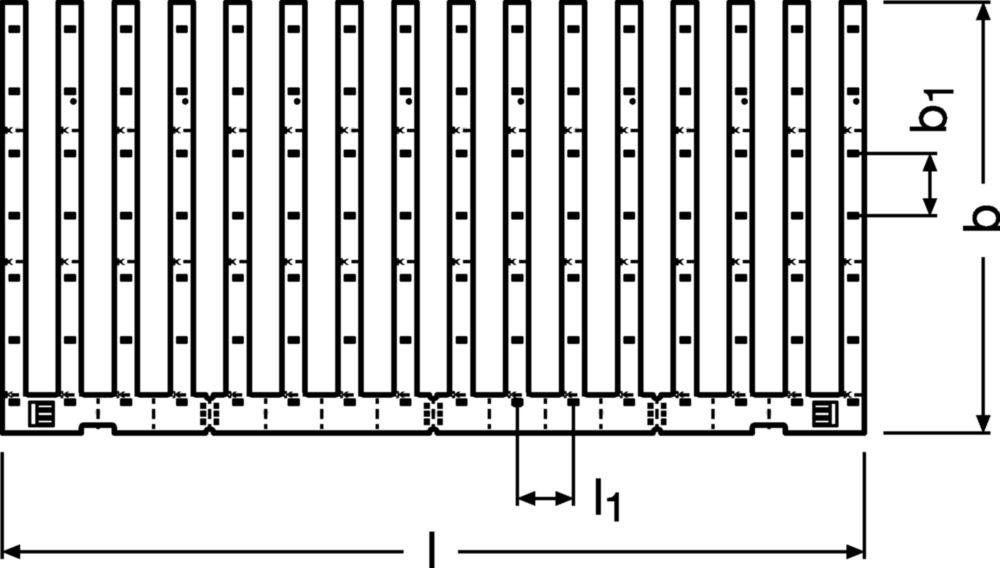

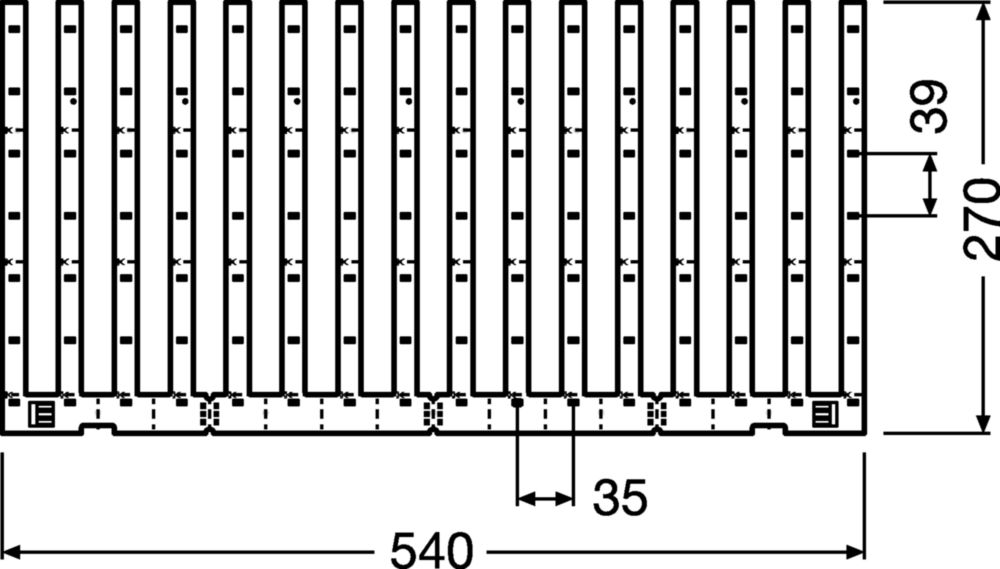

| Dimensions | 540.0 × 270.0 × 3 mm (L × W × H) |
| Type of protection (IP) | IP00 |
Downloads
CED_I E10 BackLED AREA 900 G1 2026-04 · Certificates · 193.65kB
⭳ download
BackLED Area Tunable White · Product Datasheet · 807.7kB
⭳ download
BackLED Area TW · User instruction · 1.87MB
⭳ download
