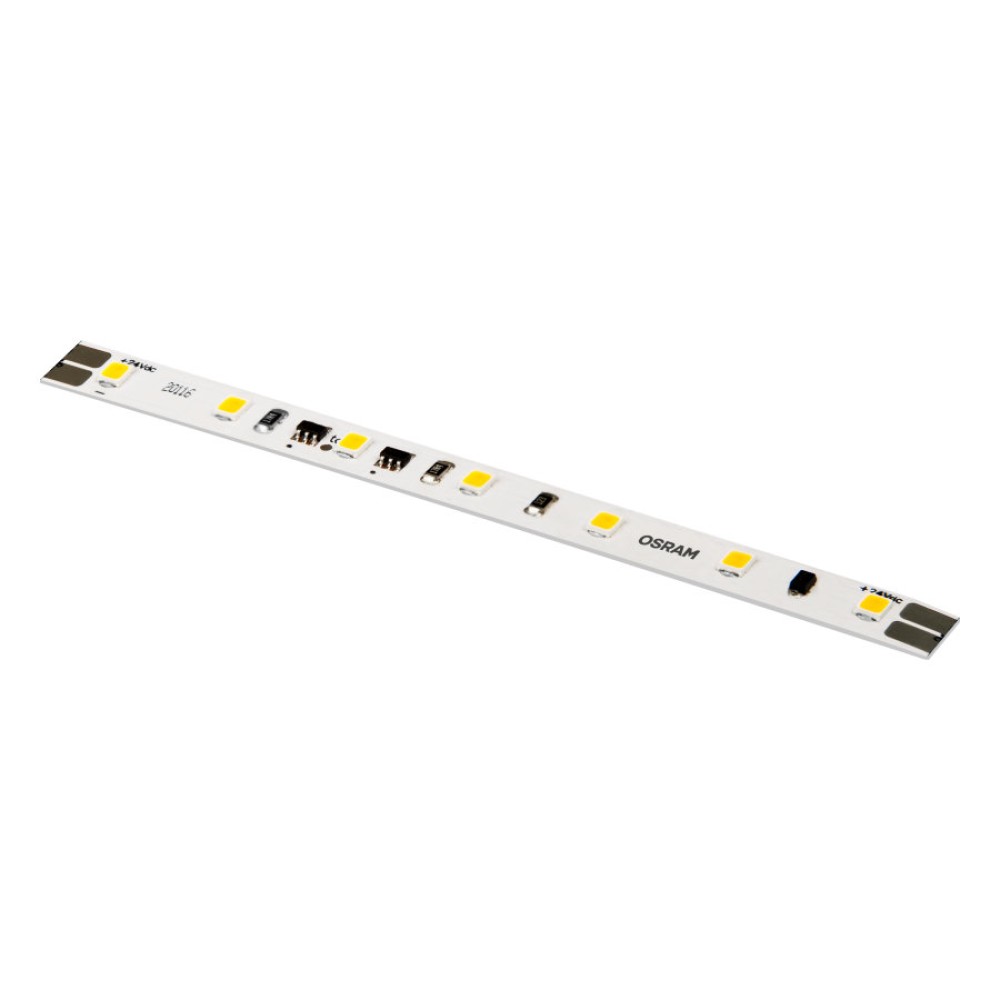

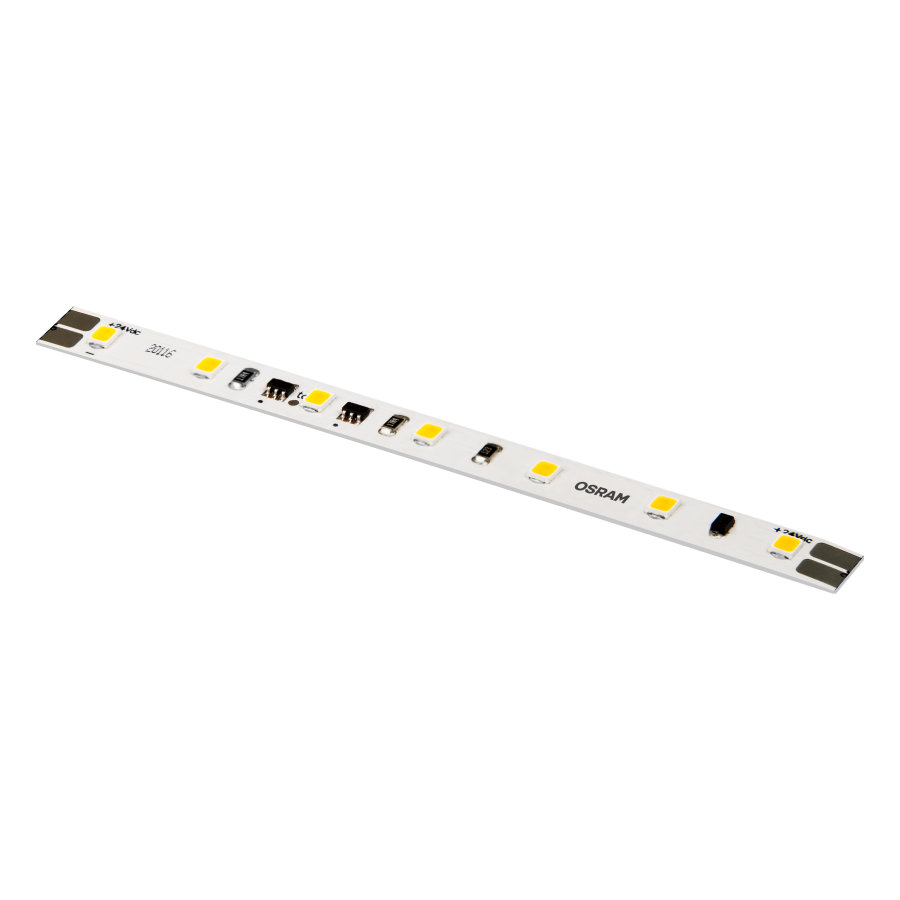

TEC FLEX 1000

EAN: TEC FLEX 1000

Sales unit
  • Length 5000mm
Product family features ja benefits
  • 24V Constant Voltage Dimmable LED strip
  • Luminous flux range: 1000lm/m
  • Color temperature: 2700K
  • Single color bin in 3SDCM
  • High Efficiency up to 150lm/W enabling energy saving also in general illumination
  • Design freedom and accurate match of installation size: cutting points every 10 cm
  • Improved self-adhesive backside for easy and reliable mounting on different surfaces
  • Pre-soldered wires
  • Current control technology for constant flux level along the module
  • Long lifetime: 50.000 hours
  • 5 Years OSRAM Guarantee
  • System solution in combination with OSRAM 24V Constant Voltage LED drivers, optional connectors, mounting accessories
Family data sheet View downloads

Products

Product Color rendering index Ra Luminous flux per meter Color temperature Data sheet
TEC Flex 1000, TF1000-G1-827-05 48W 24V IP00 80 1110 lm 2700 K
TEC Flex 1000, TF1000-G1-865-05 48W 24V IP00 80 1230 lm 6500 K
TEC Flex 1000, TF1000-G1-830-05 48W 24V IP00 80 1200 lm 3000 K
TEC Flex 1000, TF1000-G1-840-05 48W 24V IP00 80 1210 lm 4000 K
TEC Flex 1000, TF1000-G1-850-05 48W 24V IP00 80 1240 lm 5000 K

Downloads

Data sheets, brochures and technical information
