OPTOTRONIC INTELLIGENT – DEXAL
EAN: OPTOTRONIC INTELLIGENT – DEXAL
Sales unit
Family data sheet
View downloads
- 1 pcs
- Supply voltage: 220…240 V
- Line frequency: 0 Hz | 50 Hz | 60 Hz
- Line voltage: 198…264 V
- According to EN 61347-1, 61347-2-13, 62384
- RI suppression according to EN 55015:2007+A1:2007/CDN
- Immunity according to EN 61547
- Lifetime: up to 100,000 h
- Type of protection: IP20
- Versatile DALI window driver due to flexible output characteristic
- Integrated DEXAL Bus power supply for sensors and wireless radios
- Simplified luminaire design for wireless lighting control system and sensors
- Locking and unlocking of luminaire/driver data
- Advanced luminaire/driver data (power, energy, operating hours…) for analytics D4i certified incl. Parts 250, 251, 252, 253
- Easy and fast output current setting via NFC
- Very high efficiency
- High-quality dimming of 1…100 % by amplitude dimming
- DEXAL, easy connection to different partner BMS systems
- Suitable for "Works with OSRAM DEXAL" partner components
- Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
- Suitable for use in luminaires with flexible current setting
- Suitable for indoor SELV installations _ Suitable for luminaires of protection classes I and II
- Suitable for downlights, spotlights and LED panels
- Installation via Cable Clamp Kit possible (depending on version of product)
Products
| Product | Nominal output voltage | Nominal output current | Data sheet |

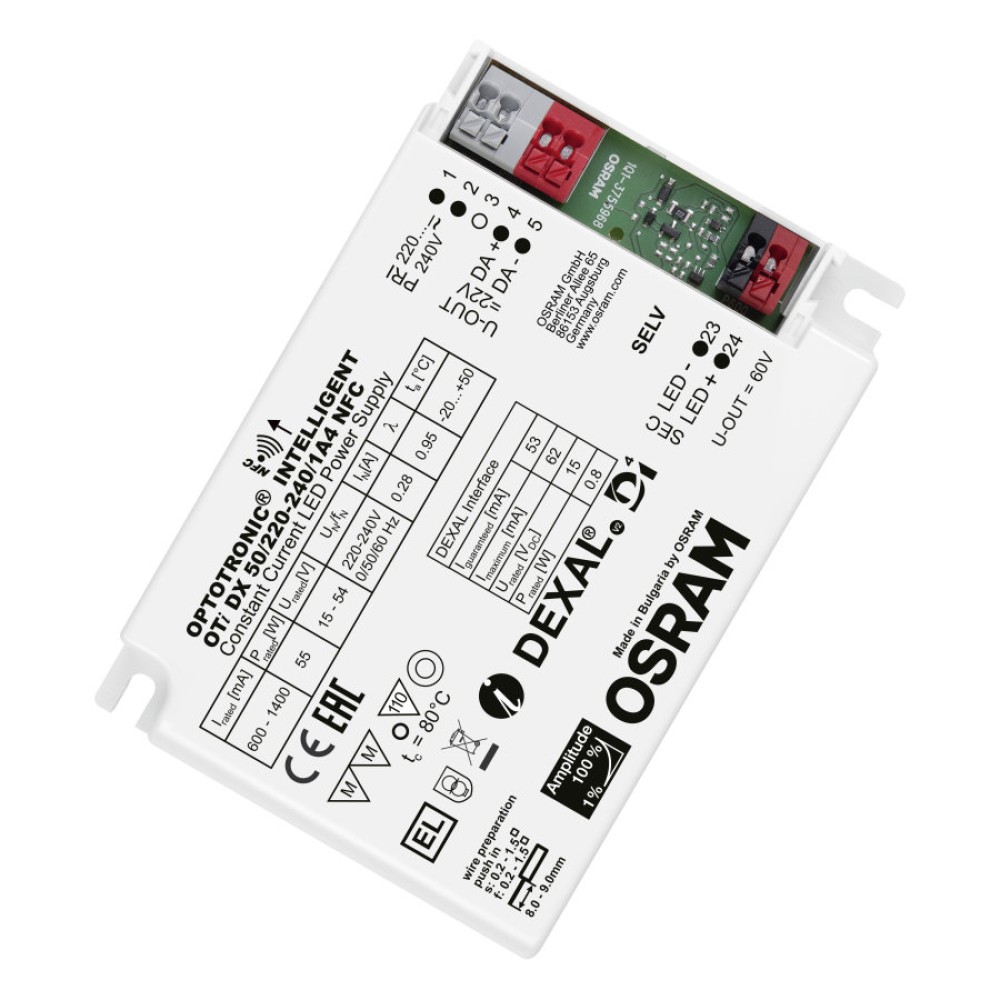

OTI DX 50/220-240/1A4 NFC (cable clamp A-style to be ordered separately)
|
15…54 V | 600…1400 mA | |

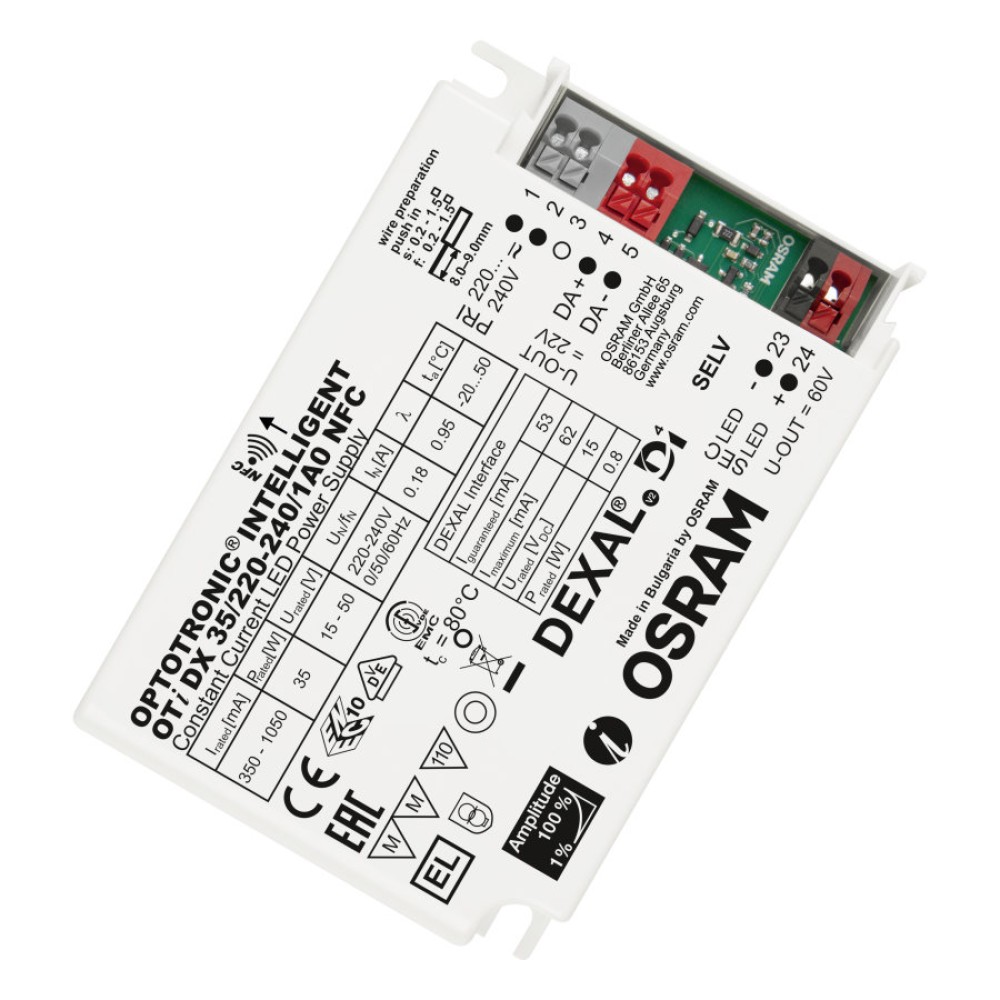

OTI DX 35/220-240/1A0 NFC (cable clamp B-style to be ordered separately)
|
15…54 V | 350…1050 mA | |

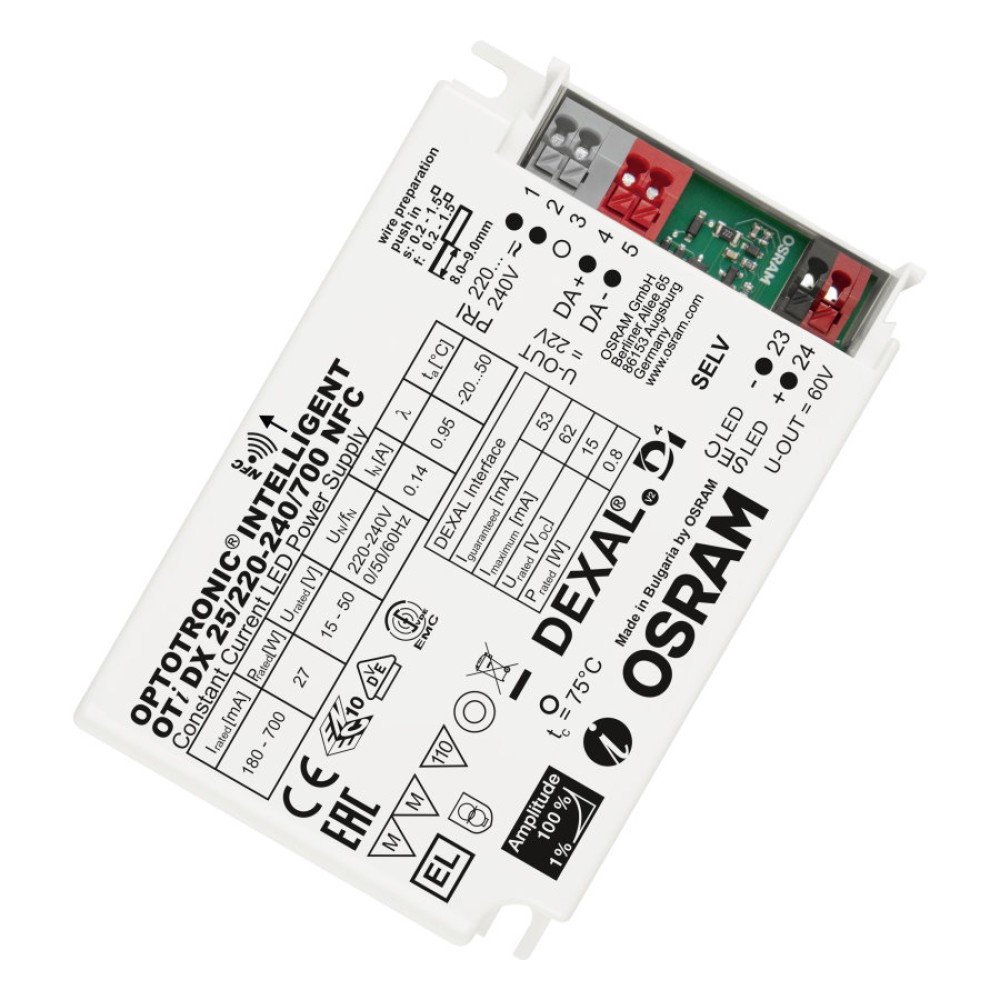

OTI DX 25/220-240/700 NFC (cable clamp B-style to be ordered separately)
|
15…54 V | 180…700 mA |
