OPTOTRONIC FIT LT2 S
EAN: OPTOTRONIC FIT LT2 S
Sales unit
Family data sheet
View downloads
- 1 pcs
- Supply voltage: 220…240 V
- Line frequency: 50 Hz | 60 Hz
- Line voltage: 198…264 V
- Safety according to EN 61347-1, 61347-2-13, 62384
- RI suppression: to EN 55015
- Line harmonics according to EN 61000-3-2
- Immunity according to EN 61547
- Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
- Cable clamp kit for independent mounting
- Versatile scope of application due to output power range of up to 40 W
- Fulfill safety requirement due to overload, overtemperature protection
- High efficiency
- High quality of light thanks to <1% output ripple current
- Small housing for flexible luminaire designs
- Luminaires with flexible current setting (LEDset2)
- Suitable for indoor SELV installations
- Suitable for luminaires of protection classes I and II
- Suitable for downlights, spotlights and LED panel
- Independent mounting via Cable Clamp Kit possible
Products
| Product | Nominal output current | Nominal output voltage | Data sheet |
OT FIT 40/220-240/1A0 LT2 S (cable clamp D-style to be ordered separately)
|
500…1050 mA | 15…50 V | |

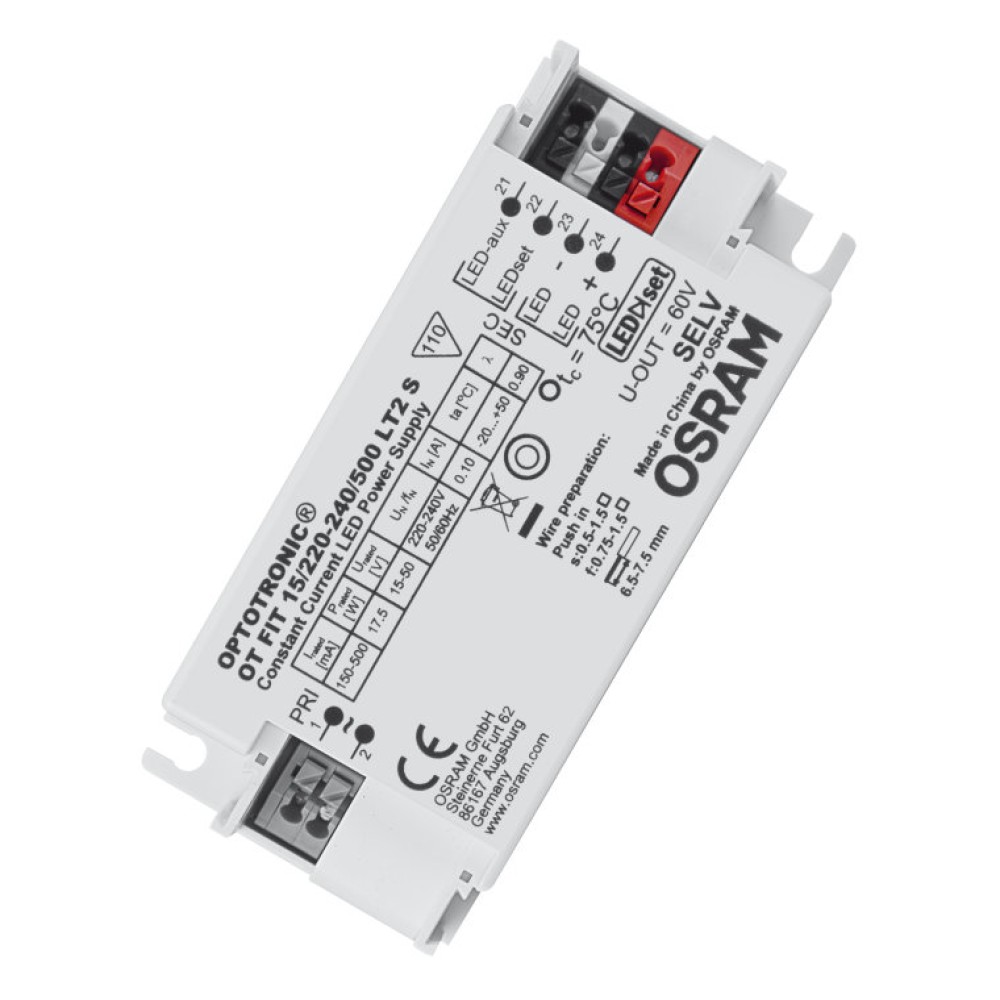

OT FIT 15/220-240/500 LT2 S (cable clamp D-style to be ordered separately)
|
150…500 mA | 15…50 V |
