Products / Flexible Solutions - LED strips for individualized application / Premium LED modules for high-end applications / LINEARlight FLEX / LINEARLIGHT FLEX UNIFORMITY 800S

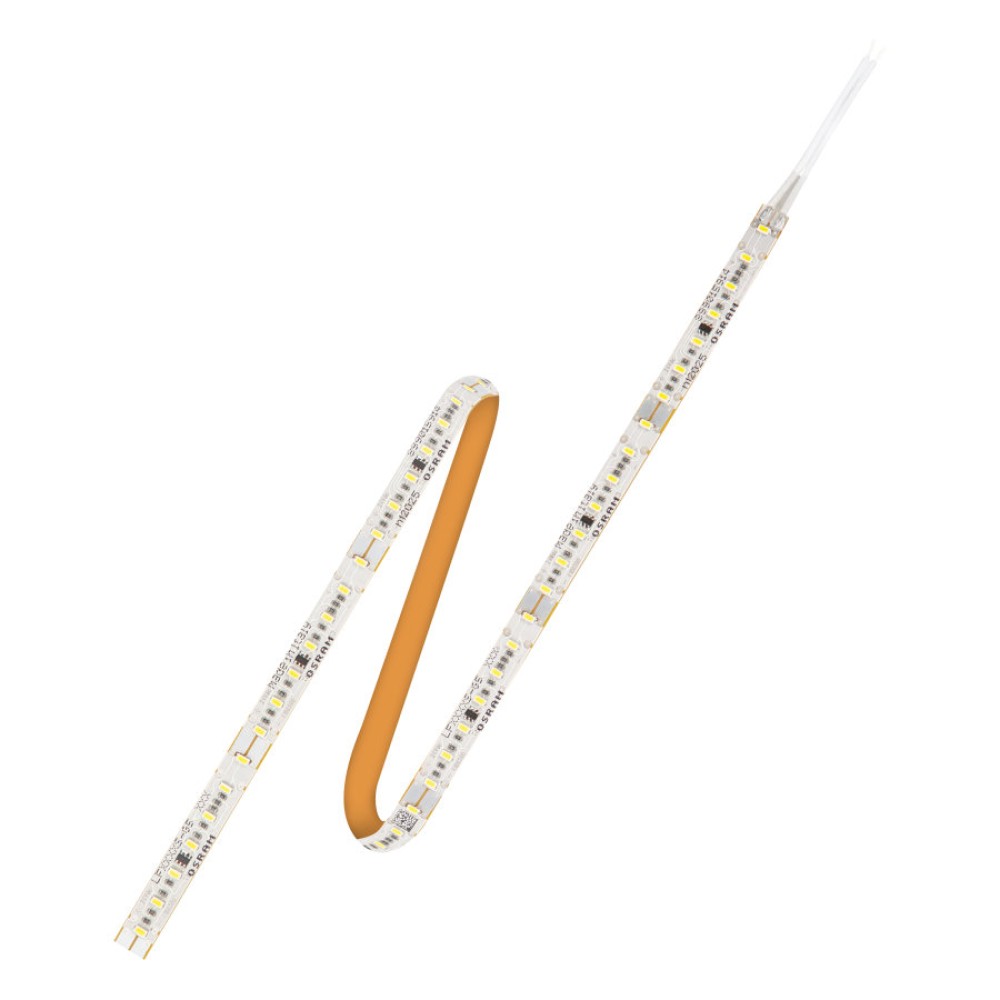

LINEARLIGHT FLEX UNIFORMITY 800S

EAN: LINEARLIGHT FLEX UNIFORMITY 800S

See all 24 product variations

Sales unit

Length 10000mm

Product features

24 V LED strips flexible and cuttable, 50 mm cut unit
Available variants: 800 lm/m 1200 lm/m 2000 lm/m / CRI Ra: 95+ 90+ and 80+
Up to 60,000 h L90/B10 with SDT technology, tested acc. to IEC 62717 on real LED strips
Stable light flux over length: active constant current regulators (ICs), PWM safe
Fully PWM dimmable from zero up to 2.5 kHz, audible noise free, suitable for quite places
Designed, engineered and manufactured and tested in Italy (ISO9001, ISO 17025, ACCREDIA, VDE)

Product benefits

Color uniformity better than 2 SDCM on the entire LED strip and between strips
Light stability over time typically 1 SDCM, tested acc. to IEC 62717 @ 6,000 h
LED lifetime acc.to IES LM-80 and IES TM-21 standards, and also internal OSRAM LAB tests
Reliable photometric parameters according to IES LM-79, EN13032-4 and CIE S 025
Accurate description of the color rendition of the light source acc. to IES TM-30-15
Excellent robustness: single reel manufacturing technology (no solder joints on strip)
Vibration-resistant for stationary installations acc. to IEC60068-2-6 and IEC60068-2-64
Flicker and stroboscopic effect-free acc. to IEC TR 61547-1 and IEC TR 63158
Tested by accredited Product Qualification Lab. ISO9001, ISO 17025, ACCREDIA, VDE
Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back

Family data sheet View downloads

Products

Product	Color temperature	Color rendering index Ra	Luminous flux per meter	Data sheet
LINEARlight FLEX Uniformity LF800S -G5-927-10 L2 75W 24V	2700 K	90	800 lm
LINEARlight FLEX Uniformity LF800S -G5-930-10 L2 75W 24V	3000 K	90	800 lm
LINEARlight FLEX Uniformity LF800S -G5-935-10 L2 75W 24V	3500 K	90	800 lm
LINEARlight FLEX Uniformity LF800S -G5-940-10 L2 67W 24V	4000 K	90	800 lm
LINEARlight FLEX Uniformity LF800S -G5-950-10 L2 67W 24V	5000 K	90	800 lm
LINEARlight FLEX Uniformity LF800S -G5-957-10 L2 67W 24V	5700 K	90	800 lm
LINEARlight FLEX Uniformity LF800S -G5-965-10 L2 67W 24V	6500 K	90	800 lm
LINEARlight FLEX Uniformity LF800S -G5-925R-10 L2 83W 24V	2500 K	95	800 lm
LINEARlight FLEX Uniformity LF800S -G5-927R-10 L2 83W 24V	2700 K	95	800 lm
LINEARlight FLEX Uniformity LF800S -G5-930R-10 L2 73W 24V	3000 K	95	800 lm
LINEARlight FLEX Uniformity LF800S -G5-935R-10 L2 73W 24V	3500 K	95	800 lm
LINEARlight FLEX Uniformity LF800S -G5-940R-10 L2 73W 24V	4000 K	95	800 lm
LINEARlight FLEX Uniformity LF800S -G5-950R-10 L2 73W 24V	5000 K	95	800 lm
LINEARlight FLEX Uniformity LF800S -G5-822-10 L2 72,1W 24V	2200 K	80	800 lm
LINEARlight FLEX Uniformity LF800S -G5-825-10 L2 67,1W 24V	2500 K	80	800 lm
LINEARlight FLEX Uniformity LF800S -G5-827-10 L2 63W 24V	2700 K	80	800 lm
LINEARlight FLEX Uniformity LF800S -G5-830-10 L2 60W 24V	3000 K	80	810 lm
LINEARlight FLEX Uniformity LF800S -G5-835-10 L2 60W 24V	3500 K	80	810 lm
LINEARlight FLEX Uniformity LF800S -G5-840-10 L2 60W 24V	4000 K	80	810 lm
LINEARlight FLEX Uniformity LF800S -G5-850-10 L2 60W 24V	5000 K	80	810 lm
LINEARlight FLEX Uniformity LF800S -G5-857-10 L2 60W 24V	5700 K	80	810 lm
LINEARlight FLEX Uniformity LF800S -G5-865-10 L2 60W 24V	6500 K	80	810 lm
LINEARlight FLEX Uniformity LF800S -G5-922-10 L2 90W 24V	2200 K	90	800 lm
LINEARlight FLEX Uniformity LF800S -G5-925-10 L2 80W 24V	2500 K	90	800 lm
