LINEARLIGHT FLEX UNIFORMITY 1200S

EAN: LINEARLIGHT FLEX UNIFORMITY 1200S

See all 24 product variations

Sales unit

Length 5000mm

Product features

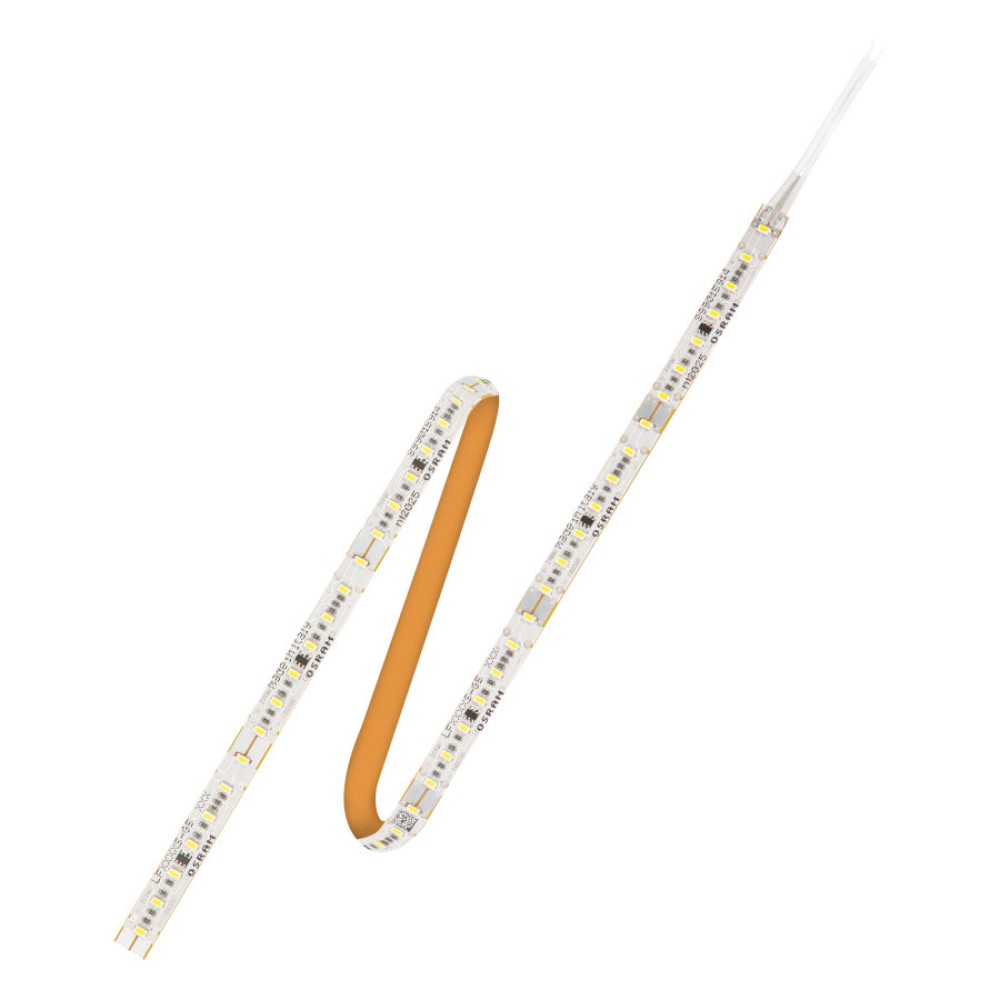

24 V LED strips flexible and cuttable, 50 mm cut unit
Available variants: 800 lm/m 1200 lm/m 2000 lm/m / CRI Ra: 95+ 90+ and 80+
Up to 60,000 h L90/B10 with SDT technology, tested acc. to IEC 62717 on real LED strips
Stable light flux over length: active constant current regulators (ICs), PWM safe
Fully PWM dimmable from zero up to 2.5 kHz, audible noise free, suitable for quite places
Designed, engineered and manufactured and tested in Italy (ISO9001, ISO 17025, ACCREDIA, VDE)

Product benefits

Color uniformity better than 2 SDCM on the entire LED strip and between strips
Light stability over time typically 1 SDCM, tested acc. to IEC 62717 @ 6,000 h
LED lifetime acc.to IES LM-80 and IES TM-21 standards, and also internal OSRAM LAB tests
Reliable photometric parameters according to IES LM-79, EN13032-4 and CIE S 025
Accurate description of the color rendition of the light source acc. to IES TM-30-15
Excellent robustness: single reel manufacturing technology (no solder joints on strip)
Vibration-resistant for stationary installations acc. to IEC60068-2-6 and IEC60068-2-64
Flicker and stroboscopic effect-free acc. to IEC TR 61547-1 and IEC TR 63158
Tested by accredited Product Qualification Lab. ISO9001, ISO 17025, ACCREDIA, VDE
Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back

Family data sheet View downloads

Products

Product	Color rendering index Ra	Luminous flux per meter	Color temperature	Data sheet
LINEARlight FLEX Uniformity LF1200S -G5-850-10 L2 86W 24V	80	1200 lm	5000 K
LINEARlight FLEX Uniformity LF1200S -G5-857-10 L2 86W 24V	80	1200 lm	5700 K
LINEARlight FLEX Uniformity LF1200S -G5-865-10 L2 86W 24V	80	1200 lm	6500 K
LINEARlight FLEX Uniformity LF1200S -G5-922-10 L2 116W 24V	90	1200 lm	2200 K
LINEARlight FLEX Uniformity LF1200S -G5-925-10 L2 116W 24V	90	1200 lm	2500 K
LINEARlight FLEX Uniformity LF1200S -G5-927-10 L2 109W 24V	90	1200 lm	2700 K
LINEARlight FLEX Uniformity LF1200S -G5-930-10 L2 109W 24V	90	1200 lm	3000 K
LINEARlight FLEX Uniformity LF1200S -G5-935-10 L2 109W 24V	90	1200 lm	3500 K
LINEARlight FLEX Uniformity LF1200S -G5-940-10 L2 99W 24V	90	1200 lm	4000 K
LINEARlight FLEX Uniformity LF1200S -G5-950-10 L2 99W 24V	90	1200 lm	5000 K
LINEARlight FLEX Uniformity LF1200S -G5-957-10 L2 99W 24V	90	1200 lm	5700 K
LINEARlight FLEX Uniformity LF1200S -G5-965-10 L2 99W 24V	90	1200 lm	6500 K
LINEARlight FLEX Uniformity LF1200S -G5-925R-05 L1 60W 24V	95	1200 lm	2500 K
LINEARlight FLEX Uniformity LF1200S -G5-927R-05 L1 60W 24V	95	1200 lm	2700 K
LINEARlight FLEX Uniformity LF1200S -G5-930R-05 L1 54,5W 24V	95	1200 lm	3000 K
LINEARlight FLEX Uniformity LF1200S -G5-935R-05 L1 54,5W 24V	95	1200 lm	3500 K
LINEARlight FLEX Uniformity LF1200S -G5-940R-05 L1 54,5W 24V	95	1200 lm	4000 K
LINEARlight FLEX Uniformity LF1200S -G5-950R-05 L1 54,5W 24V	95	1200 lm	5000 K
LINEARlight FLEX Uniformity LF1200S -G5-825-10 L2 98W 24V	80	1200 lm	2500 K
LINEARlight FLEX Uniformity LF1200S -G5-827-10 L2 92W 24V	80	1200 lm	2700 K
LINEARlight FLEX Uniformity LF1200S -G5-830-10 L2 92W 24V	80	1200 lm	3000 K
LINEARlight FLEX Uniformity LF1200S -G5-835-10 L2 86W 24V	80	1200 lm	3500 K
LINEARlight FLEX Uniformity LF1200S -G5-840-10 L2 86W 24V	80	1200 lm	4000 K
LINEARlight FLEX Uniformity LF1200S -G5-822-10 L2 106W 24V	80	1200 lm	2200 K
