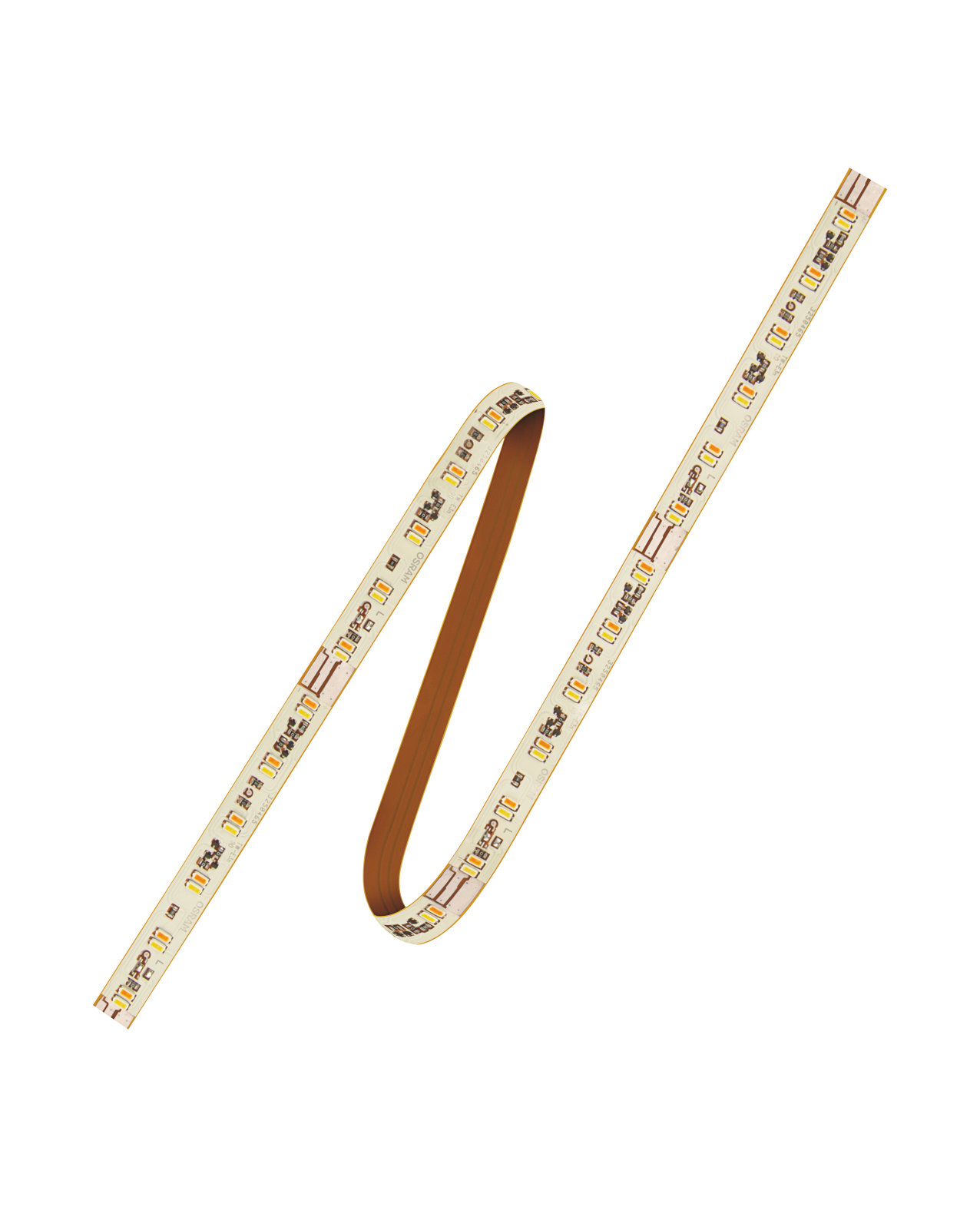

LINEARLIGHT FLEX TUNABLE WHITE

EAN: LINEARLIGHT FLEX TUNABLE WHITE

Sales unit

Product family features

24 V LED strips flexible and cuttable
Luminous flux: up to 3,800 lm/m
Up to 60,000 h L90/B10 with SDT technology, tested acc. To IEC 62717 on real LED strips
Adjustable color temp. via Tunable White: 2200…3500 K, 2500…4000 K, 2700…5700 K CRI90
Adjustable color temp. via Tunable White: 2200…3500 K, 2500…3500 K, 2700…6500 K CRI80
CRI80, CRI90 options available
Stable light flux over length: active constant current regulators (ICs), PWM safe
Embedded automatic quick protection against accidental miswiring up to 25 V
Fully PWM dimmable from zero up to 2.5 kHz, audible noise free, suitable for quite places
Designed, engineered and manufactured and tested in Italy
(ISO9001, ISO 17025, ACCREDIA, VDE)

Product benefits

Color uniformity better than 3 SDCM on the entire LED strip and between strips
LED lifetime acc.to IES LM-80 and IES TM-21 standards, and also internal OSRAM LAB tests
Excellent robustness: single reel manufacturing technology (no solder joints on strip)
Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back
Extraordinary design and high quality materials
Pre-soldered wires (TWW versions)

Areas of application

Products

Product	Color rendering index Ra	Color temperature	Luminous flux per meter	Data sheet
LINEARlight FLEX Tunable White, LF3400TW-G5 -925.940-03 L1	90	2500…4000 K	3400 lm
LINEARlight FLEX Tunable White ,LF4000TW -G1-827.865-02 L1	>80	2700…7000 K	3800 lm
LINEARlight FLEX Tunable White, LF3400TW-G5 -922.935-03 L1	90	2200...3500 K	3400 lm
LINEARlight FLEX Tunable White, LF3400TW-G5-927.965-03 L1	90	2700…6500 K	3400 lm
LINEARlight FLEX Tunable White, LF3400TW-G5 -927.957-03 L1	90	2700…5700 K	3400 lm
LINEARlight FLEX Tunable White, LF2000TW -G1-827.865-04 L1	>80	2700…6900 K	2000 lm
LINEARlight FLEX Tunable White,LF1200TW -G1-827.865-09 L2	>80	2700…6500 K	1200 lm
LINEARlight FLEX Tunable White, LF1100TW-G5 -925.940-09 L2	90	2500…4000 K	1156 lm
LINEARlight FLEX Tunable White, LF1100TW-G5 -927.957-09 L2	90	2700…5700 K	1156 lm
LINEARlight FLEX Tunable White, LF1100TW-G5 -922.935-09 L2	90	2200...3500 K	1111 lm
LINEARlight FLEX Tunable White, LF1100TW-G5-927.965-09 L2	90	2700…6500 K	1156 lm
