LINEARLIGHT FLEX PROTECT UNIFORMITY 2000S

EAN: LINEARLIGHT FLEX PROTECT UNIFORMITY 2000S

Sales unit

Product features

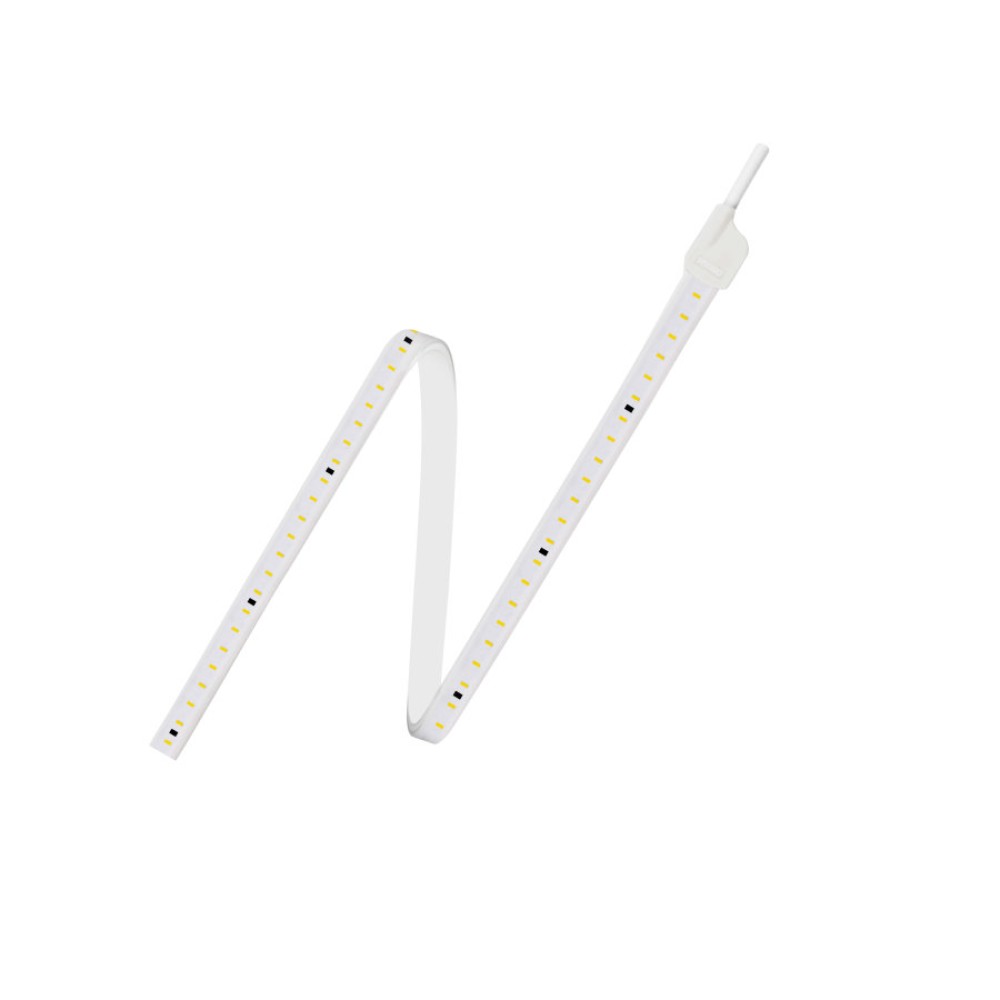

_ 24 V LED strips flexible and cuttable, 50 mm cut unit, with superior optically graded silicone encapsulation
Available variants: 800 lm/m 1200 lm/m 2000 lm/m / CRI Ra: 95+ 90+ and 80+
Up to 60,000 h L90/B10 with SDT technology, tested acc. to IEC 62717 on real LED strips
Stable light flux over length: active constant current regulators (ICs), PWM safe
Fully PWM dimmable from zero up to 2.5 kHz, audible noise free, suitable for quite places
Excellent ESD protection of up to 8 kV in air or 4 kV in contact (acc. to IEC 61547)
IP66 including connector / IP67 excluding connector
Salt-mist atmosphere resistant (acc. to IEC 60068-2-52, highest severity)
UV radiation resistant (acc. to ISO 4892-2) / Mixed flowing gas corrosion resistant (IEC 60068-2-60)
Designed, engineered and manufactured and tested in Italy (ISO9001, ISO 17025, ACCREDIA, VDE)

Product benefits

Color uniformity better than 2 SDCM on the entire LED strip and between strips
Light stability over time typically 1 SDCM, tested acc. to IEC 62717 @ 6,000 h
LED lifetime acc.to IES LM-80 and IES TM-21 standards, and also internal OSRAM LAB tests
Reliable photometric parameters according to IES LM-79, EN13032-4 and CIE S 025
Accurate description of the color rendition of the light source acc. to IES TM-30-15
Excellent robustness: single reel manufacturing technology (no solder joints on strip)
Vibration-resistant for stationary installations acc. to IEC60068-2-6 and IEC60068-2-64
Flicker and stroboscopic effect-free acc. to IEC TR 61547-1 and IEC TR 63158
Tested by accredited Product Qualification Lab. ISO9001, ISO 17025, ACCREDIA, VDE
Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back

Products

Product	Color rendering index Ra	Color temperature	Luminous flux per meter	Data sheet
LINEARlight FLEX Protect Uniformity LF2000S -G5-830-05 C 86,5W 24V	80	3000 K	2050 lm
LINEARlight FLEX Protect Uniformity LF2000S -G5-835-05 C 80W 24V	80	3500 K	2050 lm
LINEARlight FLEX Protect Uniformity LF2000S -G5-840-05 C 76W 24V	80	4000 K	2000 lm
LINEARlight FLEX Protect Uniformity LF2000S -G5-847-05 C 76W 24V	80	4700 K	2000 lm
LINEARlight FLEX Protect Uniformity LF2000S -G5-857-05 C 76W 24V	80	5700 K	2000 lm
LINEARlight FLEX Protect Uniformity LF2000S -G5-880-05 C 76W 24V	80	8800 K	2000 lm
LINEARlight FLEX Protect Uniformity LF2000S -G5-927-05 C 105W 24V	90	2700 K	1900 lm
LINEARlight FLEX Protect Uniformity LF2000S -G5-930-05 C 98W 24V	90	3000 K	2000 lm
LINEARlight FLEX Protect Uniformity LF2000S -G5-935-05 C 92,5W 24V	90	3500 K	2000 lm
LINEARlight FLEX Protect Uniformity LF2000S -G5-940-05 C 92,5W 24V	90	4000 K	2000 lm
LINEARlight FLEX Protect Uniformity LF2000S -G5-940R-05 C 90,5W 24V	95	4000 K	2000 lm
LINEARlight FLEX Protect Uniformity LF2000S -G5-825-05 C 98W 24V	80	2500 K	2100 lm
LINEARlight FLEX Protect Uniformity LF2000S -G5-827-05 C 90,5W 24V	80	2700 K	2050 lm
