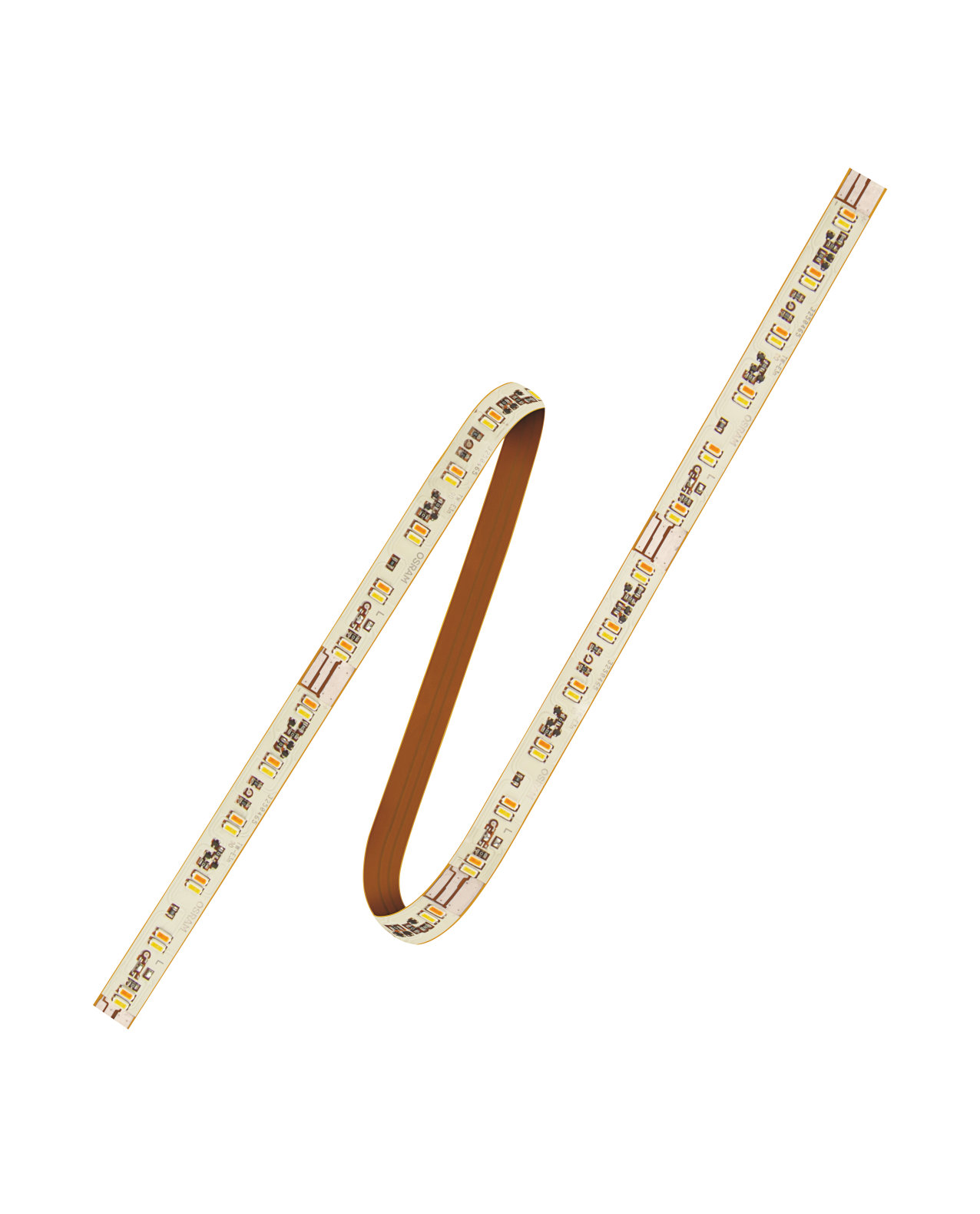

LINEARLIGHT FLEX LOW POWER 500
EAN: LINEARLIGHT FLEX LOW POWER 500
Sales unit
Family data sheet
View downloads
- Length 10000mm
- Color consistency up to 2 SDCM on entire light strip thanks to Single-bin technology
- Luminous flux: up to 460 lm/m
- Module efficacy: up to 124 lm/W
- Color rendering options Ra: 80
- Service lifetime (L80/B10): up to 60,000 h
- Embedded constant current regulators
- No solder-joints on circuit board
- Flexessories: a complete set of aluminum channels with diffusers and lenses
- Connectors: quick-and-easy toolless installation with SLIMCONNECTsystem G2
- Drivers and dimmers: wide selection of OPTOTRONIC 24 V DALI, DMX and BLE
Products
| Product | Color rendering index Ra | Color temperature | Luminous flux per meter | Data sheet |
LINEARlight FLEX POWER 500, LF500 -G1-825-10 39.00W 24V
|
>80 | 2500 K | 480 lm | |
LINEARlight FLEX POWER 500, LF500 -G1-827-10 39.00W 24V
|
>80 | 2700 K | 480 lm | |
LINEARlight FLEX POWER 500, LF500 -G1-830-10 39.00W 24V
|
>80 | 3000 K | 520 lm | |
LINEARlight FLEX POWER 500, LF500 -G1-835-10 39.00W 24V
|
>80 | 3500 K | 520 lm | |
LINEARlight FLEX POWER 500, LF500 -G1-865-10 39.00W 24V
|
>80 | 6500 K | 520 lm | |
LINEARlight FLEX POWER 500, LF500 -G1-922-10 39.00W 24V
|
>90 | 2200 K | 360 lm | |
LINEARlight FLEX POWER 500, LF500 -G1-940-10 39.00W 24V
|
>90 | 4000 K | 440 lm |
