LINEARLIGHT FLEX DIFFUSE TOP MONOCHROME

EAN: LINEARLIGHT FLEX DIFFUSE TOP MONOCHROME

Sales unit
  • Length 6000mm
Product features
  • Diffused light lines without visible spots
  • Flexible and cuttable module to support design freedom
  • Long operational length per single power feed possible (up to 6m)
  • Ideal for luminaire designs
  • Extra strong self-adhesive backside for easy mounting
  • 24V technology for easy dimensioning
  • Recommended in system use with OPTOTRONIC
  • Increased reliability due to single piece reel-to-reel technology
  • Dimmable with PWM technology
Product benefits
  • IP67 protection with high performance silicone
  • Outdoor use possible: UV and salt mist resistant (UV acc. to ISO 4892-2 - Method A, salt mist acc. to IEC 60068-2-52 severity 1)
Areas of application
  • Individual and customized luminaires
  • Organic shaped luminaires
  • Architectural Integration – e.g. coves, walls
  • Object integration – e.g. handrails
  • Signage and illuminated advertising
Family data sheet View downloads

Products

Product Color temp Luminous flux per meter Data sheet

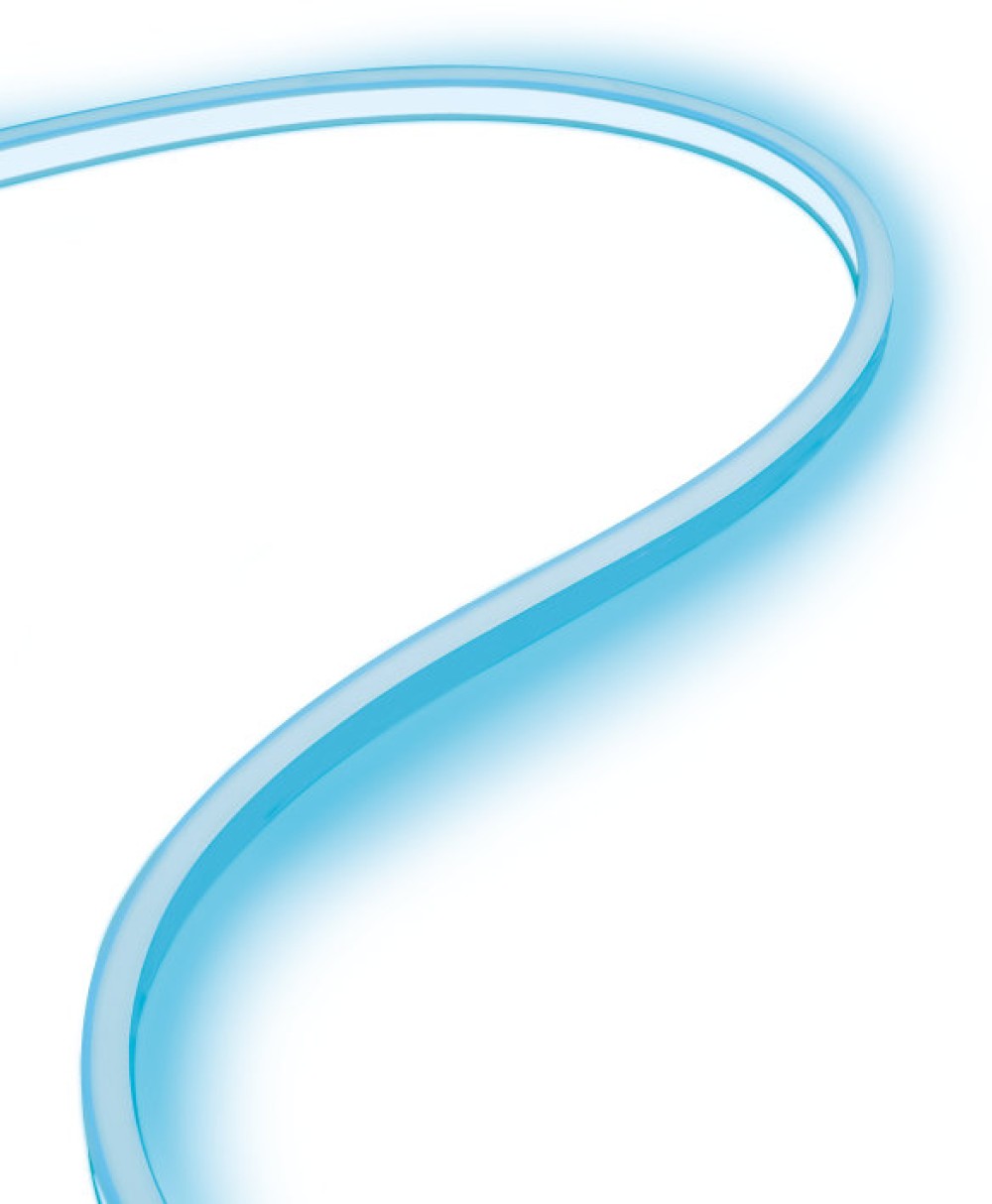

LINEARlight FLEX DIFFUSE Top Monochrome, LFD400MT-G1-BL-06 72W 24V Blue 60 lm

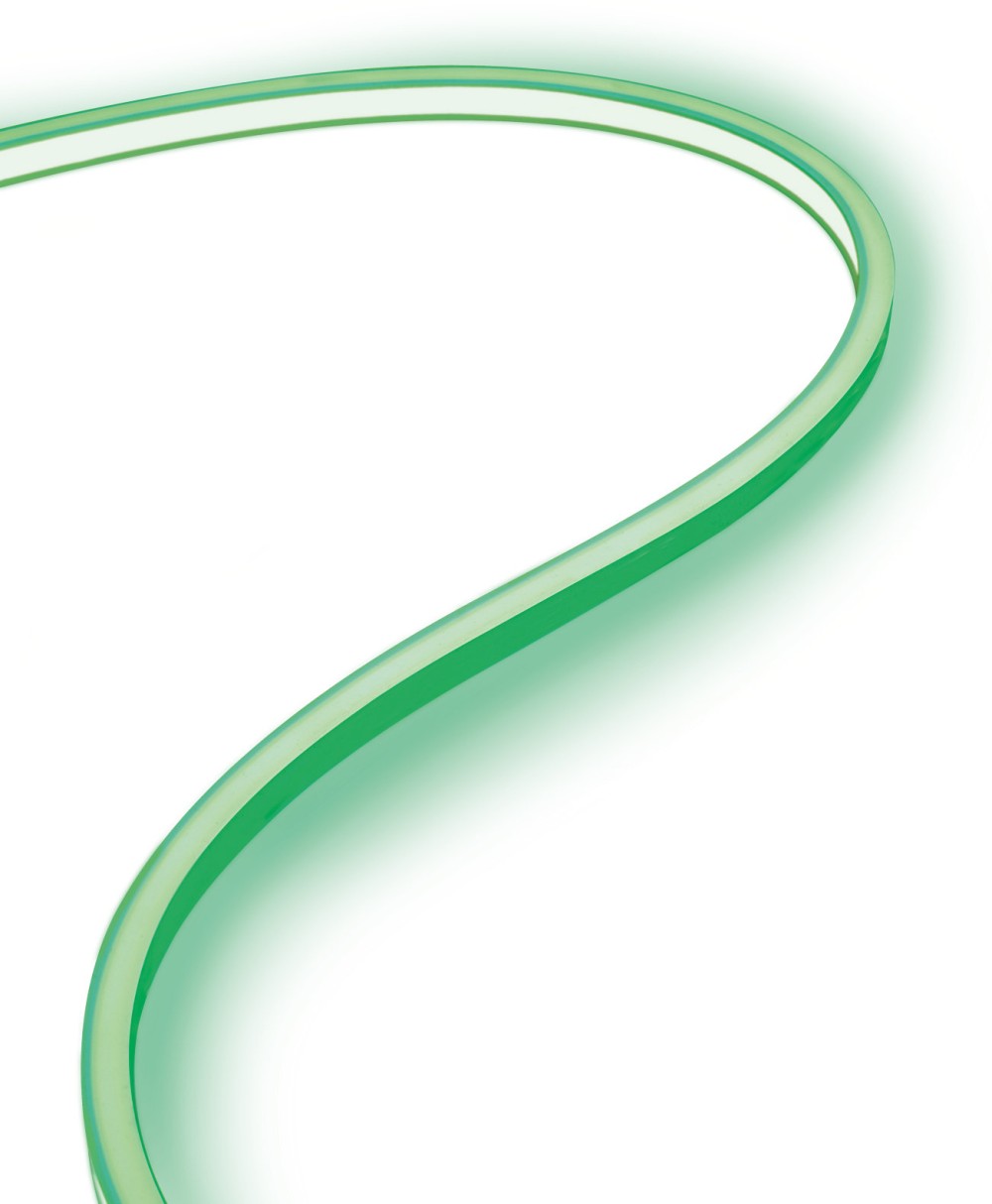

LINEARlight FLEX DIFFUSE Top Monochrome, LFD400MT-G1-GR-06 72W 24V Green 285 lm

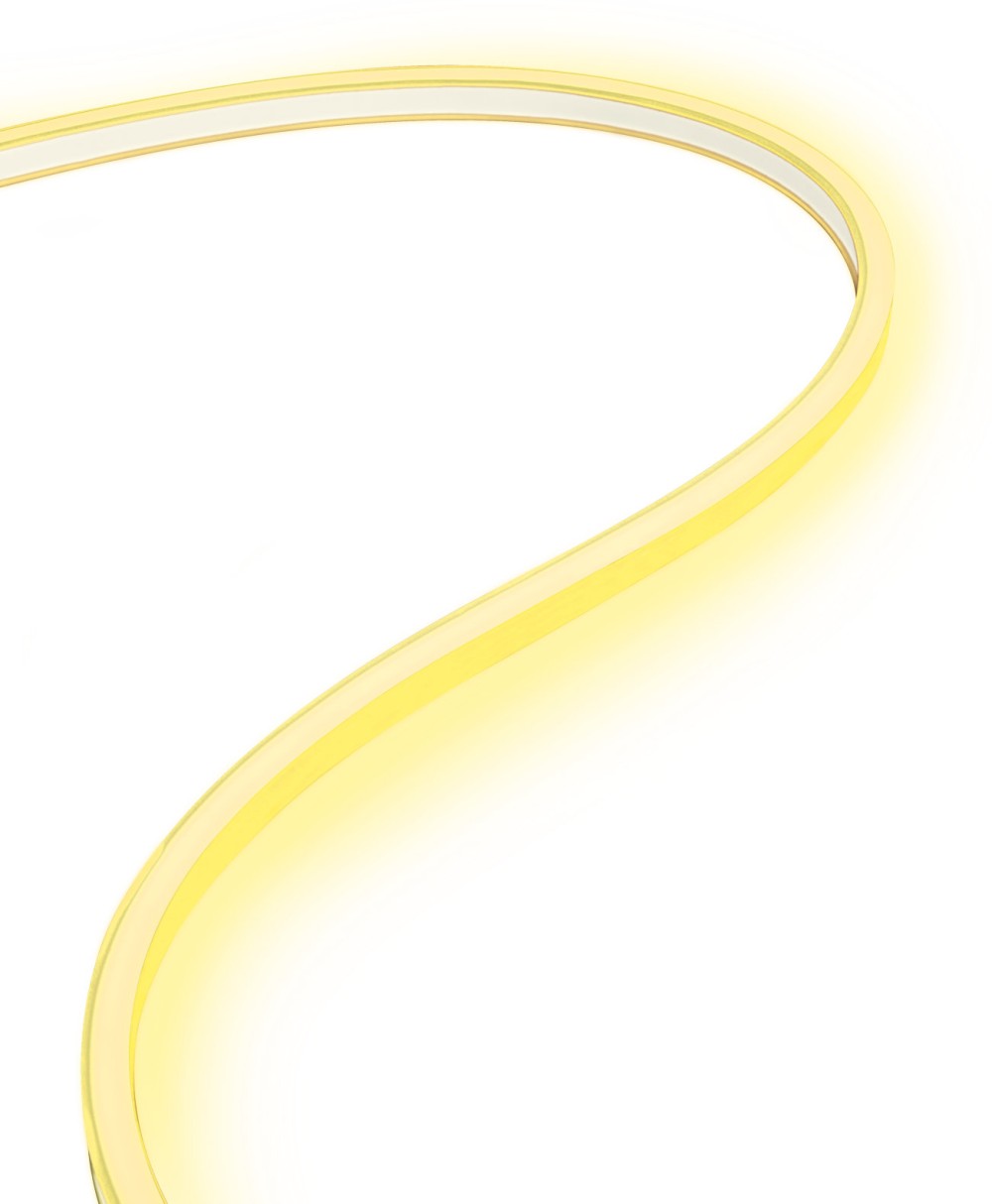

LINEARlight FLEX DIFFUSE Top Monochrome, LFD400MT-G1-YE-06 72W 24V Yellow 162 lm
LINEARlight FLEX DIFFUSE Top Monochrome, LFD400MT-G1-OR-06 72W 24V Orange 175 lm
