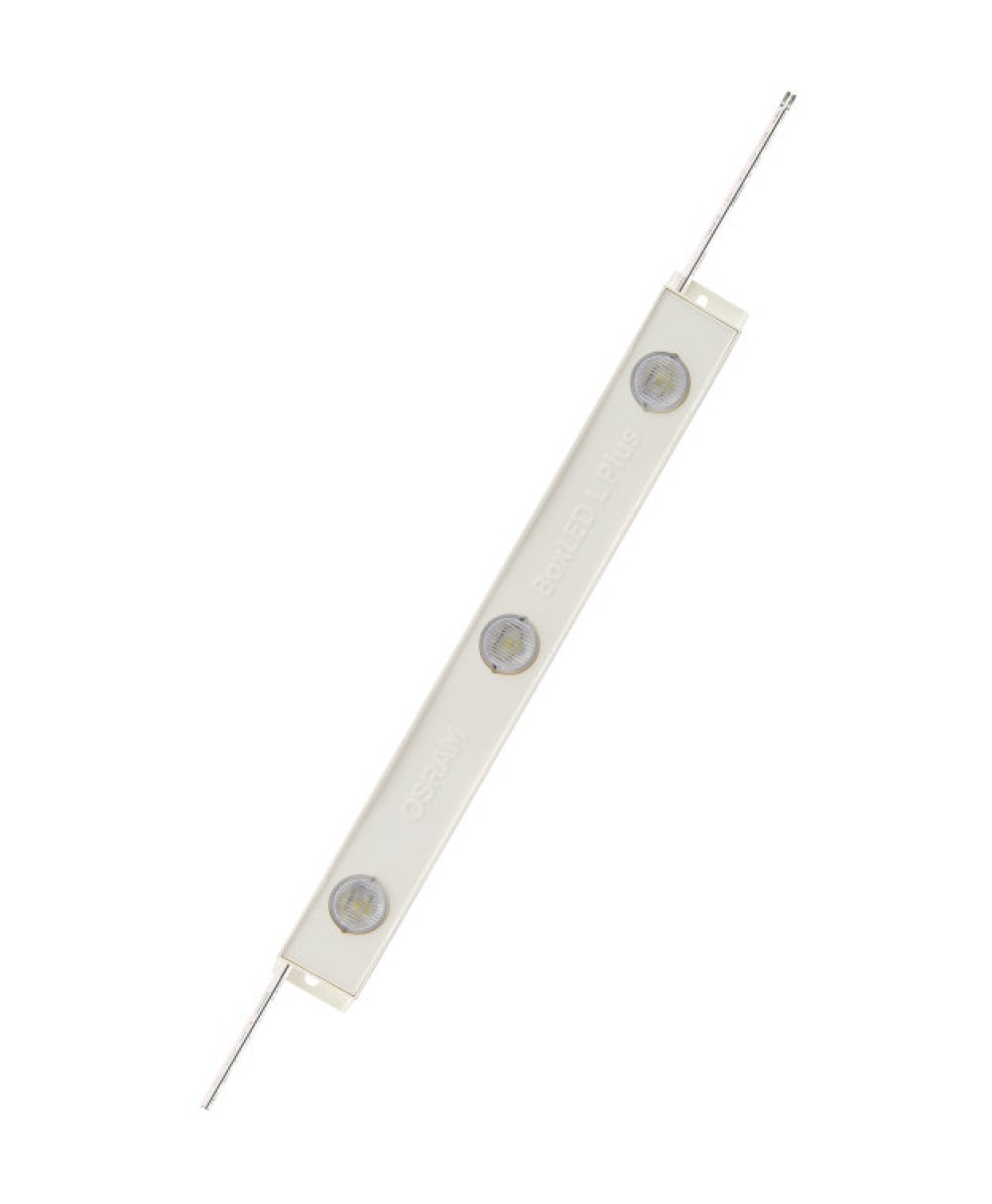

BOXLED L PLUS G3

EAN: BOXLED L PLUS G3

Sales unit
  • LED chain comprising 10 LED modules connected by flexible cables
Product features
  • Connected with flexible cables
  • Type of protection (modules): IP66/IP68
  • Consistent white light: < 3 SDCM
  • CE marked, ENEC certified, UL recognized component
Product benefits
  • Elliptical Optics (close beam angle to deliver perfect light reflection inside a lightbox)
  • Click and Play: quick and easy click-in of the LED modules, no tools needed
  • Dimming capability: 1…10 V, DALI and DMX methods
  • Very long lifetime: up to 50,000 h (L70/B50)
  • 5 year guarantee
Areas of application
  • Permanent outdoor use in enclosed light boxes
  • Signage and illuminated advertising
  • Illumination of single and double-sided light boxes
  • Wallwashing, cove lighting
Equipment Accessories
  • Several types of OPTOTRONIC 12 V LED drivers available
  • Mounting profile BX-MP
Family data sheet View downloads

Products

Product Color rendering index Ra Color temperature Luminous flux Data sheet
BX-L-PL 765 G3 60W 12V ≥70 6500 K 530 lm
BX-L-PL 840 G3 60W 12V ≥80 4000 K 620 lm

Downloads

Data sheets, brochures and technical information
