BOXLED ECO M PLUS G3
EAN: BOXLED ECO M PLUS G3
Sales unit
Family data sheet
View downloads

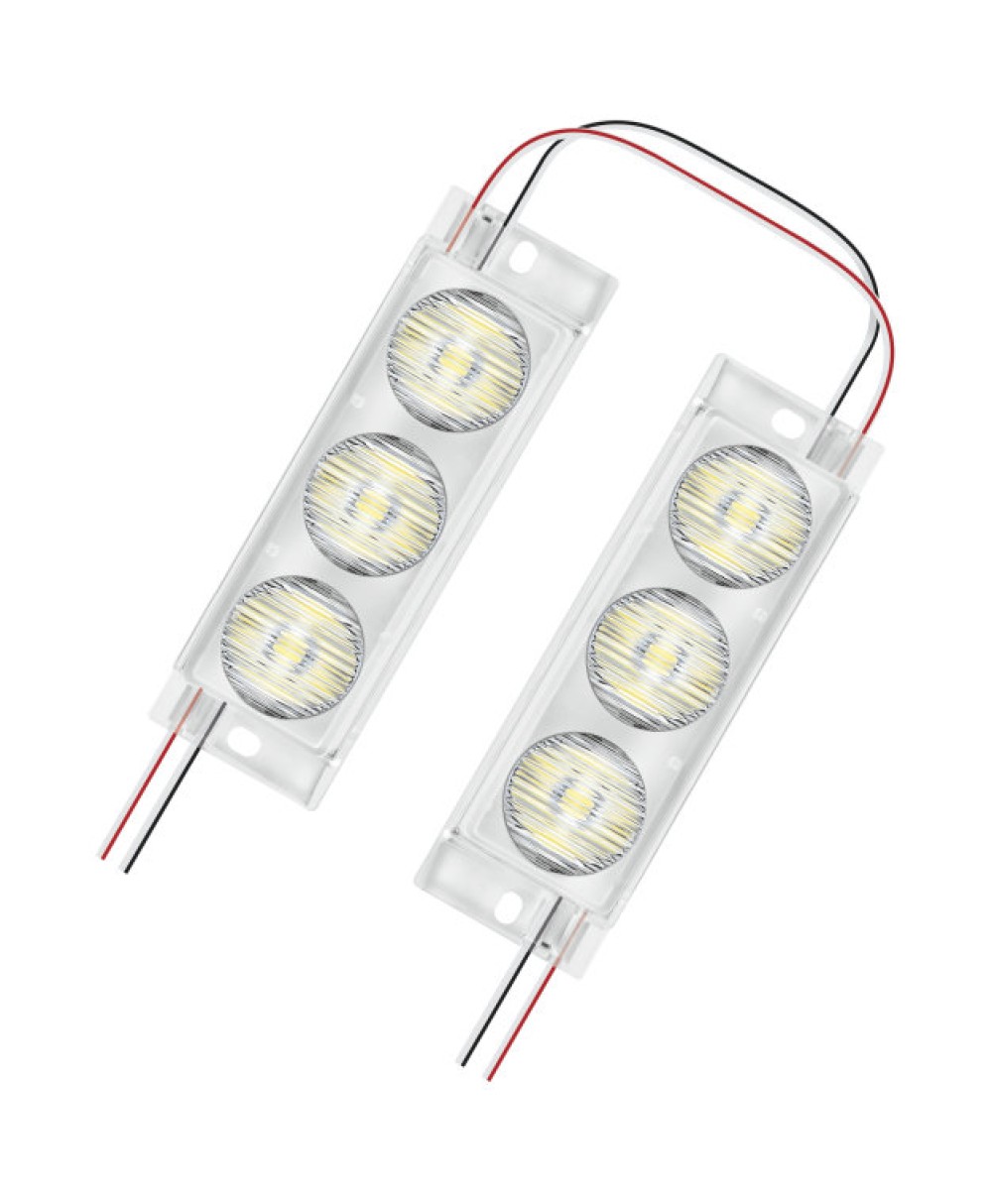

- LED chain comprising 32 LED modules connected by flexible cables
- Connected with flexible cables
- Type of protection (modules): IP66
- Consistent white light: < 3 SDCM
- CE marked, ENEC certified, UL recognized component
- Elliptical Optics (close beam angle to deliver perfect light reflection inside a lightbox)
- Click and Play: quick and easy click-in of the LED modules, no tools needed
- Dimming capability: 1…10 V, DALI and DMX methods
- Very long lifetime: up to 35,000 h (L70/B50)
- 5 year guarantee
- Permanent outdoor use in enclosed light boxes
- Signage and illuminated advertising
- Illumination of single and double-sided light boxes
- Wallwashing, cove lighting
- Several types of OPTOTRONIC 12 V LED drivers available
- Mounting profile BX-MP
Products
| Product | Color rendering index Ra | Color temperature | Luminous flux | Data sheet |
BX-ECO-M-PL 830 G3 24V
|
80 | 3000 K | 327 lm | |
BX-ECO-M-PL 840 G3 24V
|
80 | 4000 K | 327lm | |
BX-ECO-M-PL 865 G3 24V
|
80 | 6500 K | 315 lm |
